Holley 112-585 LS 95mm TB w/cable drive and taper

Name: Holley 112-585 LS 95mm TB w/cable drive and taper
Brand: Holley
SKU: 425112585
Price: 659.95 USD
Availability: InStock

Write a Review

Ask a Question

$659.95

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before September 28th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

LQ4, LQ9, LS1, LS2, LS6, LY6, Anodized, Black

See more details

Key Specs

MFG. Part #	112-585
Brand	Holley

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Holley 112-585 Details

Holley's BILLET LS Throttle Bodies are the BIGGEST BORE (in the 90 to 95mm category) - MOST FEATURE LOADED available. Holley went back to the drawing board and built the ultimate air valve for your LS engine! This all new design boasts a 95 millimeter bore and a low RPM drive friendly taper. Innovative features like Idle Bleed Adjustment, TPS CLOCKER, and closable PCV Passage Valve, make them the ultimate throttle bodies for ease of installation and tuning. Regardless of whether you have a turbo, supercharger, or a big cam engine sucking gulps of air, Holley's throttle bodies are maximized for your application. The barrier protection of the BLACK ANODIZED finish also offers up a modern tech look!

TPS CLOCKER (patent pending) allows the TPS to be rotated back into the ECU's required idle voltage range. Modified engines no longer suffer from problems related to TPS voltage!

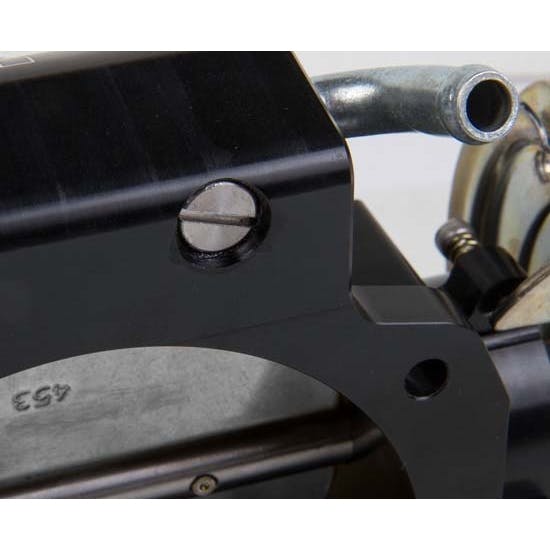

IDLE BLEED allows adjustment of your idle without affecting throttle position or TPS voltages at idle!
PCV PASSAGE VALVE closes to accommodate forced induction applications! No more plugging to block off PCV!
OVERSIZED BORE compared to others in the 90 to 95mm category
TAPERED TRANSITION eliminates low RPM drivability issues
PREMIUM BILLET BODY supports the high tolerance design and look your performance engine deserves!
BLACK ANODIZED FINISH for superior corrosion resistance and serious good looks
CRUISE CONTROL provision built in for cruise control cable
CABLE DRIVEN APPLICATION
Fits the following intake manifolds: Stock LS2, Stock LS3, Stock LS7, Holley LS Mid-Rise, Holley 95mm Hi-Ram, Fast LSX, Edelbrock Pro-Flo XT using 4 bolt TBs & Most other 90 through 95mm LS intakes using 4 bolt TBs

Charts

Installation Instructions (PDF)

Guides & Documents

Fuel Injection Throttle Bodies Instruction Sheet (425112585)

Choosing an Electronic Fuel Injection Retrofit for Your Street Rod or Muscle Car

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CARB warning

Holley 112-585 Specifications

KEY SPECS
MFG. Part #	112-585
Brand	Holley

GENERAL
Throttle Body Style	Multi-Port Injection (MPI)
Throttle Body Barrels	1-Barrel
Throttle Body Bore Size	95mm
Throttle Body Flange Type	LS 4-Bolt
Throttle Body Material	Billet Aluminum
Throttle Body Finish	Anodized
Color	Black
TPS Sensor Included	No
IAC Motor Included	No
Injectors Included	No
Gaskets Included	Yes
Hardware Included	No
Emission Code	3
GTIN Code	090127686539
Sold in Quantity	Each
