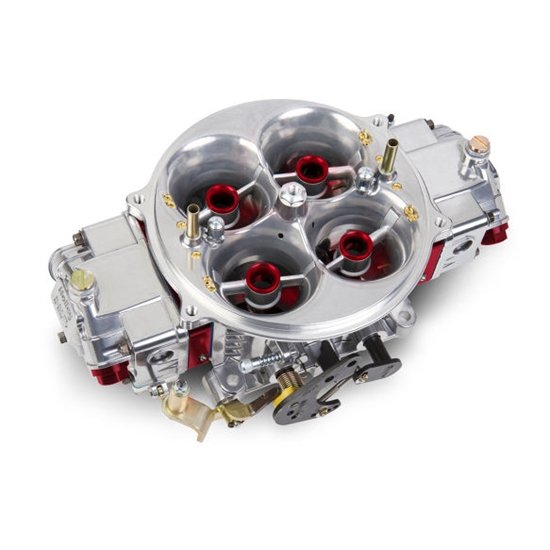

Holley 0-80910RD 1475 CFM Gen 3 Ultra Dominator Carburetor, 3 Cir

$199 Off

#425080910RD

Holley 0-80910RD 1475 CFM Gen 3 Ultra Dominator Carburetor, 3 Cir

Name: Holley 0-80910RD 1475 CFM Gen 3 Ultra Dominator Carburetor, 3 Cir
Brand: Holley
SKU: 425080910RD
Price: 1782.95 USD
Availability: Discontinued

Write a Review

Ask a Question

Discontinued

This item is currently not available

Shop all Carburetors

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, Polished

See more details

Key Specs

Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	No Choke
CFM Range	1,400-1,499 CFM
CFM	1475 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Holley 0-80910RD Details

The original Dominator® took carburetion to another level in 1969 when it was developed for NASCAR® racing. It has been refined over the years and has received its biggest change ever. The Gen 3 Ultra Dominator features a brand new main–body, brand new state–of–the–art calibrations, high volume fuel bowls and sizes up to 1475 CFM!The patent pending GEN 3 main–body is 5/16" taller than the previous generation! This new height allowed for larger radius air entries which were optimized using Computational Fluid Dynamics (CFD) software to deliver smoother flow into new fully machined, big bore venturii. The main-body also features an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship as well as an extended air cleaner flange for easy air scoop attachment when using the available air scoop adapter. The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12 hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screwsEach calibration has been dyno and track tested to deliver proven performance!

Features:

All aluminum construction saves 3.8lbs. over original models (28% weight savings)

Shiny with red anodized billet aluminum metering block and booster inserts

Designed for use on Drag race, Pro Street, or any high horsepower engines

Calibrations optimized for today's larger race engines and new fuels

Fully machined from venturii throat to throttle bore for predictable And repeatable performance

Integrated idle bypass valve allows for adjustment of idle while maintaining correct throttle plate to transfer slot relationship

12 hole billet booster inserts for superior atomization and crisp throttle response

New modified skirt boosters maintains strong fuel signal on large CFM carbs

Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors And idle feed restrictors)

Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle

Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling

Clear sight windows on both sides of bowls for easy and safe fuel level adjustments

Built in drain plug in front center of bowl provides easy access to empty contents of bowl

-8 (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side

Factory ready TPS mounting points for use with data acquisition systems (Holley TPS P/N 534-214 available)

Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools

Contoured hex head squirter screws for streamlined airflow

Fully adjustable stainless steel external linkage can be adjusted for 1:1 progressive, or soft progressive throttle activation. No linkage parts under the carburetor

100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Guides & Documents

Carburetors Installation Instructions (425080910RD)

Carburetors Technical Information (425080910RD)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Holley 0-80910RD Specifications

KEY SPECS
MFG. Part #	0-80910RD
Brand	Holley
Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	No Choke
CFM Range	1,400-1,499 CFM
CFM	1475 CFM
Carburetor Flange Type	4-Barrel Dominator
Finish	Polished
Material Type	Aluminum
Color	Red
Secondary Type	Mechanical
Fuel Inlet Type	Dual
New or Remanufactured	New
Throttle Linkage Type	Universal
Supercharged Application	No

GENERAL
Model	4500UHP
Booster	Annular Billet Insert
Number of Circuits	3
Emission Code	3
Throttle Bore	2.350 inch
Venturi Diameter	2.105 Inch
Bolt Hole Pattern	5.375" x 5.375"
Carburetor Height	3.5
Primary Power Valve	5.5 Hg
Primary Jet Size	98
Secondary Jet Size	108
Primary Discharge Nozzle Size	0.042 in.
Secondary Discharge Nozzle Size	0.042 in.
Notes	3-Circuit metering, 2.105 in. venturii, 2.350 in. throttle bore. Billet aluminum red anodized metering blocks. -8AN O-ringed inlet threads. Come standard with -8AN o-ring to -6AN male adapter and -8AN plug. Can be plumbed from either side. Holley Ultra Dominator race carburetors are for race applications only and are not designed or suggested for street use. Ultra Dominator carburetors do not provide attachment points for street transmissions, vacuum outlets or stock throttle linkage and cables.
GTIN Code	090127684689
Sold in Quantity	Each
