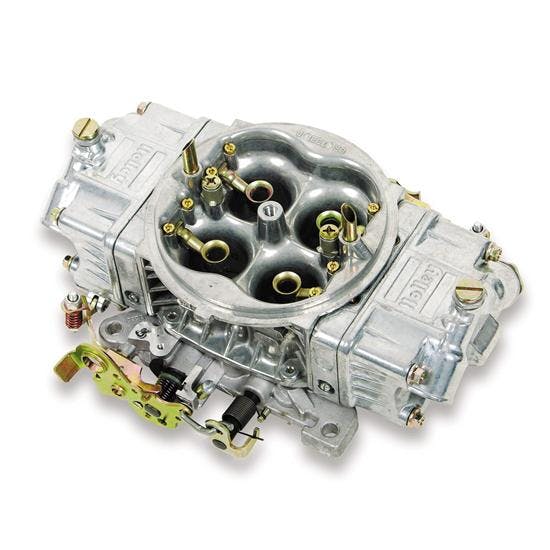

Holley 0-80576S 750 CFM Supercharger 4 Barrel Carburetor
Discontinued
This item is currently not available
Shop all Holley 4150HP 4-Barrel Carburetors
Key Specs
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 700-799 CFM |
| CFM | 750 CFM |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyHolley 0-80576S Details
Holley 0-80576S Details
This four barrel carburetor is intended for use with superchargers, and have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. Without this external referencing, the power valve would be "reading" the supercharger boost pressure, which has no bearing on the engine load.
- Model 4150HP design
- Designed for use on the Weiand 6-71 & 8-71 superchargers
- Four-corner idle system
- Replaceable air bleeds
- Dual 30cc accelerator pumps
- Shiny Finish
- Mechanical secondary
- Boost referenced power valve
- Throttle lever cut off for clearance on a sideways application
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Holley 0-80576S Specifications
Holley 0-80576S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 0-80576S |
| Brand | Holley |
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 700-799 CFM |
| CFM | 750 CFM |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Finish | Shiny |
| Material Type | Aluminum |
| Secondary Type | Mechanical |
| Fuel Inlet Type | Dual |
| New or Remanufactured | New |
| Supercharged Application | Yes |
| GENERAL | |
| Booster | straight |
| Bolt Hole Pattern | 5.160" x 5.625" |
| GTIN Code | 090127619391 |
| Sold in Quantity | Each |
