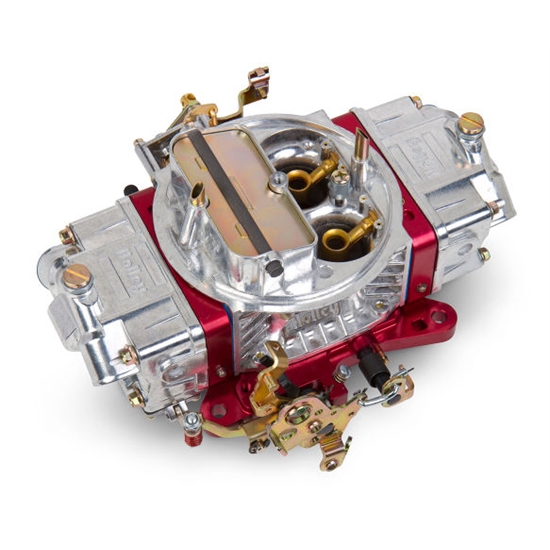

Holley 0-76751RD 750 CFM Ultra Double Pumper Carburetor, Manual Choke
Holley 0-76751RD 750 CFM Ultra Double Pumper Carburetor, Manual Choke
Holley

|

#425076751RD

Holley 0-76751RD 750 CFM Ultra Double Pumper Carburetor, Manual Choke

  • Has a shiny base with red anodized billet aluminum metering blocks/base plate for good looks and true gasket sealing
  • The Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
  • Includes a manual choke (Cable driven, hand operated) for precise cold start control
See More

Discontinued


This item is currently not available

Shop all Carburetors

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 750 CFM CFM

  • Has a shiny base with red anodized billet aluminum metering blocks/base plate for good looks and true gasket sealing
  • The Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
  • Includes a manual choke (Cable driven, hand operated) for precise cold start control
  • Features mechanical secondaries for awesome tire turning performance
  • A 4 corner idle allows you to precisely control your idle system
See more details

Key Specs

Carburetor Barrels4-Barrel
Fuel TypeGasoline
Choke TypeManual
CFM Range700-799 CFM
CFM750 CFM
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Holley 0-76751RD Details

ULTRA light Aluminum construction for 43% weight savings ULTRA shiny Tumble polished finish holds shine longer ULTRA strong Billet metering blocks & base plates ULTRA cool Red anodized billet aluminum metering blocks and base plate ULTRA easy Built in sight window for simple float adjustments ULTRA fast High-performance fuel curves Holley Double Pumper® carburetors are a perfect performance upgrade for hot street cars and race vehicles. Double Pumper carburetors are an American icon when it comes to performance carburetors. From their roots as the premier carburetor on many factory muscle cars to powering thousands of vehicles across the finish line, the Double Pumper is a great choice whether you are burning up the street or the quarter mile. The Ultra Double Pumper Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor. The new Ultra Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction; anodized billet aluminum metering blocks and base plate; 4 corner idle for precise idle control; dual accelerator pumps for additional fuel under initial acceleration; mechanical secondaries for great performance; clear fuel level sight plugs for easy, no mess fuel level adjustments; Ford automatic transmission kickdown for use on popular Ford transmissions; four vacuum ports for all necessary vacuum accessories; and manual choke for easy, fast cold start-ups. The clean, polished look coupled with Red metering blocks and throttle body will certainly set your ride apart whether you are at the show or track.

  • Shiny with red anodized billet aluminum metering blocks/base plate for good looks and true gasket sealing
  • Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
  • Manual choke (Cable driven, hand operated) for precise cold start control
  • Mechanical secondaries for awesome tire turning performance
  • 4 corner idle allows you to precisely control your idle system
  • Built in, clear fuel level sight glass for easy, no mess fuel level adjustments
  • Aluminum construction for a 43% weight savings
  • Ford A/T kickdown
  • Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
CARB warning

Holley 0-76751RD Specifications

KEY SPECS
MFG. Part #0-76751RD
BrandHolley
Carburetor Barrels4-Barrel
Fuel TypeGasoline
Choke TypeManual
CFM Range700-799 CFM
CFM750 CFM
Carburetor Flange Type4-Barrel Square Bore
FinishShiny
Material TypeAluminum
ColorRed
Secondary TypeMechanical
Fuel Inlet TypeDual
New or RemanufacturedNew
Supercharged ApplicationNo
GENERAL
Model4150
BoosterDown Leg
Emission Code3
Throttle Bore1.688 inch
Vacuum Ports1 timed (spark) port, 2 full, and 1 PCV port
Bolt Hole Pattern5.160" x 5.625"
GTIN Code090127683880
Sold in QuantityEach
