Overall Benefit: In a word, "handling". While installing a Mustang II can look like a lot of work, in reality, the improved handling and ride quality are worth the effort. Combine that with improved stopping ability due to numerous brake options and it becomes more a question of “Why wouldn’t you?”. The independent suspension will give you a much better ride because there is double the suspension travel. A stock axle will give you maybe 2-1/2” of total travel vs. a Mustang II which will give you about 4-1/2”- 5” of travel. There are multiple spring rates available to accommodate varied applications and the rack and pinion steering is much more responsive than a standard steering box.

Drop: This varies and is dependent on application and options. Most kits drop the vehicle by 3-4”. Drop spindles and running lower profile tires than stock also adds to the amount of drop that can be achieved.

Track Width: You may want to mount custom wheels to your Mustang II conversion and determining proper track width for your application is essential for figuring correct backspacing and overall ride stance. Standard wheel base is 56-1/2” with a 60” version available for trucks. The various options for brake kits will vary this somewhat and some kits can add roughly 2” to the overall track width. Narrowed arms are available to move the wheel in by 5/8” on each side. See the link below for various track widths with different options.

Mustang II Track Width Options (PDF)

Economy or Deluxe?: Deluxe style crossmembers come with all welds ground for a smooth finish while Economy style crossmembers feature unground welds.

Assembly Notes: Either manual or power steering can be used with these crossmembers. The passenger side mount has a slot that will take the later model power rack. With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack.

Rack mounts are incorporated into the crossmember design and rotate the rack back 20° to get the input shaft lower. Stock, manual, power racks, or later model Mustang II or T-Bird power racks can be used. The rack is positioned so the bellows will clear most aftermarket full A-Arms. When using crossmembers with our "power" steering rack, you may also need (2) rack spacers (9101023). (These spacers are included with our Mustang II suspension kits.)

The holes for the lower control arms are 1/2″ (stock). If you will use tubular lower A-Arms instead of the stock lower arms, the lower pivot holes will have to be drilled out to 5/8″. Lower control arm pivot tubes and gussets are NOT included.

These crossmembers will work with stock control arms. If used with stock arms, these will require strut rods and strut mounts for installation. Speedway crossmembers DO NOT include strut rod mounting brackets. We recommend either our offset or no-strut control arms or the tubular strut rod (91034322).

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

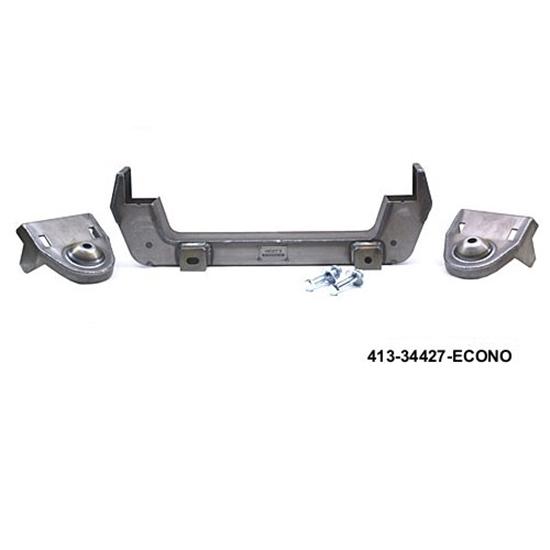

Heidts Mustang II crossmembers for 1949-54 Chevy passenger cars offer you the choice of Deluxe (welds ground) or Economy (unground welds). The Chevy models have frames and fenders which lend themselves nicely to Mustang front end conversion, without changing the critical geometry. Like Heidts Ford kits, Chevy kits do not bumpsteer at all. Chevy kits come with a step-by-step, fully-illustrated instruction booklet to ensure that your installation goes as easily as it should! Correct design results in correct camber action – and no bumpsteer.

Longer tie rod ends aren’t used – ever!
Mounting points of all control arms match the original Ford design
Factory anti-drive built right in
1949-1954 Chevy passenger car frames
Heidts crossmembers offer you the choice of Deluxe (welds ground) or Economy (unground welds)
Constructed of 7-gauge steel
Mustang II cross members using stock spindles will drop the stock ride height 3-4”
Built-in Anti-Dive is all fitted to your frame…No Grinding Required! Nothing to measure or trim…It’s All Done!
One-Piece Shock Cups are T.I.G. welded in place and have anti-dive built in. First class, for your car.
Vertical Inner Uprights. This is the strongest design available, with twice the weld area. This will keep your frame from twisting!
Main crossmember made from only 2 formed pieces for maximum strength and accurate fit.
Crossmember and Spring Towers precut and pre-welded to fit your frame…Nothing to Measure!
Lower control arm pivot tubes and gussets are NOT included
Works with both manual or power rack and pinions

For a LARGER selection at a LOWER price, see Speedways collection of mustang II crossmembers.

Choose from the crossmembers below and add to an IFS kit to get a "hub to hub" front suspension.

Note: Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these crossmembers to fine tune your final ride height up to 2".

Note: When using this crossmember with our "power" steering rack, you may also need (2) rack spacers (9101023). (These spacers are included with our Mustang II suspension kits.)

Item Details

1949-54 Chevy Car
Complete installation may require you to purchase corresponding a-arms, shocks, springs, brake kit, spindles, and steering rack and pinion

Charts

413-34427 Crossmember Installation Instructions (PDF)

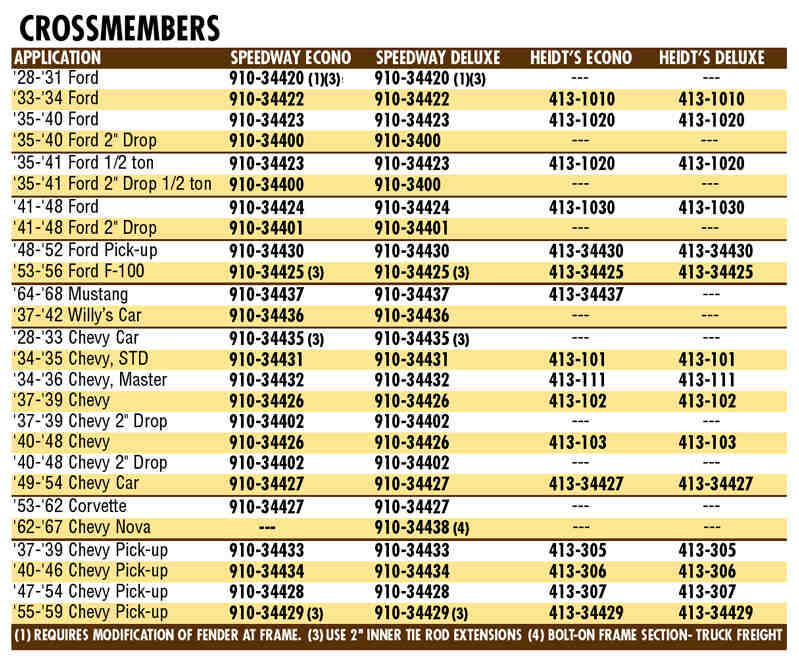

Mustang II Crossmember (GIF)

Guides & Documents

Crossmembers Installation Instructions (41334427)

Crossmembers Technical Information (41334427)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Model to see
Brand	Heidts
Position	Front
Crossmember Type	Mustang II
Crossmember Style	Boxed
Attachment Style	Weld-on

GENERAL
Steering System Compatibility	Manual/Power Rack and Pinion
Control Arm Compatibility	Tubular or Stock
Tie Rod Extensions Required	No
Material Type	Steel
Material Gauge	7-gauge
Finish	Natural
Ride Height (w/Stock Spindles)	3" to 4" Lowered
Material Thickness	0.18"
Sold in Quantity	Kit
Notes	Includes crossmember and shock cups.
GTIN Code	887753175458
