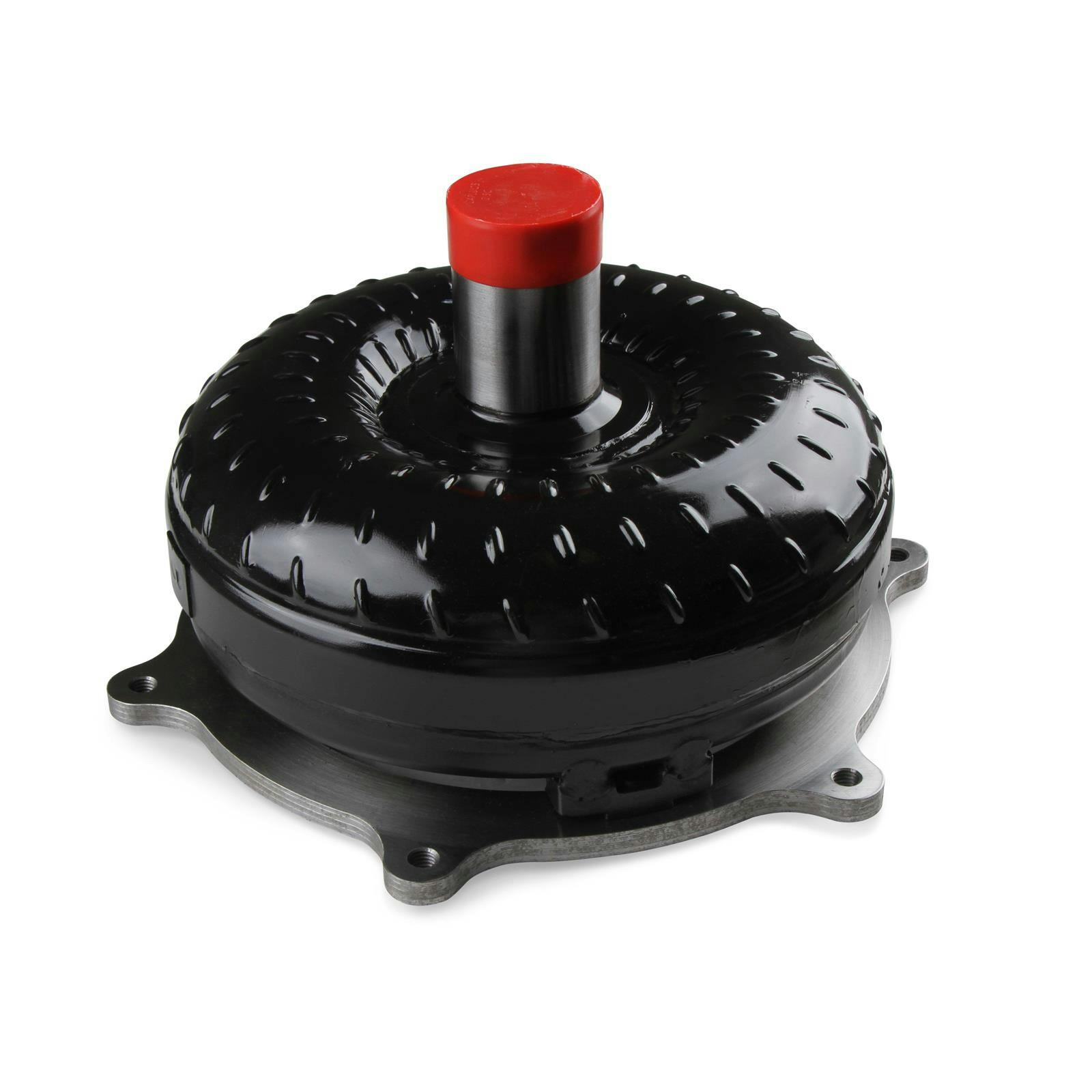

Hays 97-1K24F Twister Full Race Torque Converter 6L80E, 2400-2800

$157 Off

#425971K24F

Hays 97-1K24F Twister Full Race Torque Converter 6L80E, 2400-2800

Name: Hays 97-1K24F Twister Full Race Torque Converter 6L80E, 2400-2800
Brand: Hays
SKU: 425971K24F
Price: 1699.95 USD
Availability: InStock

Write a Review

Ask a Question

Stall Speed:

2400-2800

2800-3200 3200-3600 3600-4200

$1,699.95

/each

Factory Shipped

$1,856.95

Save $157.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

6L80E, 35 Input Spline Quantity, Lockup Compatible

See more details

Key Specs

MFG. Part #	97-1K24F
Brand	Hays
Input Spline Quantity	35
Lockup Compatible	Yes
Stall Speed (RPM)	2400-2800

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Hays 97-1K24F Details

Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos. They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.

Features:

All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower

Features a custom anti-balloon plate designed to stop potential torque converter ballooning

Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers

State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature

Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality

All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency

Heavy duty Torrington bearings are used for greater strength and durability

Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications

Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.

Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions

Industry leading Tech Support Team is available to provide assistance with stall speed selection

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Hays 97-1K24F Specifications

KEY SPECS
MFG. Part #	97-1K24F
Brand	Hays
Input Spline Quantity	35
Lockup Compatible	Yes
Stall Speed (RPM)	2400-2800

GENERAL
Anti-Ballooning Plate	Yes
Balanced	Yes
Crank Pilot Diameter	1.703"
Furnace-Brazed	No
Hardware Included	No
Torque Converter Bolt Circle	11.500 in.
GTIN Code	090127062876
Sold in Quantity	Each
Overall Diameter	9.6"
Torque Converter Use	Race

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2007-2015 Cadillac Escalade

2007-2015 Cadillac Escalade ESV

2007-2013 Cadillac Escalade EXT

2006-2009 Cadillac XLR

2009-2013 Chevy Avalanche

2010-2015 Chevy Camaro

2011-2017 Chevy Caprice

2006-2014 Chevy Corvette

2009-2020 Chevy Silverado 1500

2019 Chevy Silverado 1500 LD

2014-2017 Chevy SS

2015-2019 Chevy Suburban

2016-2017 Chevy Suburban

2009-2014 Chevy Suburban 1500

2009-2019 Chevy Tahoe

2008-2019 GMC Sierra

2007-2019 GMC Sierra 1500

2007-2019 GMC Yukon

2015-2019 GMC Yukon XL

2007-2014 GMC Yukon XL 1500

2008-2009 Hummer H2
