$216 Off
$216 Off
|
#91735433
$1,070.00
/each
In Stock
$1,286.00
Save $216.00
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Single Pass Radiator Style, Aluminum, 2 Row Quantity
| MFG. Part # | 7-70094 |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Both Sides |
Need help?
855.313.9176Quick and Easy Returns

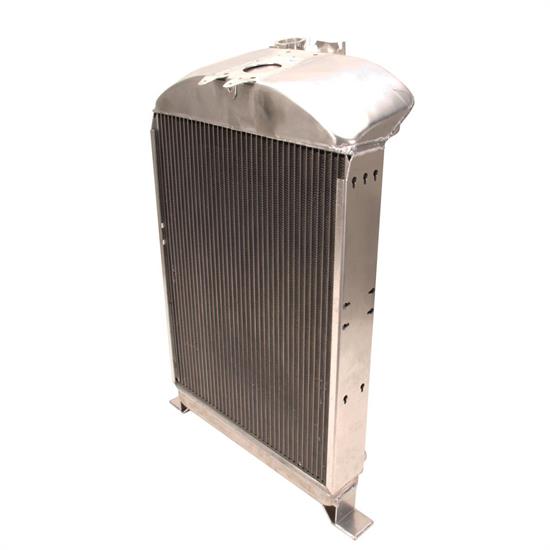

Return PolicyGriffin Aluminum radiators give superior cooling over a brass/copper radiator. Features 2 rows of 1.5" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator. These radiators are designed for use on 1933-34 Ford Chassis eqipped with a Ford Flathead engine.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article.Radiator Cooling Performance.

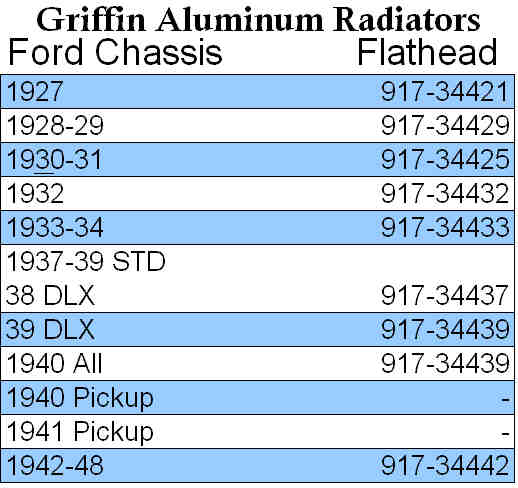

Charts
| KEY SPECS | |
|---|---|
| MFG. Part # | 7-70094 |
| Brand | Griffin Radiators |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Both Sides |
| Outlet Location | Both Sides |
| Row Quantity | 2 |
| Tube Size | 1.25" |
| Overall Width Range | 17.00" to 17.99" |
| Overall Width | 17.38" |
| Overall Height Range | 26.00" to 26.99" |
| Overall Height | 26.88" |
| Overall Thickness | 3" |
| Core Width Range | 22.00" to 22.99" |
| Core Width | 22" |
| Core Height Range | 17.00" to 17.99" |
| Core Height | 17.375" |
| Core Thickness | 2.69" |
| Finish | Natural |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| Inlet Size | 1.75 |
| Outlet Size | 1.75 |
| Radiator Cap Included | No |
| GENERAL | |
| Sold in Quantity | Each |
| GTIN Code | 766897316326 |
| Color | Silver |
| Fan Included | No |
2.5
2 Reviews
Customers have noted several issues with the product's design and quality. Certain features such as the lower necks, width, and side mount setup appear to be incorrectly sized, leading to fitting problems. Users reported that the filler neck is restrictive and the placement of the drain is inconvenient. Some customers felt that the machining was not as precise as they expected at this price point, with the mounting brackets on top seeming crude. Despite these negative comments, the product was still deemed a better option over cheaper alternatives. The product appears to need design improvements for increase in user satisfaction.
2.5
2 reviews
5
0
4
1
3
0
2
0
1
1
Filter by Ratings
Not an exact fit by any means. Terrible design
1.0
10 months ago
Steve
Missouri
34 ford coupe flathead v8. I would buy a cheap Chinese unit before ever buying this again. Lower necks are 1-1/4" to low and not angled. Width is 1/2" narrower and the goofy side mount setup was designed by a 9 yr old. Filler neck is ridiculously restrictive when filling. Air trapped and takes forever to fill. Fill neck is 2 inches below top of tank. No way to mount the radiator mascot in the Factory position. NOTE*** the radiator cap is now on an extension under the hood . There is no provision for mounting the radiator mascot through the grill top. The upper mounts are horrid to deal with. They are threaded with a number 10 machine screw instead of a quarter inch bolt like Factory. The hood hinge upper mount is not even close to fitting the holes without elongating. The lower drain is too close to the hose to use the drain valve they supplied. I work in restoration and have installed numerous Model A radiators. Whoever designed this has never worked on a Model A. I've had less issues modifying cheap Chinese radiators to fit our model A rally cars
Would Not Recommend
Would have been a 5 but some of the workmanship
4.0
8 years ago
Clyde 28075
Charlotte NC
Verified
This is a nice exact replacement for fit in my 33 but some of the workmanship especlty the mounting brackets on top are just bent crude pieces where the hood supports go could be a lot nicer if it was a billet CNC piece welded on there instead of that twisted bent up bracket this was not a cheap part over 900 for this kind of expecting little better workmanship from Griffen little refinement and some TLC this would have got 5 stars
Would Recommend
Showing 2 of 2 reviews
2 Questions • 2 Answers
Does this radiator fit a 33 Ford Tudor Sedanthat has the aggled grill out at the bottom will this radiator fit the stock grill shell
by clyde
• 8 years ago
1 answer
View Answer
How can you attach the original radiator cap to this radiator?
by none
• 11 years ago
1 answer
View Answer
2 of 2 questions shown
1933-1934 Ford 1/2 Ton Pickup
1933-1934 Ford Model 40
1934 Ford Model 40 A
1933 Ford Model 46
1933-1934 Ford Sedan Delivery
