$266 Off

Griffin 7-70077 Deluxe Flathead V8 28-29 Ford Aluminum Radiator

$266 Off

#91735529

Griffin 7-70077 Deluxe Flathead V8 28-29 Ford Aluminum Radiator

Has a built-in HD automatic transmission oil cooler
The hood support brackets are included
Has the necessary brackets on the side for grille shell

$1,321.00

/each

In Stock

$1,587.00

Save $266.00

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

Has a built-in HD automatic transmission oil cooler
The hood support brackets are included
Has the necessary brackets on the side for grille shell
Includes brackets on top for support rods
This model does not comes with a "dummy" filler neck

See more details

Key Specs

MFG. Part #	7-70077
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Both Sides

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Griffin Radiators 7-70077 Details

Griffin Aluminum radiators give superior cooling over a brass/copper radiator. This deluxe model features 2 rows of 1.25" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator. The deluxe model can handle all of your extreme cooling needs.

Built-in HD automatic transmission oil cooler
Hood support brackets are included
Brackets on side for gille shell
Brackets on top for support rods
No "dummy" filler neck

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article.Radiator Cooling Performance.

Charts

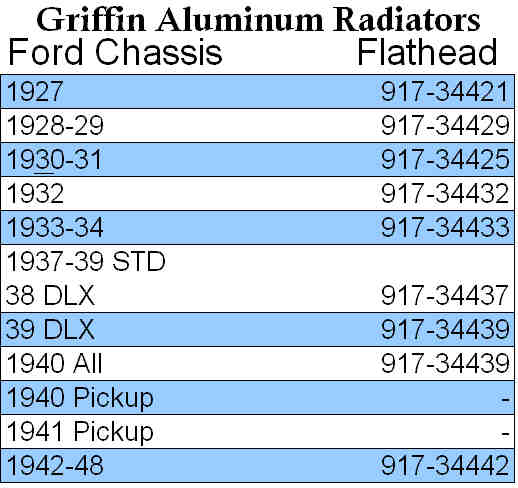

Griffin Flathead Radiator Application Chart (GIF)

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Radiators Technical Information (91735529)

Radiators Buyers Guide (91735529)

Griffin Radiators 7-70077 Specifications

KEY SPECS
MFG. Part #	7-70077
Brand	Griffin Radiators
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Both Sides
Outlet Location	Both Sides
Row Quantity	2
Tube Size	1.25"
Overall Width Range	22.00" to 22.99"
Overall Width	22"
Overall Height Range	25.00" to 25.99"
Overall Height	25.22"
Overall Thickness	3"
Core Width Range	20.00" to 20.99"
Core Width	20"
Core Height Range	20.00" to 20.99"
Core Height	20"
Core Thickness	2.69"
Finish	Natural
Cooling Fan	Not Included
Transmission Cooler	Yes
Shroud Included	No
Inlet Size	1.75
Outlet Size	1.75
Radiator Cap Included	No

GENERAL
Sold in Quantity	Each
GTIN Code	766897316241
Fan Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Will this radiator work on a 1929 roadster with a crate 350? If not, can you recommend one? Thanks!

by Rat Rod Ben

• 11 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1928-1929 Ford Model A

1928-1929 Ford Sedan Delivery
