GM 5-Position Tilt Steering Column, 30" w/2.5" Drop Mount

Steering Column

• 2-inch OD column housing, accepts any 2-inch column mount or drop
• Overall length from end of bell to tip of steering shaft is 30-inches
• Five position tilt mechanism with 30 degrees of total adjustment
• Integrated GM style self-canceling turn signal switch with 4-way hazards
• GM style 10-pin 3-7/8-inch wiring plug connects directly to most GM and aftermarket wiring harnesses
• Aftermarket true 1-inch DD output shaft uses commonly available aftermarket U-joints or rag joints
• Accepts any 1969 to 1994 GM steering wheel or GM steering wheel adapter
• Rich chrome plated housing compliments any interior
• Includes chrome plated turn signal lever, tilt lever, and hazard knob
• GM style universal column will fit most any application when used with vehicle specific or universal mounting brackets

Enjoy the Drive Once Again

In the muscle car heyday, a tilt steering wheel was a scarce reality saved for luxury cars and exotics. If you did not fit well between the steering wheel and the seat tough cookies! It does not have to be that way today for your muscle car or street rod. Get behind the wheel and drive again in comfort with a Speedway Motors Universal GM Tilt Steering Column.

Do not let our product name scare you either! The "GM"is referring to the electrical connection type and steering shaft spline for the steering wheel. This column can just as easily fit into a Dodge, Ford, or any other project you may be building with just a little effort adapting the wiring to your vehicle and picking up a GM-specific steering wheel adapter for your aftermarket steering wheel of choice.

A Premium Tilt Column with All the Features You Want

Old tilt columns are just that-old! Do not waste your time in a salvage yard digging around for a steering column for your project that will undoubtably need a complete rebuild. Not to mention it most likely will be too long or too short for your application.

Using one of our universal tilt steering columns is the way to go. This is not just any old aftermarket steering column either. Manufactured with all new parts in a compact design, they will literally fit most anywhere. The small 2-inch diameter steering column tube and compact tilt head that is just 7-inches in length provides copious amounts of leg room while fitting nicely within most any dash.

The five-position tilt head allows 30 degrees of tilt, 20 degrees up and 10 degrees down from straight. This tilt function not only provides the perfect angle for personal driving comfort but can facilitate easier ingress/egress with a simple flick of the tilt lever. We also offer this column in a column shift version.

Details That Are an Industry Standard

We all have our favorite makes and models, but when it comes to tilt steering columns the 1969-1994 GM version takes top billing. These columns have been used as salvage yard retrofits for decades due to their wide fitment range, ease of availability, and huge aftermarket support for service replacement parts like turn signal switches, bearings, and more. So, when it was time for us to build our own universal tilt columns of course we kept ours true to these popular GM models.

Our tilt steering columnsfollow these 1969-1994 GM specifications for steering wheel spline, turn signal wiring, and more (making them a near-drop-in replacement for these years). We do upgrade the GM double-D (DD) steering shaft output from the OE .985 inches to a true 1-inch DD dimension for better compatibility with aftermarket U-joints and steering shaft components for connecting to your steering box or steering rack.

Installs Easily in Almost Anything with Four Wheels

Our Universal GM Tilt Steering Column arrives in a beautiful chrome plated finish ready to make your interior color scheme pop and ships with cleanly styled chrome-plated control levers for the turn signal switch, tilt mechanism, shifter, and hazard light switch. If you prefer, we offer our column in a plain steel version as well. The 2-inch OD column tube allows it to be easily secured to your dash using the original mount or a universal column mount. We offer upper and lower column mounts, column drops, and firewall supports to aid in your installation.

The standard GM steering wheel spline means any 1969-1994 GM steering wheel is a direct fit, or you can purchase a steering wheel adapter to aid in fitting your 3-, 5-, or 9-bolt wheel to your new column. Our steering wheel adapter buyer's guide will help you find the proper fit.

Our Universal Tilt Steering Column uses GM steering column wiring connectors. The standard 3-7/8-inch turn signal switch connector even uses stock GM wire color codes. This makes our column a direct plug-and-play electrical connection to millions of GM vehicles or just about any vehicle that has been upgraded with an aftermarket wiring harness. For non-GM vehicles with factory wiring, you can easily adapt your turn signal wiring by crimping on a new harness connector to match the OE Chevy steering column wiring connector.

If a fixed steering column is preventing you from enjoying your ride, then upgrade to our Universal GM Tilt Steering Column today and drive your vehicle in comfort. Your knees will thank you for it!

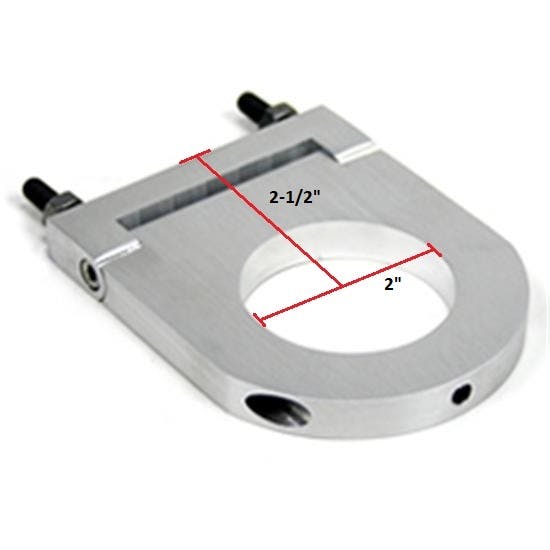

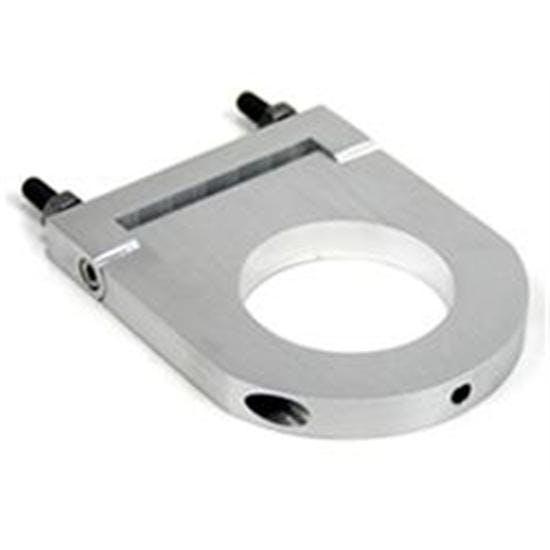

Steering Column Drop

As featured on Classic Truck’s Week to Wicked. Watch the transformation here!

Underdash Mounts are designed for several different applications. For these swinger style drops, the underdash nuts & bolts are included. Each swinger drop has two screws on either side that when unscrewed will detach the lower half of the mount to slide your column through. They have been buffed so well that there is no noticable gap between the two pieces! Each piece was manufactured in the United States by ididit. A hinge at the upper end permits an infinite choice of mounting angles. Polished aluminum construction.

• For tilt column
• 2 Inch diameter hole
• 2-1/2 Inch drop
• Two screws on either side will detach to slide your column through
• Polished aluminum construction
• Nuts & bolts are included

Note: Column drop lengths are measured from the centerline of the column to the column drop mount surface.

Note: Shift columns will require either a 2-1/4" hole or a 2" hole depending on the manufacturer.  Non-shift columns require a 2" hole.  Please double check application as necessary.

Black-ground for horn
Gray-Left front turn
Blue-right front turn
Brown-power feed from hazard flasher
Purple-power feed from turn flasher
Yellow-Left rear turn
Green-Right rear turn
White-Power feed from brake light switch
