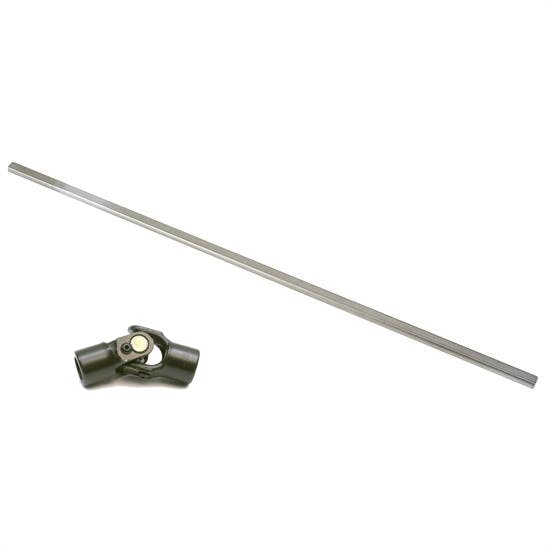

Fully Machined 36" DD Steering Shaft & 3/4 In DD to 1 In DD Joint

#9100874

Fully Machined 36" DD Steering Shaft & 3/4 In DD to 1 In DD Joint

3/4" Double D shaft machined the entire length of the shaft
Durable carbon steel machined to tight tolerances
Easily cut to desired length for custom steering design

$162.99

On Backorder

$165.98

Save $2.99

This part is Backordered. We estimate this item will ship on or before December 16th.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 36.00" Overall Length, Steel

3/4" Double D shaft machined the entire length of the shaft
Durable carbon steel machined to tight tolerances
Easily cut to desired length for custom steering design
U-joint features needle bearings
There is a 3/4" DD on one end and a 1" DD on the other

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9100874
Overall Length	36.00"
Material Type	Steel
End #1	3/4" DD
End #2	1" DD

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Steering Shaft and U-Joint Selection Guide

Installation Tips

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

1" DD on this U-joint is undersized and application specific to the 1" DD on an OEM GM column. Therefore, this unit is not applicable to an aftermarket 1" DD column such as the Ididt or Flaming River applications which measures out to the full 1.000" DD application. Aftermarket 1" DD column will use u-joint # 910-32401

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 9100874 Details

Steering Shaft

Speedway now offers a steering shaft which is 3/4" DD machined the entire length of the steering shaft. This makes it easier to set up your steering.The carbon steel steering shaft come in 36".

Machined to tight tolerances
Rugged, durable solid steel construction

Steering U-Joint

As featured on Classic Truck’s Week to Wicked. Watch the transformation here!

Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints are 3.875 inches long and 1.375 inches in diameter.

Full compliment bearings
Forged Vanadium steel yokes and u-joint
Highest quality for racing
Features needle bearing u-joints
U-Joint=3.875" L x 1.375" D
GM Column/Universal
3/4" Double D to 1" Double D

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the u-joint for your specific application.

Guides & Documents

Steering Shaft and U-Joint Selection Guide

Speedway Motors 9100874 Specifications

KEY SPECS
MFG. Part #	9100874
Brand	Speedway Motors
Overall Length	36.00"
Material Type	Steel
End #1	3/4" DD
End #2	1" DD

GENERAL
Overall Diameter	0.75"
Finish	Zinc Plated
Sold in Quantity	Kit
