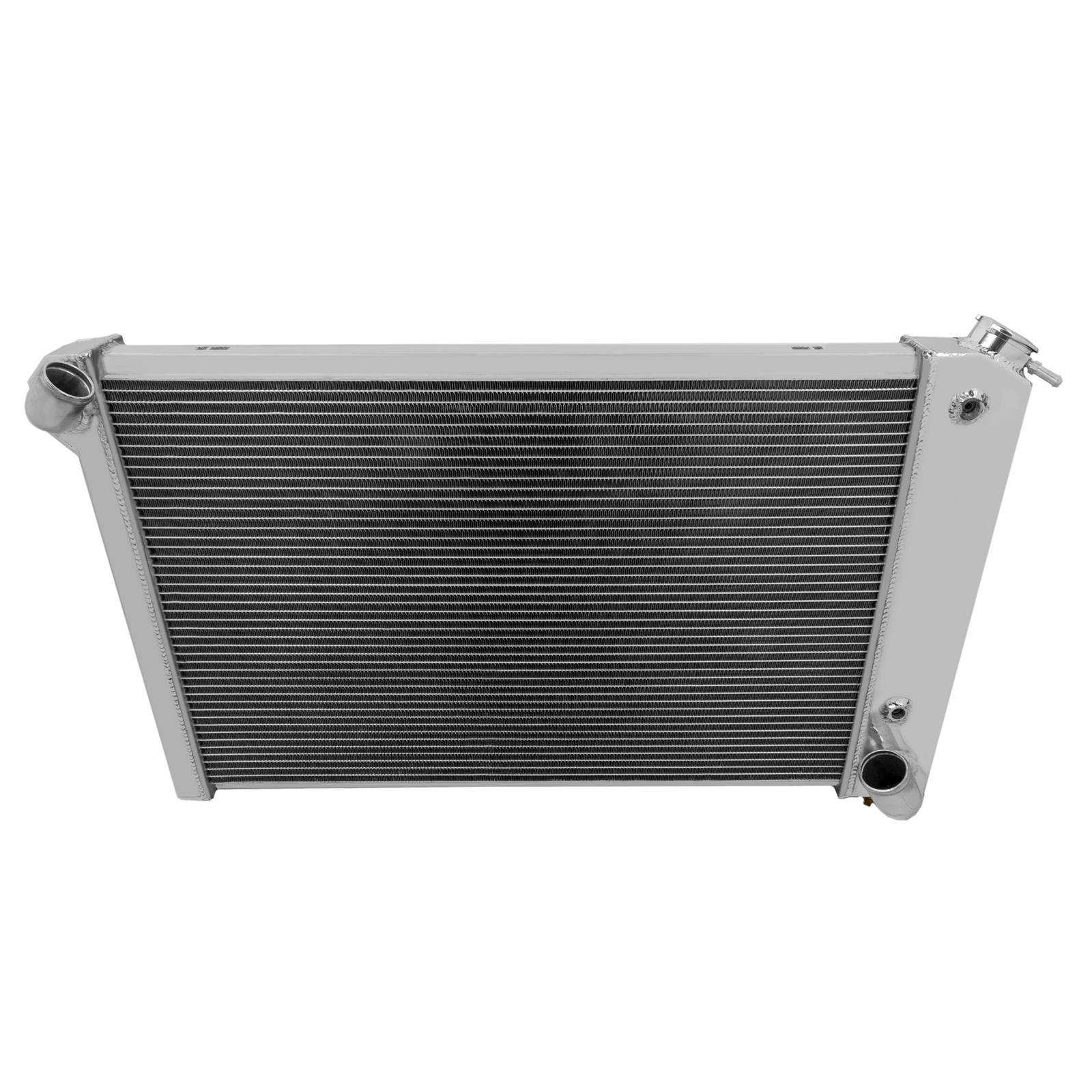

Frostbite FB245 Aluminum Radiator, 3 Row, 1969-72 Corvette 350
$491.95
/each
Factory Shipped
$553.95
Save $62.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFrostbite Performance Cooling FB245 Details
Frostbite Performance Cooling FB245 Details
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. When it comes to keeping your ride cool, Make it Frostbite!
- 100% TIG Welded (Brazed) seams
- Aircraft quality aluminum core, fittings, and tanks (Up to 30% weight savings)
- Billet Aluminum Filler Neck & OEM style Brass Petcock
- More cooling surface area (16 fins per inch) for more efficient cooling
- Custom Frostbite High Performance 16lb. Radiator Cap
- Polished Top and tanks for custom show appearance
- Applications supporting up to 1000+ horsepower
Charts
Guides & Documents
Frostbite Performance Cooling FB245 Specifications
Frostbite Performance Cooling FB245 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FB245 |
| Brand | Frostbite Performance Cooling |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Crossflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 3 |
| Tube Size | 0.69" |
| Overall Width Range | 31.00" to 31.99" |
| Overall Width | 31.63" |
| Overall Height Range | 20.00" to 20.99" |
| Overall Height | 20.5" |
| Core Width Range | 26.00" to 26.99" |
| Core Width | 26" |
| Core Height Range | 17.00" to 17.99" |
| Core Height | 17" |
| Core Thickness | 2.2" |
| Finish | Polished |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| GENERAL | |
| Inlet Size | 1.5 |
| Outlet Size | 1.75 |
| Fan Included | No |
| GTIN Code | 090127032060 |
| Sold in Quantity | Each |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1969-1972 Chevy Corvette
