Frostbite FB155 Aluminum Radiator, 4 Row, 1967-1972 Chevy/GMC Pickup

-6%

#425FB155

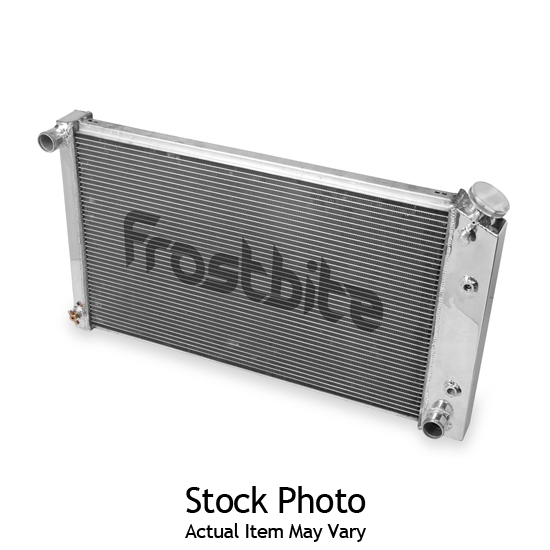

Frostbite FB155 Aluminum Radiator, 4 Row, 1967-1972 Chevy/GMC Pickup

Specifically designed for the 1967-1972 Chevy/GMC Pickup
Featured 100% TIG welded (brazed) seams
Has an aircraft quality aluminum core, fittings, and tanks

$699.95

/each

Factory Shipped

$749.95

Save $50.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Single Pass Radiator Style, Aluminum, 4 Row Quantity

Specifically designed for the 1967-1972 Chevy/GMC Pickup
Featured 100% TIG welded (brazed) seams
Has an aircraft quality aluminum core, fittings, and tanks
Includes a billet aluminum filler neck and OEM style brass petcock
Provides more cooling fins per inch for more efficient cooling

See more details

Key Specs

MFG. Part #	FB155
Radiator Style	Single Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper driver side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Frostbite Performance Cooling FB155 Details

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.

Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.

When it comes to keeping your ride cool, Make it Frostbite!

1967-1972 Chevy/GMC P/U V8 (283/307/327/350/396/402) (4-Row) equipped with 28" wide core

100% TIG welded (brazed) seams
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
Billet Aluminum Filler Neck and OEM style Brass Petcock
More cooling fins per inch for more efficient cooling
Custom Frostbite High Performance 16lb. radiator cap
Polished top and tanks for custom show appearance
4-Row Radiators supporting applications with 550-1000 horsepower
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
Manufacturer’s 1-year Limited Warranty

Application

1968-1972 Chevy K30 Pickup V8
1968-1972 GMC C15/C1500 Pickup V8
1968-1972 GMC C15/C1500 Suburban V8
1968-1972 GMC C25/C2500 Pickup V8
1968-1972 GMC C25/C2500 Suburban V8
1968-1972 GMC C35/C3500 Pickup V8
1968-1972 GMC K15/K1500 Pickup V8
1968-1972 GMC K15/K1500 Suburban V8
1968-1972 GMC K25/K2500 Pickup V8
1968-1972 GMC K25/K2500 Suburban V8
1968-1972 GMC K35/K3500 Pickup V8
1970-1972 Chevy Blazer V8
1970-1972 GMC Jimmy V8
1968-1973 Chevy C10 Pickup V8
1968-1973 Chevy C10 Suburban V8
1968-1973 Chevy C20 Pickup V8
1968-1973 Chevy C20 Suburban V8
1968-1973 Chevy C30 Pickup V8
1968-1973 Chevy K10 Pickup V8
1968-1973 Chevy K10 Suburban V8
1968-1973 Chevy K20 Pickup V8
1968-1973 Chevy K20 Suburban V8

Charts

Installation Instructions

Guides & Documents

Radiators Installation Instructions (425FB155)

Frostbite Performance Cooling FB155 Specifications

KEY SPECS
MFG. Part #	FB155
Brand	Frostbite Performance Cooling
Radiator Style	Single Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper driver side
Outlet Location	Lower passenger side
Row Quantity	4
Tube Size	0.69"
Overall Width Range	33.00" to 33.99"
Overall Width	33"
Overall Height Range	18.00" to 18.99"
Overall Height	18.5"
Core Width Range	28.00" to 28.99"
Core Width	28.25"
Core Height Range	17.00" to 17.99"
Core Height	17"
Core Thickness	2.75"
Finish	Polished
Cooling Fan	Not Included
Transmission Cooler	Yes
Shroud Included	No
Inlet Size	1.5
Outlet Size	1.75

GENERAL
Sold in Quantity	Each
GTIN Code	090127730188
Fan Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1969-1972 Chevy Blazer

1967-1973 Chevy C10

1967-1972 Chevy C10 Suburban

1967-1973 Chevy C20

1967-1972 Chevy C20 Suburban

1967-1973 Chevy C30

1967-1973 Chevy K10

1967-1973 Chevy K10 Suburban

1967-1973 Chevy K20

1967 Chevy K20 Panel

1967-1973 Chevy K20 Suburban

1968-1972 Chevy K30

1967-1972 GMC C15/C1500 Pickup

1968-1972 GMC C15/C1500 Suburban

1967-1972 GMC C25/C2500 Pickup

1967-1972 GMC C25/C2500 Suburban

1967-1972 GMC C35/C3500 Pickup

1970-1972 GMC Jimmy

1967-1972 GMC K15/K1500 Pickup

1967-1972 GMC K15/K1500 Suburban

1967-1972 GMC K25/K2500 Pickup

1967-1972 GMC K25/K2500 Suburban

1967-1972 GMC K35/K3500 Pickup
