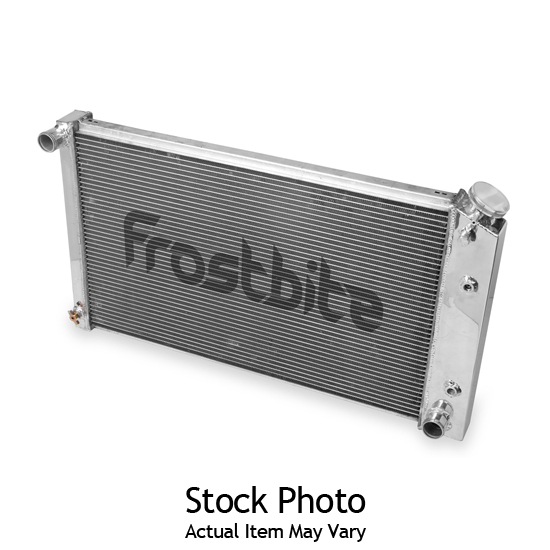

Frostbite FB148 Aluminum Radiator, 3 Row, 1967-1969 Camaro/Firebird V8

Frostbite FB148 Aluminum Radiator, 3 Row, 1967-1969 Camaro/Firebird V8
67-69 Chevy Camaro, 67-69 Pontiac Firebird, Single Pass Radiator Style, Aluminum, Polished
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Details
Radiator Style:
Single Pass
Radiator Flow Direction:
Crossflow
Material Type:
Aluminum
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
3
Tube Size:
0.69"
Overall Width Range:
27.00" to 27.99"
Overall Width:
27.50"
Overall Height Range:
18.00" to 18.99"
Overall Height:
18.50"
Overall Thickness:
2.75"
Core Width Range:
23.00" to 23.99"
Core Width:
23.00"
Core Height Range:
17.00" to 17.99"
Core Height:
17.00"
Core Thickness:
2.50"
Finish:
Polished
Cooling Fan:
Not Included
Transmission Cooler:
Yes
Shroud Included:
No
Inlet Size:
1.50
Outlet Size:
1.75
Fan Included:
No
Radiator Cap Included:
Yes
MFG. Part #:
FB148
GTIN Code:
090127729915
Sold in Quantity:
Each
Info
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.
Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.
When it comes to keeping your ride cool, Make it Frostbite!
1967-1969 Camaro/Firebird V8 (350/396/400/427) (3-Row) equipped with 30" wide core
- 100% TIG welded (brazed) seams
- Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
- Billet Aluminum Filler Neck and OEM style Brass Petcock
- More cooling fins per inch for more efficient cooling
- Custom Frostbite High Performance 16lb. radiator cap
- Polished top and tanks for custom show appearance
- 3-Row Radiators supporting applications with 450-750 horsepower
- Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
Application
1967-1969 Chevy Camaro V81967-1969 Pontiac Firebird V8
Charts
Important Messages
- This item ships directly from the manufacturer. It may take an additional 25 business days for Frostbite Performance Cooling to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
