#425FB101

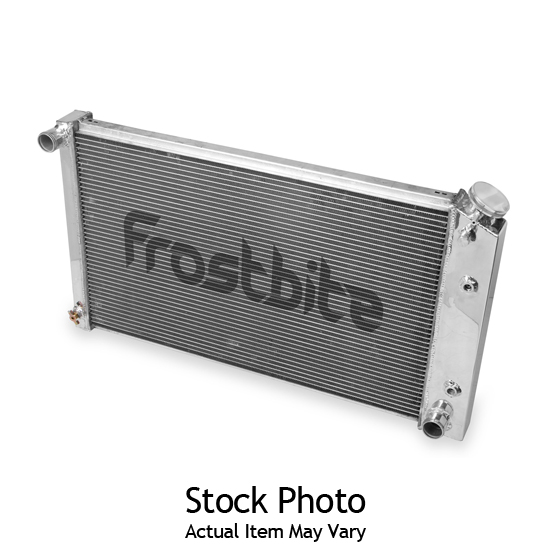

Frostbite FB101 Aluminum Radiator, 3 Row, 1947-1954 Chevy Pickup
$409.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 4th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Single Pass Radiator Style, Aluminum, 3 Row Quantity
See more details
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyFrostbite Performance Cooling FB101 Details
Frostbite Performance Cooling FB101 Details
Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.
When it comes to keeping your ride cool, Make it Frostbite!
1947-1954 Chevy P/U L6 (217/231/235/261) (3-Row)
- 100% TIG welded (brazed) seams
- Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
- Billet Aluminum Filler Neck and OEM style Brass Petcock
- More cooling fins per inch for more efficient cooling
- Custom Frostbite High Performance 16lb. radiator cap
- Polished top and tanks for custom show appearance
- 3-Row Radiators supporting applications with 450-750 horsepower
- Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
- Manufacturer’s 1-year Limited Warranty
Application
1954 Chevy 1500 216/235/261
Charts
Guides & Documents
Frostbite Performance Cooling FB101 Specifications
Frostbite Performance Cooling FB101 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | FB101 |
| Brand | Frostbite Performance Cooling |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 3 |
| Tube Size | 0.69" |
| Overall Width Range | 22.00" to 22.99" |
| Overall Width | 22.38" |
| Overall Height Range | 25.00" to 25.99" |
| Overall Height | 25.63" |
| Core Width Range | 19.00" to 19.99" |
| Core Width | 19.25" |
| Core Height Range | 20.00" to 20.99" |
| Core Height | 20.75" |
| Core Thickness | 2.2" |
| Finish | Polished |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| Radiator Cap Included | Yes |
| GENERAL | |
| Inlet Size | 1.50 |
| Outlet Size | 1.75 |
| Fan Included | No |
| GTIN Code | 090127729748 |
| Sold in Quantity | Each |
