Product Summary

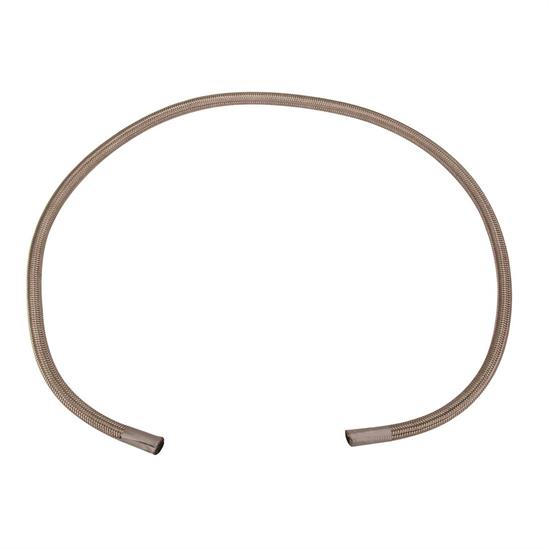

Universal Fit, -6 AN Hose Size, PTFE

  • P.T.F.E. construction make it a natural for all highly corrosive applications like automotive brake fluid
  • Specially designed to take high pressure and cycle over and over without failure
  • Sold in 20' roll, which is enough to cover most projects
  • Has a .312" nominal inside diameter and a -6AN size
  • Hose has a 2,500 psi. working strength and a 10,000 psi. burst pressure

Key Specs

MFG. Part #602006
BrandFragola
Material TypePTFE
Hose Length20 ft.
Hose ID0.31"

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

The properties of P.T.F.E. make it a natural for all highly corrosive applications like automotive brake fluid.  P.T.F.E. also works well for hot oil and power steering fluid.  These hoses will take high pressure and cycle over and over without failure, and they also are easily suitable for use with nitrous oxide.

P.T.F.E. powder is extruded into a smooth bore tube product.  The tube is then fed into a machine that weaves stainless wire into the familiar braided pattern.  The hose is inspected 100% and any flawed sections are discarded.

  • -6 AN
  • P.T.F.E. lined
  • .312" nominal inside diameter
  • Working pressure:  2,500 psi.
  • Burst pressure:  10,000 psi.
  • Minimum bend radius:  3"
  • 20' roll of hose

Application

Fluid Type:

  • Automatic Transmission Fluid
  • Brake Fluid
  • E85
  • Engine Coolant
  • Engine Oil
  • Gasoline
  • Methanol
  • N2O
  • Vacuum
  • Power Steering Fluid

Specifications

KEY SPECS
MFG. Part #602006
BrandFragola
Material TypePTFE
Hose Length20 ft.
Hose ID0.31"
GENERAL
Hose Size-6 AN
Outer BraidStainless
Pressure Rating2500 psi
Burst Pressure6000 psi
GTIN Code822320027396
Sold in QuantityEach
