Add to Cart
$1,499.99
Forged Street SB Chevy 400 Rotating Assembly, 6 In I-Beam Rods
Forged Street SB Chevy 400 Rotating Assembly, 6 In I-Beam Rods

Forged Street SB Chevy 400 Rotating Assembly, 6 In I-Beam Rods

400 Chevy Small Block V8, 400 mains Main Journal Style, 3.750" Engine Stroke, Dish Piston Style

0 Reviews | 4 Answered Questions
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Forged Street SB Chevy 400 Rotating Assembly, 6 In I-Beam Rods
Forged Street SB Chevy 400 Rotating Assembly, 6 In I-Beam Rods
Zoomed In Image
We estimate this item will ship on or before November 20th.
Part # 9151238
$1,499.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Item 1 of 1
Icon Chevy 400 Forged Pistons, Dish, 6.0 Rod
Icon Chevy 400 Forged Pistons, Dish, 6.0 Rod
Quantity: 1
Next
Add to Cart

Details

Main Journal Style:
400 mains
Engine Stroke:
3.750"
Connecting Rod Type:
I-Beam
Connecting Rod Length:
6.000"
Connecting Rod Material:
Forged 4340 Steel
Connecting Rod Weight:
605 grams
Connecting Rod Bolt Diameter:
7/16"
Piston Style:
Dish
Piston Material:
Forged Aluminum
Piston Weight:
463 grams
Piston Ring Style:
C
Crankshaft Material:
Forged 4340 Steel
Rear Main Seal Style:
2-piece
Wrist Pin Diameter:
.9272"
Wrist Pin Weight:
132 grams
Main Journal Diameter:
2.650
Rod Journal Diameter:
2.10"
Bearing Construction:
Bi-metal
Bearing Undersize:
Standard
Narrowed Bearing:
Yes
Coated Bearing:
No
MFG. Part #:
9151238
Sold in Quantity:
Kit

Info

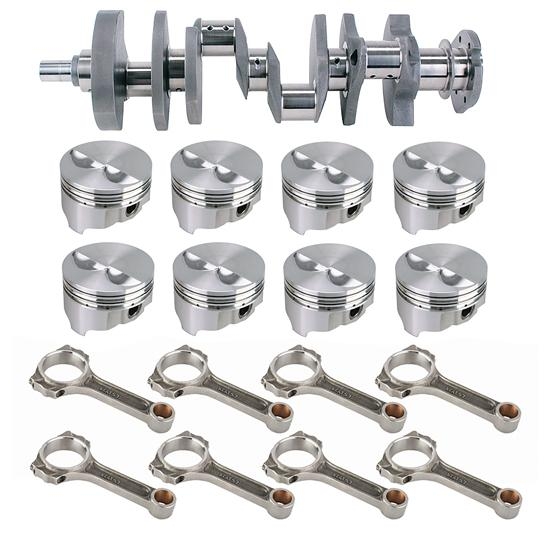

These rotating assembly engine rebuild kits are designed for street use and include Keith Black forged pistons, Scat 4340 Pro-Comp I-beam rods and a Scat 4340 forged crankshaft.

All Scat 4340 cranks are 2-piece rear main seal, internally balanced and weigh approximately 51-55 lbs.

These assemblies will require balancing either by us or your machine shop.  All kits can be internally balanced.

All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience!  A kit purchased with the optional balance job will ship in 24-48 hours.

Rings and bearings not included. Journals are standard size. Due to larger journal side radius on this aftermarket crankshaft, you must use Clevite H-series, King bearings or equivalent.

NOTE: Piston rings are not included and must be purchased separately.





Notes

Kit includes:

  • Scat 4340 Forged Steel Crankshaft
    • Straight shot and chamfered oil holes
    • Nitride hardened and shot peened
    • Lightening holes in all rod throws
    • Large radius on all journals
  • Scat Pro Comp 4340 I-Beam Rods
    • Stroker clearanced
    • ARP 7/16" cap screw bolts
    • Bushed pin
    • 6.0" rod: 629 grams
    • Crank pin: 2.100"
    • Wrist pin: .927"
    • B.E. width: .940"
    • Set of 8 rods
  • KB Signature Series Forged Pistons
    • Dished
    • 2618 aluminum alloy construction
    • T-6 heat treated
    • 4.000" bore pistons available in standard, .030, .040, or .060 sizes
    • 4.125" bore pistons available in standard, .030 or .040 sizes



Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Icon Chevy 400 Forged Pistons, Dish, 6.0 Rod
    Qty x 1
  • Scat 26000716 Small Block Chevy 4340 I-Beam Rods, 6.0 Inch, Bushed Pin
    Qty x 1
  • Scat 440050 400 Chevy 4340 Forged Crankshaft, 3.75 Stroke, 400 Main
    Qty x 1
  • King HP Series Chevy 350/400 Large Journal Engine Rod Bearings, Std
    Qty x 1
  • King HP Series Chevy 400 Large Journal Engine Main Bearings, Standard
    Qty x 1
