Ford/Mopar Remote Dual Oil Filter Relocation Kit
Many Engines, 3/4"-16 Thread Pitch
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Whether youre in need of an oil system that works with a tight engine compartment or you simply wish to upgrade your block mount oil filter housing, we have you covered with these remote bypass adapter kits from Speedway Motors.

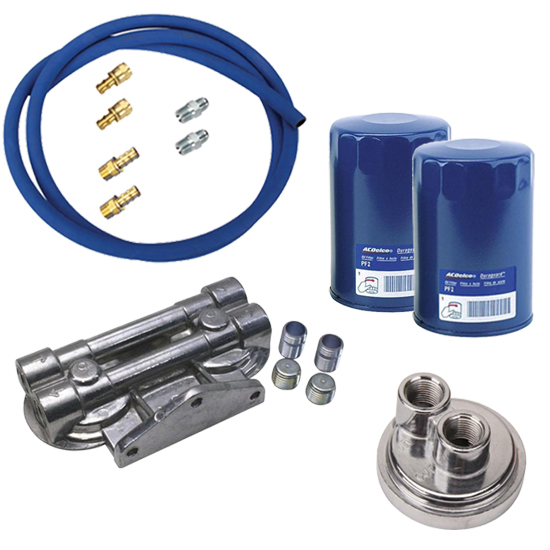

- (1) Ford/Mopar Spin-On Oil Filter Bypass
- (1) Neoprene Hose and Fitting Kit
- (1) Dual Remote Oil Filter Bracket, Horizontal Outlet
- (2) AC Delco PF2 Duraguard Engine Oil Filters
Spin-On Bypass Adapter
Remote bypass adapters replace the bolt-on oil filter housing or the spin-on oil filter. Adapters feature 1/2" NPT female inlet/outlet threads.
- Fits 3/4"-16 thread.
- Fits most Ford V8 & V6, Chrysler 6 & V8 and Imports.
- 2-1/2" O-ring included.
Neoprene Hose and Fitting Kit
Kit includes enough -8 AN push-on neoprene/rubber hose (1/2" I.D.) to run two 48" lines from your oil filter block adapter to your remote oil filter bracket. Also includes two 1/2" NPT hose ends, two -8 AN hose ends and two 1/2" NPT to -8 AN steel fittings.
- One 8 ft. hose length
- Two 1/2" NPT hose ends
- Two -8 AN hose ends
- Two 1/2" NPT to -8 AN fittings
Dual Remote Oil Filter Bracket
Get twice the filtration capacity of a single unit with this oil filter relocator. Aluminum construction with 1/2" NPT female inlet/outlet threads. Accepts most Ford filters with 3/4"-16 thread (Fram PH8 or HP1 filters).
- Horizontal hose inlet/outlet
- 1/2" NPT female hose inlet/outlet threads
- Spin-on type element
Engine Oil Filters
Protect your engine with this premium quality oil filter. Outstanding filter capacity, enhanced efficiency, consistent flow management and high-durability design help provide exceptional filtering performance.
- 98% single-pass efficiency at 25-30 microns
- Patented cellulose media traps particles 1/3 the width of a human hair
- Designed with 5x greater burst strength than most engine oil operating pressures
- Thread Size: 3/4"-16
- Diameter: 3.9"
- Length: 5
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Ford Spin-On Bypass AdapterPart # 7201013Qty x 1
Neoprene Hose and Fitting Kit for Remote Oil Filter, 48 InchPart # 7201048Qty x 1
Dual Horizontal Remote Oil Filter BracketPart # 7201030Qty x 1
AC Delco PF1218 Duraguard Engine Oil Filter, ChevyPart # 91015175Qty x 2
