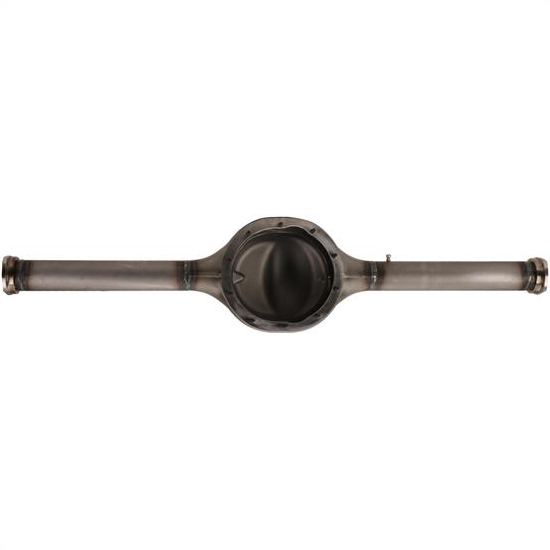

Ford 9 Inch Rear End Axle Housing, 54" Hub to Hub

Looking for a budget-friendly and rock-solid foundation for your custom rear suspension? Look no further. These fabricated steel Ford 9" rearend housings feature all-new components for maximum durability. This housing is pumpkin-centered, which will offset the pinion yoke about 1". This is done to make fabricating a triangulated 4-link system much easier. Simply weld on your preferred brackets and add the axle shafts and 3rd member of your choice (sold separately), and you have yourself a rolling chassis!

Total wheel-to-wheel mounting surface width is 54" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1" offset from center, requiring different length axle shafts. For this 54" housing you will need one 27-5/8" long axle and one 25-1/4" long axle. This housing includes (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member.

• New fabricated steel center section
• New 3" O.D. axle tubes w/ 3/16" wall thickness
• New billet steel "New Big Ford" style bearing ends (a.k.a. bearings w/ 2.50" axle shaft flange offset from housing flange)
• Assembled rearend measures 54" from hub-to-hub (a.k.a. axle flange face-to-face)
• Housing measures 49" from housing flange-to-housing flange
• Centered pumpkin w/ 1" offset pinion yoke
• Requires different length axle shafts, left/right
• Includes studs for 3rd member and T-bolts for bearing retainer plates
• 3rd member stud nuts/washers not included/available as # 919-0916
• Includes vent on driver side axle tube
• 3rd member sold separately
