Ford 46" Axle Front Steering & Brake Kit W/ Wilwood Calipers

Upgrade the steering and brakes on 46" Ford axles, saving time and money with this all inclusive bolt on kit
Chrome '28-'48, 4140 forged steel spindles provide beauty and strength over stock cast design with '37-'48 Ford kingpins pre-fit
11" vented rotors offer more rotational mass for increased stopping performance, your choice of 5 on 4-1/2" Ford or 5 on 4-3/4" Chevy bolt patterns

Caliper Type:

Wilwood D154

Bolt Pattern:

Select a bolt pattern

Steering Trad/crs:

Select a steering trad/crs

Finish:

Select a finish

Starting from

$1,101.99

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Upgrade the steering and brakes on 46" Ford axles, saving time and money with this all inclusive bolt on kit
Chrome '28-'48, 4140 forged steel spindles provide beauty and strength over stock cast design with '37-'48 Ford kingpins pre-fit
11" vented rotors offer more rotational mass for increased stopping performance, your choice of 5 on 4-1/2" Ford or 5 on 4-3/4" Chevy bolt patterns
D154 Wilwood calipers have a 2-1/2" bore and 7/16"-20 inlet for easy serviceability
Cross steering offers less bumpsteer, more comfortable steering column angle, frees up foot pedal / bellhousing room has an overall cleaner vehicle profile

See more details

Key Specs

MFG. Part #	Select Caliper Type, Bolt Pattern, Steering Trad/crs and Finish
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

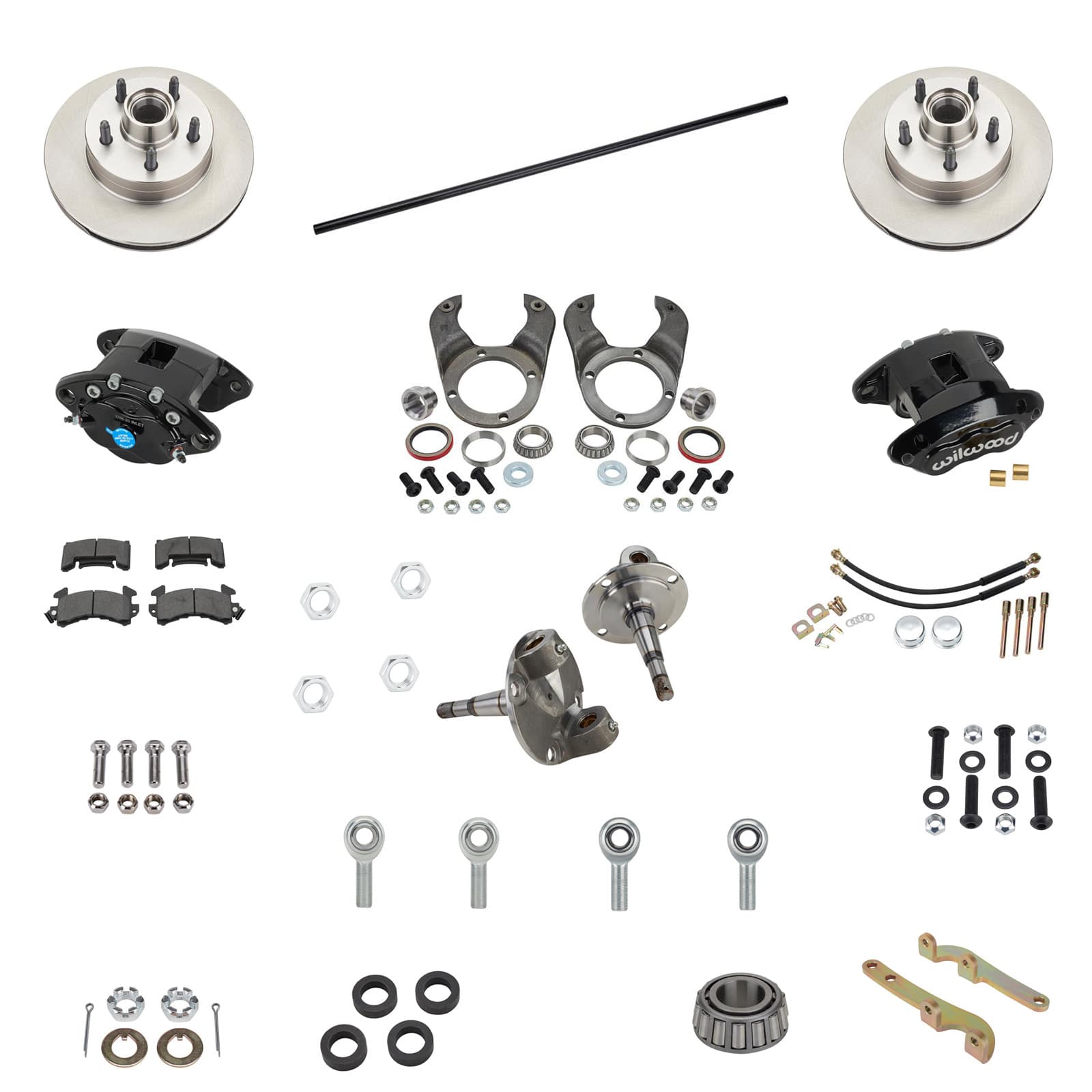

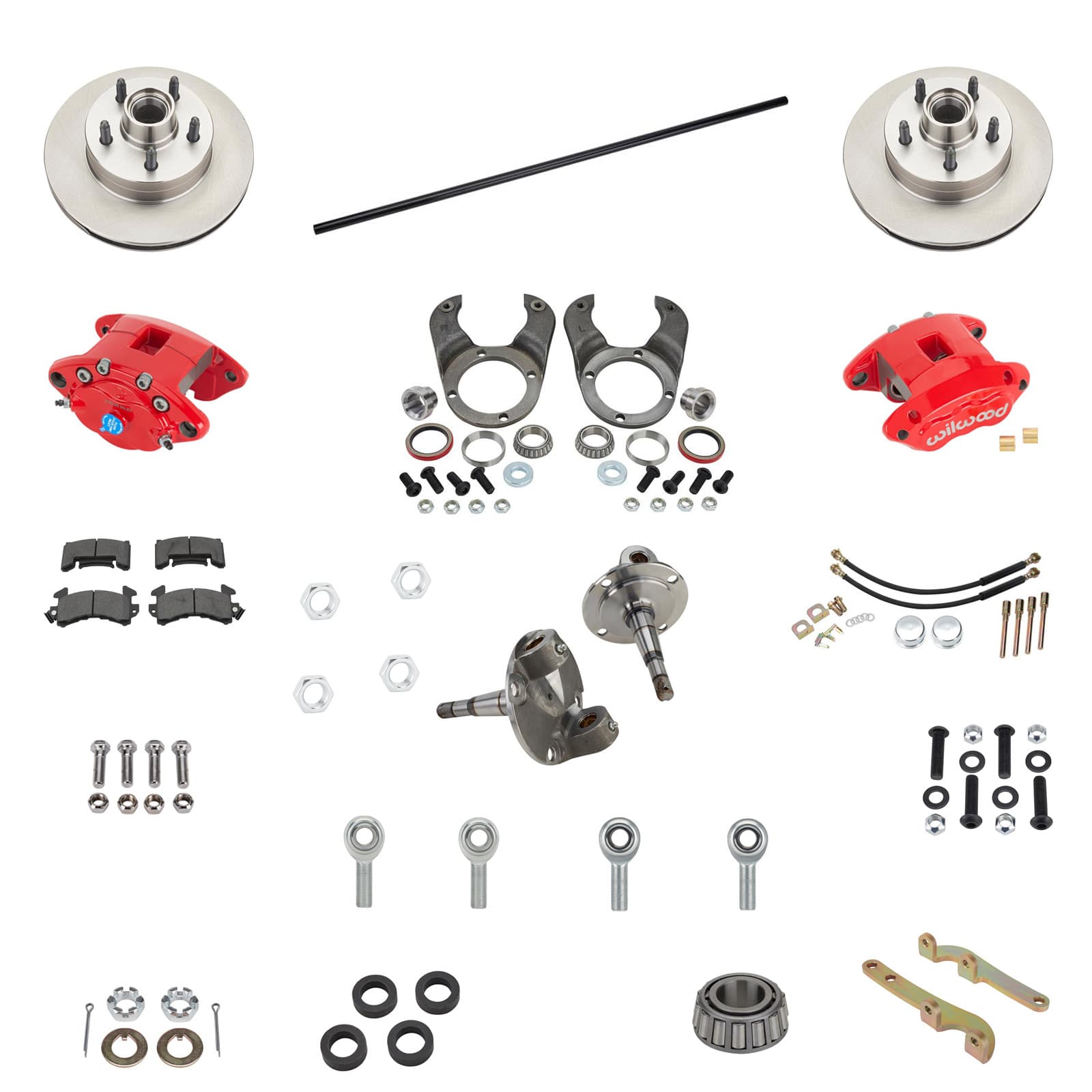

Speedways exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, rubber brake lines, spindles, dust caps, spindle nuts, AN3 caliper fittings, kingpins, flat plate steering arms, tie rod assembly and hardware.

For 46" kingpin-to-kingpin axles.
Traditional steering arm for left front wheel NOT included with Traditional steering kit.

Ford kit features:

Mr. Roadster 1928-48 Ford Spindles
- One piece forged 4140 steel
- Modeled after the 1937-41 round-back design
- Standard king pins fit to spindles
Speedway 11" Brake Kit
- 11" vented iron rotor, 1" thick
- 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- Hub flange (hat) diameter - 6-1/4"
- D154 2 Piston 7/16" Inlet Wilwood Calipers
- 7/16" banjo bolt to AN-3 line adapter kit
Traditional or Cross Steering Kit
- Flat plate steering arms
- 5/8" tie rod steering link
- 5/8" standard heim joint rod ends
- Seals-it 5/8" rod end seals

Learn how to properly Bed-In your brake pads by reading our tech article. Bedding-In Brake Pad Procedure.

Application

Ford 1928-48 spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle.
Chevy 1949-54 spindles are specifically designed for use on tube axles. A shorter, thicker axle stub makes this a slightly stronger spindle ideal for use with heavier street rods.

Charts

702-4475 Instructions (PDF)

Early Ford and GM Spindle Identification Chart (GIF)

910-32104 Instructions (PDF)

Spindle Identification Guide (GIF)

Measuring Guide for Tie Rod/Drag Link (GIF)

Steering Arm Ends Guide (GIF)

Cross Steering Guide (GIF)

Brake Pad Brand Guide (JPG)

Features

Cross Steering vs. Traditional Steering

Traditional steering provides an original, period look, but will only work in these applications:

Four bar setup with '68-'73 Mustang box
Split wishbone or hairpin radius rod with reversed Corvair or '48-'56 Ford Puckup steering box
Parallel Steering Set-Up Guide

Cross steering (using a Vega box) is the preferred method for nearly all cross spring, beam axle suspensions. Ford used this design from 1935-on.

Less bumpsteer
More comfortable steering column angle
Frees up foot pedal / bellhousing room
Cleaner vehicle profile
Cross Steering Guide

If you are building a hot rod just a little bit different than the next guy, you will probably need a special length tie rod or drag link sleeve. Sorry, no custom order chrome sleeves. Measurements are in assembled eye-to-eye lengths.

To order:

Use guide below to measure your finished length.
The part number and length you order will be 3" longer than the sleeve you receive. (I.E., if you order a 48" part number, you will receive a 45" long sleeve.) This is the difference in length required to give you the correct finished center-to-center measurement.
All sleeves will have internal RH thread in one end and LH thread in the other.

Measuring Guide for Tie Rod/Drag Link

Guides & Documents

Heim Joints and Rod Ends Technical Information (1750306)

Brake Caliper Brackets Installation Instructions (7024475)

Brake Caliper Brackets Technical Information (7024475)

Spindles Installation Instructions (91032104)

Spindles Technical Information (91032104)

Swedged Tubes Technical Information (91631)

Steering Arms Technical Information (91632029)

Disc Brake Pads Technical Information (9193381)

Brake Pad Identification and Friction Surface Options Explained

Spindles Technical Information (91032105)

Steering Arms Technical Information (91632020)

Steering Arms Technical Information (91632022)

Steering Arms Technical Information (91632028)

Specifications

KEY SPECS
MFG. Part #	Select Caliper Type, Bolt Pattern, Steering Trad/crs and Finish to see
Brand	Speedway Motors
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included
Spring Type	Not Included
Finish	Select Caliper Type, Bolt Pattern, Steering Trad/crs and Finish to see
Bolt Pattern	Select Caliper Type, Bolt Pattern, Steering Trad/crs and Finish to see
Rotor Diameter	11 Inch
Spindle Style	Ford Custom
Dropped Spindles	No
Dropped Axle	No
Dropped Control Arms	No
Spindles Included	Yes
Brakes Included	Yes
Steering Included	Yes
Caliper Pistons	Two
Caliper Finish	Powder Coated
Hardware Included	Yes
Rotor Type	Vented
Welding Required	No
Rotor Shape	Round

GENERAL
Sold in Quantity	Kit
Front Caliper Material	Aluminum
