Flathead 10 Inch Clutch Disc with Long-Style Pressure Plate
10 Spline Count, 1.375" Shaft Diameter, 10" Diameter, Organic Friction Material
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
It's getting harder to find flathead Ford clutch components. We can help you resolve this problem with our 10" clutch discs and long-style pressure plates for the flathead V8. They replace 10" OEM with a pressure placte using an 11-5/8" bolt circle. The pressure plate has a 6 bolt pattern divided up into 3 groups of 2 with a 3.125" center-to-center.
Pressure plate bolt pattern must match your flywheel!
Flathead 10 Inch Clutch Disc
- 1-3/8 Inch 10-Spline
- Early Ford Applications
- 1" center spline height while laying on side

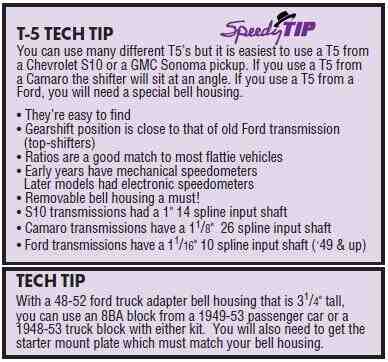

T-5 and Adapter Tech Tips (Link)
- Will not work with transmission adapters 916-28912, 916-28914, 560-5272, or 560-5174. This pressure plate has external counterweights that interfere with these adapters.
- If your application requires the use of a large pressure plate along with one of these adapters, use pressure plate 910-15635 as it has the same bolt pattern as the 10" pressure plate but does not make use of the external counterweights. You can use a 10" disc with the 10-1/2" pressure plate 910-15635.
What's In The Kit
Flathead 10 Inch Clutch Disc, 1-3/8 Inch 10-SplinePart # 91015654Qty x 1
Flathead 10 Inch Long-Style Clutch Pressure PlatePart # 91015657Qty x 1
