Product Summary

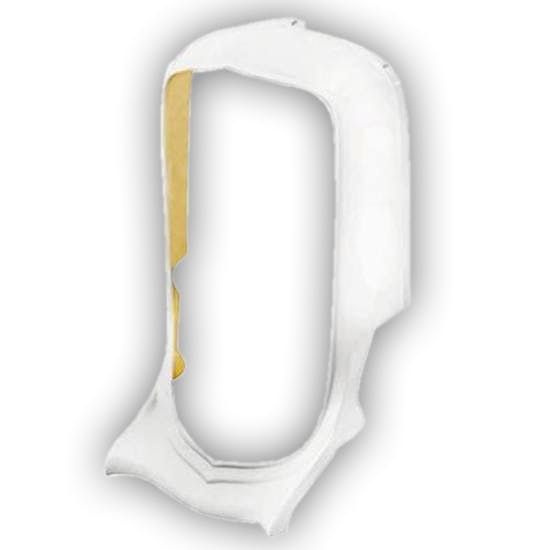

Fiberglass, 23.38" Overall Width, 36.25" Overall Height

  • Overall height as measured through the opening is 36 1/4"
  • Width at widest point at rear about midway down is 23 3/8”
  • Width at bottom is 18 1/8”
  • Front of bottom edge to rear edge of mounting tab is 11 13/16”
  • Depth front to rear above mounting tab is 3”

Key Specs

MFG. Part #9008331
BrandSpeedway Motors
Material TypeFiberglass
Overall Width23.38"
Overall Height36.25"

Need To Know

This Product Will Ship Free

Made to Order

This custom item will ship when completed

Quick and Easy Returns

Details

Dimensions:
  • Overall height as measured through the opening is 36 ¼”
  • Width at widest point at rear about midway down is 23 3/8”
  • Width at bottom is 18 1/8”
  • Front of bottom edge to rear edge of mounting tab is 11 13/16”
  • Depth front to rear above mounting tab is 3”
  • Front to rear at top is total of 8 ¼” at center (This includes the extended area at radiator cap of 2 1/8”)
  • Recess for radiator neck is 2 ½” I.D.
  • Front to back of side at upper corners is 6”
  • Front to back of side midway down is 5 7/8”
  • Grille opening is 17” at the widest point at the top
  • Halfway down grille opening is 15 7/8”
  • Further down in the opening it curves forward in a cowcatcher design and at that curve is 15 ¼”

Specifications

KEY SPECS
MFG. Part #9008331
BrandSpeedway Motors
Material TypeFiberglass
Overall Width23.38"
Overall Height36.25"
GENERAL
Sold in QuantityEach
