FiTech 70003 Ultimate LS EFI, LS1/LS2, 750 HP, w/o Trans Control

#52170003

FiTech 70003 Ultimate LS EFI, LS1/LS2, 750 HP, w/o Trans Control

Comes with 102mm billet LS throttle body and fuel rail with 55 lb./hr. fuel injectors
Intake features short runners for a tricked out engine bay as compared to factory plastic engine covers
This FiTech Ultimate LS combo is a perfect match for 5.3 LS and 6.0 LS truck motors with tall and not so elegant factory intakes

$2,107.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Multi-port Injection Style, 1000 CFM CFM

Comes with 102mm billet LS throttle body and fuel rail with 55 lb./hr. fuel injectors
Intake features short runners for a tricked out engine bay as compared to factory plastic engine covers
This FiTech Ultimate LS combo is a perfect match for 5.3 LS and 6.0 LS truck motors with tall and not so elegant factory intakes
It is custom cam friendly and is suitable for use with most 4.8 LS, 5.3 LS, LS1/LS6, and 6.0 LS engines with cathedral port cylinder heads producing up to 750 HP
The included color touch screen handheld controller allows for custom tuning adjustments to your LS engine as well as a self-learning program to get you on the road

See more details

Key Specs

MFG. Part #	70003
Brand	FiTech
Injection Style	Multi-port
Injector Size	55 lbs./hr.
ECM Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

FiTech 70003 Details

The FiTech 70003 Ultimate LS EFI kit is the ultimate LS ECU for DIY enthusiasts who want full control over their engine. Avoid having to buy additional software programs, learning how to think in computer code, or relying on a questionable 3rd party tuner. FiTech puts the engine and transmission EFI management back in your hands. The included color touch screen handheld controller allows for custom tuning adjustments to your LS engine as well as a self-learning program to get you on the road.

Leave the factory LS computer, wiring harness and intake in the junkyard where they belong. The FiTech Ultimate LS combo is a perfect match for 5.3 LS and 6.0 LS truck motors with tall and not so elegant factory intakes. The low profile fabricated sheet metal intake features short runners for a tricked out engine bay as compared to factory plastic engine covers. FiTech technology is custom cam friendly and is suitable for use with most 4.8 LS, 5.3 LS, LS1/LS6, and 6.0 LS engines with cathedral port cylinder heads producing up to 750 HP.

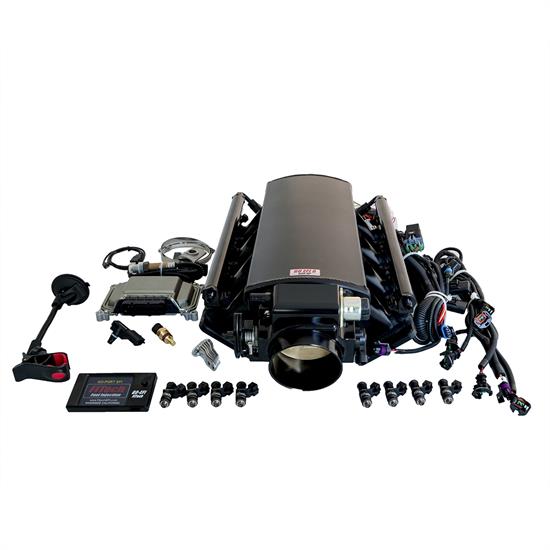

Kit includes:

Fabricated LS sheetmetal intake manifold
102mm billet LS throttle body
Fuel rail with 55 lb/hr fuel injectors
Handheld controller with data logging capability and windshield mount
Fully programmable self-learning LS ECU
LS wiring harness
Wideband O2 sensors

FiTech 70003 includes an engine-only ECU, however other FiTech Ultimate LS EFI kits are available to control both engines and electronic transmissions.

Application

Intake manifold will fit Cathedral Port LS1/LS2/LS6 heads.
Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines with a 1500-6500 rpm power-band up to 750 HP to the flywheel and contains a 3 BAR MAP sensor for power adder applications that supports up to 30 PSI of boost.
4.8 L / 293 c.i. LR4, LS1, LS2, LS6
5.3 L / 325 c.i. L33, L59, LM4, LM7
5.7 L / 346 c.i. LS1, LS6
6.0 L / 364 c.i. LQ4, LQ9, LS2

Charts

Installation Instructions (PDF)

Guides & Documents

Fuel Injection Systems Installation Instructions (52170003)

Warranty Information

Warranty

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

FiTech 70003 Specifications

KEY SPECS
MFG. Part #	70003
Brand	FiTech
Injection Style	Multi-port
Injector Size	55 lbs./hr.
ECM Included	Yes

GENERAL
CFM	1000 CFM
Injectors Included	Yes
Intake Manifold Included	Yes
Intake Section Included	Complete
Metering Style	Speed density (Map-N) or speed throttle (Alpha-N)
EGR	No
Throttle Body Included	Yes
Throttle Body Material	Billet Aluminum
Throttle Body Finish	Anodized
Intake Material	Aluminum
Intake Finish	Anodized
Venturi Quantity	1
Fuel Pump Included	No
Fuel Rails Included	Yes
Calibration Module Included	Yes
Wiring Harness Included	Yes
Fuel Pressure Regulator Included	No
Distributor Included	No
MAP Sensor Included	Yes
IAC Motor Included	Yes
IAT Sensor Included	Yes
TPS Sensor Included	Yes
Color	Black
Notes	This kit must be used with the factory coil pack sub-harness.
GTIN Code	854549007385
Sold in Quantity	Kit
