#52150004

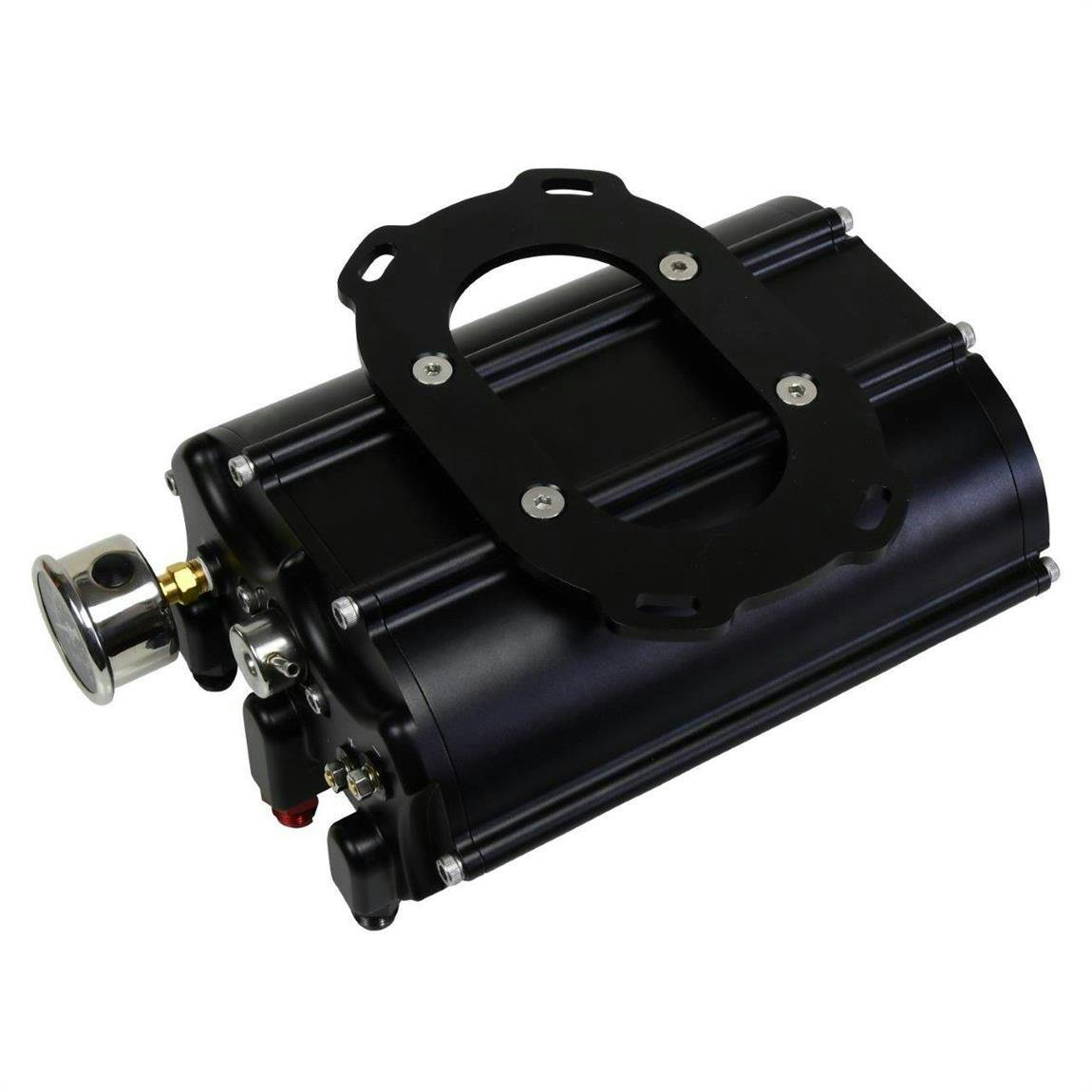

FiTech 50004 Force Fuel System
- The sturdy, versatile mounting bracket provides a side or bottom mount
- Designed specifically to fuel FiTech EFI systems as well as other brands
- Uses a 340 LPH fuel pump and internal regulator for reliable fuel supply
$480.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, External Electric Fuel Pump Type, Inline
- The sturdy, versatile mounting bracket provides a side or bottom mount
- Designed specifically to fuel FiTech EFI systems as well as other brands
- Uses a 340 LPH fuel pump and internal regulator for reliable fuel supply
- It is capable of supporting the fuel demands of an 800-hp engine on gasoline
- Has an increased fuel capacity over other systems with no chance of cavitation
Key Specs
| MFG. Part # | 50004 |
| Electric Fuel Pump Type | External |
| Free Flow Rate | 90 GPH / 340 LPH |
| Maximum Pressure | 58 psi |
| Voltage | 12 volts |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFiTech 50004 Details
FiTech 50004 Details
The all-new FiTech Force Fuel System makes the upgrade to fuel injection even easier! The Force Fuel simply connects to a stock mechanical or electric fuel pump then supplies the EFI system with high pressure through the use of an internal 340-LPH pump. This means you don’t need to run a new feed line from the tank!
With a strong, versatile mounting bracket, the Force Fuel System mounts under and is fed with the original fuel pump. The assembly holds half-a-gallon of fuel to submerge the electric fuel pump to keep it cool for long life and no chance of fuel starvation. An internal regulator keeps the pressure at a consistent 58-psi which is ideal for reliable EFI performance.
A serviceable 10-micron fuel filter is supplied to keep the finest debris away from the injectors along with five feet of high-pressure fuel hose, AN fittings, and clamps. The precision machined extrusion is designed for strength and sealed tight. There is also an easy-to-view fuel pressure gauge installed for quick checks and heavy-duty wire terminals are also supplied to complete the installation.
- Designed specifically to fuel FiTech EFI systems as well as other brands
- Capable of supporting the fuel demands of an 800-hp engine on gasoline
- Sturdy, versatile mounting bracket provides a side or bottom mount
- Effective 10-micron serviceable filter ensures the best filtration available
- Uses a 340 LPH fuel pump and internal regulator for reliable fuel supply
- Increased fuel capacity over other systems – no chance of cavitation
- Supplied with high-pressure fuel hose, AN fittings, return line fitting bung, and liquid-filled gauge
- For use with E-85, alcohol or methanol based fuels
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
FiTech 50004 Specifications
FiTech 50004 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 50004 |
| Brand | FiTech |
| Electric Fuel Pump Type | External |
| Free Flow Rate | 90 GPH / 340 LPH |
| Maximum Pressure | 58 psi |
| Voltage | 12 volts |
| GENERAL | |
| Inline | Yes |
| Fuel System Type | EFI |
| Fuel Type | Gasoline | Alcohol | E85 | Methanol |
| Electric Fuel Pump Inlet Fitting(s) | -6 AN Male |
| Electric Fuel Pump Outlet Fitting(s) | -6 AN Male |
| Horsepower Rating (Naturally Aspirated) | 800 HP |
| Material Type | Billet Aluminum |
| Color | Black |
| Fuel Pressure Regulator Included | No |
| Regulator Required | Yes |
| Sending Unit Included | No |
| Fuel Filter Included | Yes |
| Fuel Line Included | Yes |
| Fittings Included | Yes |
| Application | Universal |
| Bracket Color | Black |
| Gasket(s) Included | No |
| Wiring Harness Included | No |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Sold in Quantity | Each |
| Inlet Attachment | Female O-ring |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Outlet Attachment | Female O-ring |
Ratings & Reviews
5
3 Reviews
Customers appreciate the product for its proficient performance and quality, stating it operates as expected. Notably, the EFI kit has clear instructions and installs effortlessly. Interactions with electric fans and air conditioning systems in vehicles have been lauded, adding to its practicality. The Fuel System's convenient connection also adds value, although buying extra fuel line may be necessary. The installation and product adjustments have resulting in vehicles running optimally. Customers would buy this product again, highlighting its superiority over competitors. Ensure existing fuel lines are in good condition for better functioning.
Ratings & Reviews
5
3 Reviews
Customers appreciate the product for its proficient performance and quality, stating it operates as expected. Notably, the EFI kit has clear instructions and installs effortlessly. Interactions with electric fans and air conditioning systems in vehicles have been lauded, adding to its practicality. The Fuel System's convenient connection also adds value, although buying extra fuel line may be necessary. The installation and product adjustments have resulting in vehicles running optimally. Customers would buy this product again, highlighting its superiority over competitors. Ensure existing fuel lines are in good condition for better functioning.
5
3 reviews
5
3
4
0
3
0
2
0
1
0
Filter by Ratings
Great product
5.0
4 years ago
Hotroder
New Smyrna Beach fl
Verified
This worked as I expected.
Would Recommend
FiTech Install on 1977 Corvette
5.0
5 years ago
Girlfriend's 77 Corvette
Vero Beach, Florida
Verified
This was installed into a 1977 Corvette with the 400HP FiTech 30003 EFI kit. The efi installed easily with easy to follow instructions. This vehicle had electric fans and A/C. The electric fan connection installed easily. You connect the efi yellow wire to the relay. I used the relay coming from the temperature sensor and eliminated that sensor. For the A/C, there was a solenoid used to bump up the RPMs when the A/C was engaged. I replaced the solenoid and connected the black wire to the solenoid wire. The Force Fuel System is easy to connect but you'll need to purchase more fuel line, unless you can mount the system close to your existing manual fuel pump. I had to mount mine on the driver side where the charcoal canister was located. I modified the canister bracket to hold the force fuel unit and used the canister return line to connect to the unit. This is not recommended since it's a smaller line but since the return connection to the tank was 1/4" I decided to take this easier route for now and hope it doesn't cause any issues later. With the unit on the driver side, I needed additional line to run from the manual fuel pump to the unit. I ran my lines over top of the engine to prevent any damage from being underneath the car and to keep the lines cooler. The only problem I had was priming the fuel system. I was told that it would only take about 3-4 series of turn the pump on for 10 seconds and wait 30. It took me some 30-40 sessions to see fuel come out of the fuel tank return line. After I had the car running I noticed what was probably causing it to take this long to fill the system. I had fuel pouring out of the lines running from the tank to the hard lines. I had to lower the tank and replace these lines. Make sure you're existing fuel lines are in good shape to avoid this problem. The car is running great with a few minor adjustments to the AIC. So far the system and car are running great.
Would Recommend
I would buy this product again
5.0
6 years ago
Southern
4480 Clark's Valley RD swords creek Va
Verified
I used the n a 1981 corvette
Would Recommend
Showing 3 of 3 reviews
