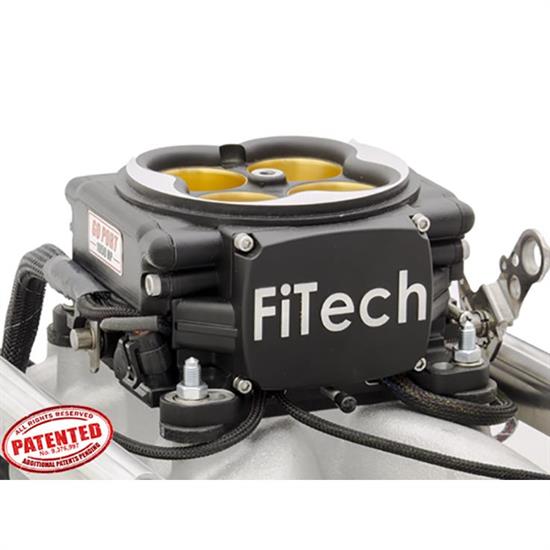

FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302

FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302

302 Chevy Small Block V8, 289 Ford Small Block V8, 4-Barrel Square Bore Carburetor Flange Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
X
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
FiTech 32854 Go Port EFI Fuel Injection System, SBF 289-302
Zoomed In Image
We estimate this item will ship on or before January 17th.
Part # 52132854
$1,795.00
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 23 business days for FiTech to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Carburetor Flange Type:
4-Barrel Square Bore
Injection Style:
Multi-port
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
36 lbs./hr.
Intake Manifold Included:
Yes
Intake Section Included:
Complete
Metering Style:
Speed Density and Speed Throttle
EGR:
No
CFM:
900 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Billet Aluminum
Throttle Body Finish:
Black Anodized
Intake Material:
Aluminum
Intake Finish:
Natural
Venturi Quantity:
4
Fuel Pump Included:
No
Fuel Rails Included:
Yes
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
No
Distributor Included:
No
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
Use with Power Adder:
No
Venturi Diameter:
44.45mm
Max Horsepower Rating:
550
MFG. Part #:
32854
GTIN Code:
856291005435
Sold in Quantity:
Kit

Info

Do you want the ease of a standard throttle body EFI install, but also gain the benefits of port style EFI? FiTech has just what you are looking for in the FiTech Go Port EFI Systems.

Combining both a standard FiTech throttle body with a built in self learning ECU, a performance aluminum port style intake manifold and topped off with FiTech fuel injectors fed by a pair of high quality aluminum fuel rails, the FiTech Go Port EFI System takes all the guess work out of upgrading to a modern performance fuel injection system. Whether you are replacing an old, tired, antique carburetor on your original engine or topping off a new crate motor; FiTech Go Port EFI Systems will bring new life to any combination you choose!

Kit Includes:

  • 900 CFM matte black throttle body
  • Throttle body-mounted sequential fuel ECU
  • 2.5 BAR MAP sensor built into the throttle body
  • Self-Learning Technology with simple engine setup
  • 2.5 inch touch screen Hand Held tuner with suction cup windshield mount
  • All engine specific kits include a high-quality, Edelbrock intake manifold
  • High flow fuel rails
  • (8) FiTech Hi-Flo 42-lb injectors for 550 HP kits, 70-lb for 1,050 HP kits
  • 4.2 wide band O2 sensor and stainless steel clamp or weld bung kit
  • 6-pin sub harness with flagged lead destinations
  • Coolant temperature sensor
  • TPS, IAC, IAT, & BARO sensors integrated into the throttle body
  • Throttle Body Gasket Kit

Features:

  • Matte black finish
  • Fits SBF 289-302
  • 200-550 HP
  • No ECU to mount under your dashboard or on your firewall.
  • No big holes to drill or harnesses draped all over your engine!
  • Everything you need is mounted right on the manifold and wiring is super simple, usually no more than four wires to get you up and running.
  • With no laptop required and absolutely no tuning experience necessary, now high performance port EFI is within the reach of everyone
  • E85 compatible (30% reduction in HP capacity of fuel system and EFI)

FiTech Go Port EFI Systems offer a unique mixture of fuel injection technologies for years of performance and reliability. With less tuning and set up to worry about, FiTech Go Port EFI Systems will leave you with more time to enjoy out on the open road, without having to stop at every gas pump you come across along the way!

Instructions (PDF)

Quick Start Guide - Handheld Controller (PDF)

Handheld Controller Feature Definitions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
