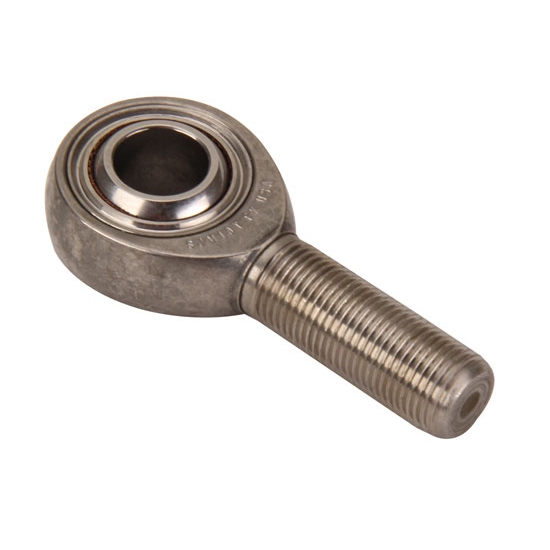

FK Rod Ends SJML12T Stainless Steel 3/4 Inch LH Male Heim Joint
FK Rod Ends SJML12T Stainless Steel 3/4 Inch LH Male Heim Joint
FK Rod Ends

|

#1750817

FK Rod Ends SJML12T Stainless Steel 3/4 Inch LH Male Heim Joint

Thread:

LH Male

RH Male

$84.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, LH Male Thread Type, Stainless Steel

    See more details

    Key Specs

    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/4"-16
    Material TypeStainless Steel
    Hole Diameter0.75"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    FK Rod Ends SJML12T Details

    FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.
    • 3/4" LH male threads
    • 3-piece precision stainless steel construction
    • Self-lubricating, high-strength
    • 17-4PH CRES heat-treated stainless steel bodies and races
    • 440C CRES heat-treated stainless steel ball

    Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

    Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

    FK Rod End Chart (Link)

    FK Rod Ends SJML12T Specifications

    KEY SPECS
    MFG. Part #SJML12T
    BrandFK Rod Ends
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/4"-16
    Material TypeStainless Steel
    Hole Diameter0.75"
    Rod End StylePTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishNatural
    ColorNatural
    Bushing MaterialPTFE
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.687"
    Rod End Ball Diameter0.875"
    Rod End Head Diameter1.775"
    Rod End Head Width0.640"
    Rod End Misalign Angle17 degrees
    Center Hole to End of Shank2.875"
    Heat TreatedYes
    Load Capacity29310 lbs.
    GTIN Code800199881219
    Sold in QuantityEach
