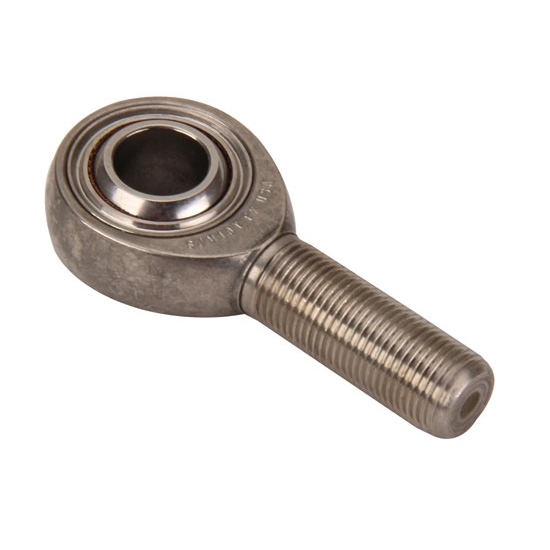

FK Rod Ends SJM12T Stainless Steel 3/4 Inch RH Male Heim Joint

#1750717

FK Rod Ends SJM12T Stainless Steel 3/4 Inch RH Male Heim Joint

Name: FK Rod Ends SJM12T Stainless Steel 3/4 Inch RH Male Heim Joint
Brand: FK Rod Ends
SKU: 1750717
Price: 86.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

1 Question

Features a durable 3-piece precision stainless steel construction
It is self-lubricating and has 3/4" RH male threads
Has 17-4PH CRES heat-treated stainless steel bodies and races

Thread:

RH Male

LH Male

$86.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Stainless Steel

Features a durable 3-piece precision stainless steel construction
It is self-lubricating and has 3/4" RH male threads
Has 17-4PH CRES heat-treated stainless steel bodies and races
The ball is made from 440C CRES heat-treated stainless steel
Rod ends come standard with a PTFE fabric liner bonded to the race i.d.

See more details

Key Specs

Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	3/4"-16
Material Type	Stainless Steel
Hole Diameter	0.75"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

FK Rod Ends SJM12T Details

FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.

3/4" RH male threads
3-piece precision stainless steel construction
Self-lubricating, high-strength
17-4PH CRES heat-treated stainless steel bodies and races
440C CRES heat-treated stainless steel ball

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

FK Rod End Chart (Link)

Specs

MALE ROD

ENDS

DIA.

WIDTH

BALL

DIA.

LGTH

THD.

LGTH

a°

MIS

ANGLE

ULT.

STATIC

RADIAL

LOAD (lbs.)

APPROX.

WEIGHT

(lbs.)

RIGHT

HAND PART NO.

+.0000 -.0005

+.010 -.010

+.000 -.002

+.005 -.005

REF.

+.010 -.010

UNF 3A

+.031 -.031

SJM12T

.7500

1.775

.875

.640

1.250

2.875

3/4-16

1.687

29,310

.639

FK Rod Ends SJM12T Specifications

KEY SPECS
MFG. Part #	SJM12T
Brand	FK Rod Ends
Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	3/4"-16
Material Type	Stainless Steel
Hole Diameter	0.75"
Rod End Style	PTFE Lined
Rod End Construction	3-piece
Grease Fitting	No
Finish	Natural
Color	Natural
Bushing Material	PTFE
Jam Nut Included	No

GENERAL
Thread Length	1.687"
Rod End Ball Diameter	0.875"
Rod End Head Diameter	1.775"
Rod End Head Width	0.640"
Rod End Misalign Angle	17 degrees
Center Hole to End of Shank	2.875"
Heat Treated	Yes
Load Capacity	29310 lbs.
GTIN Code	800199871210
Sold in Quantity	Each
