#150018

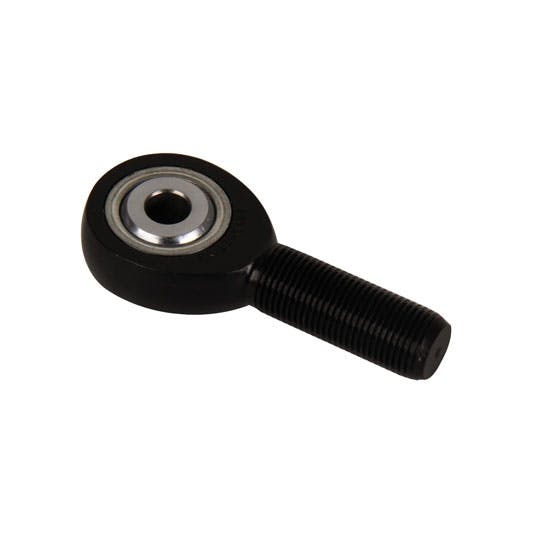

FK Rod Ends ALRSM8-6B Black Alum. Jacobs Ladder Heim Joint, 5/8"
$17.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Aluminum |
| Hole Diameter | 0.375" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFK Rod Ends ALRSM8-6B Details
FK Rod Ends ALRSM8-6B Details
Eliminate the need to add a spacer or drill your ladder. This 3 piece extra strength heim threads into the birdcage and reduces to a 3/8" hole.
- 3 piece extra strength rod end with heavy duty shank
- Ball is made of 52100 steel, heat treated and hard chrome plated
- Race is heat treated steel alloy, zinc plated and chromate treated
- Body is 7075-T6 aluminum with hard black anodized finish
- Works with 5/8"-18 thread size jam nuts
FK Rod Ends ALRSM8-6B Specifications
FK Rod Ends ALRSM8-6B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | ALRSM8-6B |
| Brand | FK Rod Ends |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Aluminum |
| Hole Diameter | 0.375" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Black |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.625" |
| Rod End Ball Diameter | 0.937" |
| Rod End Head Diameter | 0.625" |
| Rod End Head Width | 0.625" |
| Rod End Misalign Angle | 10 degrees |
| Center Hole to End of Shank | 2.625" |
| Heat Treated | Yes |
| Load Capacity | 14880 lbs. |
| Sold in Quantity | Each |
Ratings & Reviews
4.5
2 Reviews
Customers appreciate the product's practicality, particularly its well-functioning heim joint. They commend it for fulfilling specialized needs, adapting to fit axle brackets with differing holes. Its fit and reliability exceed standard rod ends, making it a superior choice. Users highlighted its robustness, noting its endurance even under extreme conditions, confirming its superior durability and quality. The product is highly recommended for anyone in need of a reliable, adaptable, and durable rod end.
Ratings & Reviews
4.5
2 Reviews
Customers appreciate the product's practicality, particularly its well-functioning heim joint. They commend it for fulfilling specialized needs, adapting to fit axle brackets with differing holes. Its fit and reliability exceed standard rod ends, making it a superior choice. Users highlighted its robustness, noting its endurance even under extreme conditions, confirming its superior durability and quality. The product is highly recommended for anyone in need of a reliable, adaptable, and durable rod end.
4.5
2 reviews
5
1
4
1
3
0
2
0
1
0
Filter by Ratings
Works as it should.
5.0
7 years ago
Lee
Hellam, PA
Verified
It's a functioning heim joint.
Would Recommend
A specialized product that filled a specialized need
4.0
7 years ago
Opus
Garland TX
Verified
I was trying to get rod ends that would fit the axle brackets sold for the straight tube axle, that come with 3/8" holes and not enough meat around the holes to drill out to fit a standard 5/8" rod end. This rod end bridges the gap in more ways than one. The mockup I did had no binds well past the limits of travel so I expect these to wear out before they break.
Would Recommend
Showing 2 of 2 reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
What size hole? The specs list this as a .625 hole (5/8), but the description states it reduces to a 3/8 hole.
by elroy1985
• 11 years ago
1 answer
View Answer
1 of 1 questions shown
