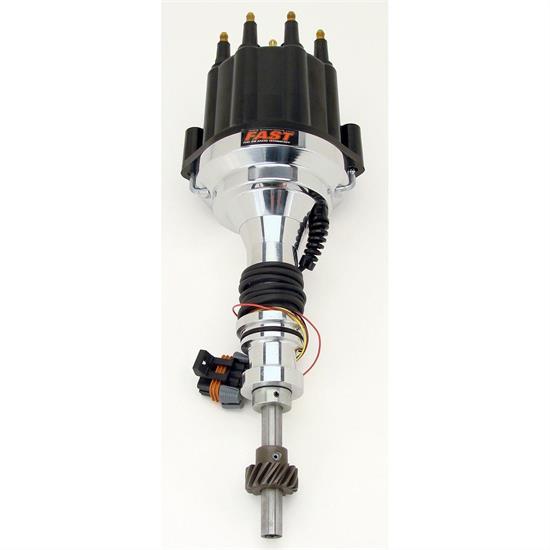

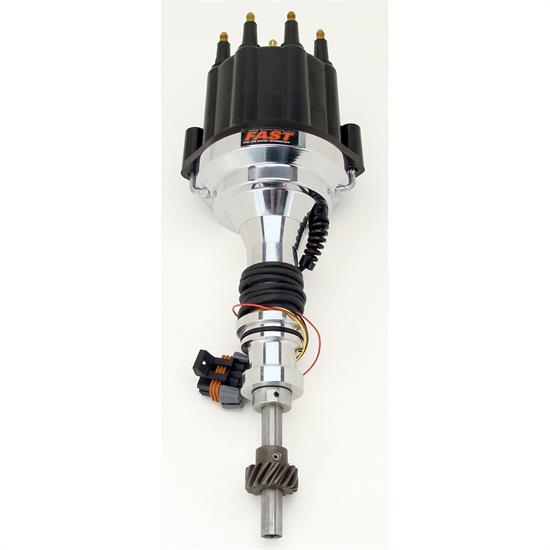

FAST 305009 Billet Dual-Sync Distributor, Ford Windsor

#282305009

FAST 305009 Billet Dual-Sync Distributor, Ford Windsor

Name: FAST 305009 Billet Dual-Sync Distributor, Ford Windsor
Brand: FAST Fuel Air Spark Technology
SKU: 282305009
Price: 514.95 USD
Availability: InStock

Write a Review

Ask a Question

$514.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

External Ignition Box Required, HEI / Male Cap Type

See more details

Key Specs

MFG. Part #	305009
Brand	FAST Fuel Air Spark Technology
Cap Type	HEI / Male
Advance Type	Electronic

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

FAST Fuel Air Spark Technology 305009 Details

Due to a variety of changes and updates developed by the talented electrical engineers at FAST, these dual-sync distributors are plug-and-play for electronic ignition control with FAST EZ-EFI 2.0, XFI Sportsman and XFI 2.0. A weld was added to the underside of the "advanced plate sleeve" to provide additional stability to the magnet sleeve for more accurate timing, and increased circuit protection has been added to the sensor module - making the unit less susceptible to noise or timing fluctuations. This also creates more accurate and reliable timing control in harsh conditions or racing environments. Meanwhile, for ease of installation, the cam sync LED display has been changed to green while the crank LED remains red. The wires have also been upgraded to a 20 AWG flexible style, which are much stronger and feature improved durability.

Compatible w/ FAST EZ-EFI 2.0, XFI Sportsman & XFI 2.0

NEW Dual-Sync Features

20 AWG, extreme-duty flexible-style wires for increased strength & durability
Revised sensor placement & advanced plate sleeve designs create increased accuracy & reliability
Increased circuit protection added to sensor module to make unit less susceptible to noise or timing fluctuations & make for accurate timing control in harsh conditions & racing environments
Revised LED strategy for easier set up

Standard Features

CNC-machined housing from high-quality 6061-T6 billet aluminum
Drop-in, plug-and-play solution for fully sequential EFI when used with XFI 2.0
Reluctors & pick-ups that have been properly aligned right out of the box that eliminate the need to set crankshaft reference angles or rotor phasing manually before installation
High output magnetic pick-ups to generate high capacity, noise resistant, discrete switch signals to the ECU, they deliver extremely precise ignition timing and long life

Guides & Documents

Warranty (FAST Fuel Air Spark Technology)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

FAST Fuel Air Spark Technology 305009 Specifications

KEY SPECS
MFG. Part #	305009
Brand	FAST Fuel Air Spark Technology
Cap Type	HEI / Male
Advance Type	Electronic

GENERAL
External Ignition Box Required	Yes
Cap Terminal Style	HEI / Male
Trigger Style	Magnetic
Hall Effect	No
Sync Signal	Yes
Trigger Sensors	Dual
Gear Material	Melonized
Gear Rotation	Standard
Distributor Cap Color	Black
Ignition Box Required	Yes
Mechanical Tach Drive	No
Slip Collar	Yes
Housing Material	Billet Aluminum
Housing Finish	Natural
Marine Use	No
Sold in Quantity	Each
Notes	Designed to be used with aftermarket fuel injection systems.
GTIN Code	036584149514

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1971-1974 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1981-1987 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1970-1974 Ford Country Sedan

351C Ford 335 Series Cleveland V8

1970-1974 Ford Country Squire

351C Ford 335 Series Cleveland V8

1970-1972 Ford Custom

351C Ford 335 Series Cleveland V8

1970-1974 Ford Custom 500

351C Ford 335 Series Cleveland V8

1970 Ford Fairlane

351C Ford 335 Series Cleveland V8

1970 Ford Falcon

351C Ford 335 Series Cleveland V8

1970-1974 Ford Galaxie 500

351C Ford 335 Series Cleveland V8

1972-1974 Ford Gran Torino

351C Ford 335 Series Cleveland V8

1970-1974 Ford LTD

351C Ford 335 Series Cleveland V8

1970-1973 Ford Mustang

351C Ford 335 Series Cleveland V8

1970-1974 Ford Ranch Wagon

351C Ford 335 Series Cleveland V8

1970-1974 Ford Ranchero

351C Ford 335 Series Cleveland V8

1970-1974 Ford Torino

351C Ford 335 Series Cleveland V8

1972 Mercury Cougar

351C Ford 335 Series Cleveland V8
