Product Summary

Chevy Small Block V8, Chevy Big Block V8, Sync Signal

    Key Specs

    MFG. Part #305005
    BrandFAST Fuel Air Spark Technology
    Cap TypeHEI / Male
    Advance TypeElectronic

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

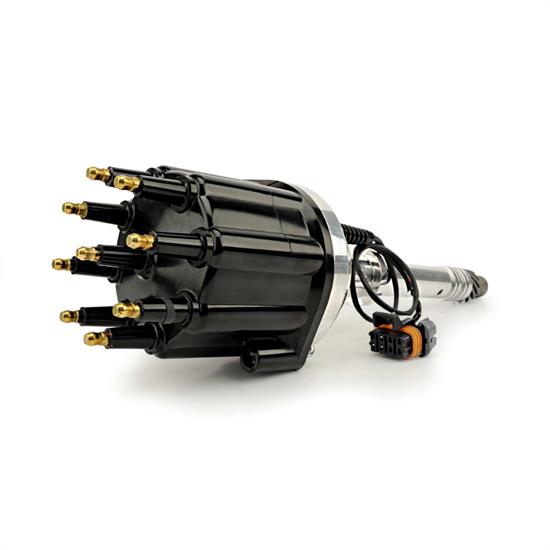

    FAST Fuel Air Spark Technology 305005 Details

    Due to a variety of changes and updates developed by the talented electrical engineers at FAST, these dual-sync distributors are plug-and-play for electronic ignition control with FAST EZ-EFI 2.0, XFI Sportsman and XFI 2.0. A weld was added to the underside of the "advanced plate sleeve" to provide additional stability to the magnet sleeve for more accurate timing, and increased circuit protection has been added to the sensor module - making the unit less susceptible to noise or timing fluctuations. This also creates more accurate and reliable timing control in harsh conditions or racing environments. Meanwhile, for ease of installation, the cam sync LED display has been changed to green while the crank LED remains red. The wires have also been upgraded to a 20 AWG flexible style, which are much stronger and feature improved durability.

    • Compatible w/ FAST EZ-EFI 2.0, XFI Sportsman & XFI 2.0

    NEW Dual-Sync Features

    • 20 AWG, extreme-duty flexible-style wires for increased strength & durability
    • Revised sensor placement & advanced plate sleeve designs create increased accuracy & reliability
    • Increased circuit protection added to sensor module to make unit less susceptible to noise or timing fluctuations & make for accurate timing control in harsh conditions & racing environments
    • Revised LED strategy for easier set up

    Standard Features

    • CNC-machined housing from high-quality 6061-T6 billet aluminum
    • Drop-in, plug-and-play solution for fully sequential EFI when used with XFI 2.0
    • Reluctors & pick-ups that have been properly aligned right out of the box that eliminate the need to set crankshaft reference angles or rotor phasing manually before installation
    • High output magnetic pick-ups to generate high capacity, noise resistant, discrete switch signals to the ECU, they deliver extremely precise ignition timing and long life

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    FAST Fuel Air Spark Technology 305005 Specifications

    MFG. Part #305005
    BrandFAST Fuel Air Spark Technology
    Cap TypeHEI / Male
    Advance TypeElectronic
    External Ignition Box RequiredYes
    Cap Terminal StyleHEI / Male
    Trigger StyleMagnetic
    Hall EffectNo
    Sync SignalYes
    Trigger SensorsDual
    Gear MaterialMelonized
    Gear RotationStandard
    Distributor Cap ColorRed
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishNatural
    Marine UseNo
    Sold in QuantityEach
    GTIN Code036584127901
