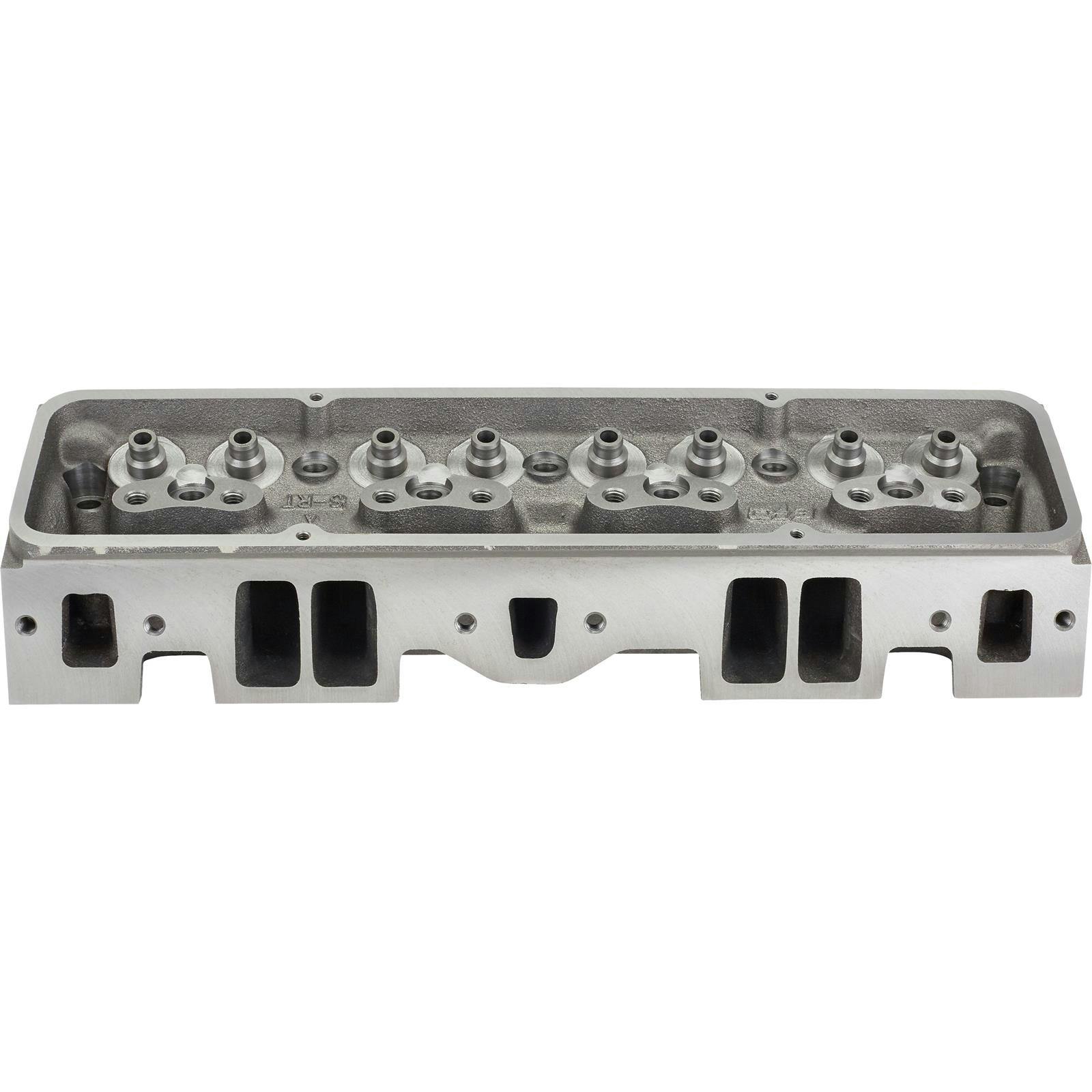

Enginequest IMCA/WISSOTA Small Block Chevy Cylinder Heads

#9154622

Enginequest IMCA/WISSOTA Small Block Chevy Cylinder Heads

Name: Enginequest IMCA/WISSOTA Small Block Chevy Cylinder Heads
Brand: Speedway Motors
SKU: 9154622
Rating: 4.4 (9 reviews)

9 Reviews

33 Questions

This head is engraved with IMCA logo and serial numbered by Engine Quest to make it approved for use in IMCA classes that allow the CH350I cylinder head
76 cc combustions chamber and 176 to 178 cc intake runners deliver consistent performance
COMP version (Complete assembled) includes stainless steel valves, performance valve springs, retainers, keepers, and 3/8" screw in studs

Model:

Select a model

Starting from

$537.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

This head is engraved with IMCA logo and serial numbered by Engine Quest to make it approved for use in IMCA classes that allow the CH350I cylinder head
76 cc combustions chamber and 176 to 178 cc intake runners deliver consistent performance
COMP version (Complete assembled) includes stainless steel valves, performance valve springs, retainers, keepers, and 3/8" screw in studs
SM version (Sport Mod) also has upgraded Isky valve springs part number 450235D and lightweight Ferrea tool steel retainers
SC version (Stock Car) also has upgraded Isky valve springs part number 450235D, lightweight Ferrea tool steel retainers, and max flat milled w/ intake surface corrected

See more details

Key Specs

Cylinder Head Style	Select Model
Material Type	Cast Iron
Finish	Natural
Combustion Chamber Volume	76cc
Intake Runner Volume	176/178cc

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

This cylinder head in stock form has push rod slots in the head similar to a stock GM cylinder head, therefore, no guide plates are needed or utilized. If guide plates are added or utilized, you will need to drill out the pushrod slots for clearance purposes to allow for the push rod guide plate function.

Assembled version will include the following:

COMP - Utilizes Speedway valve springs 180-671515 and 915-39741 retainers.

SM - The Sport Mod version has upgraded Isky valve springs 450-235D, tool steel retainers and spring locators.

SC - The Stock Car version has the same Isky valve spring components as the SM unit and also has been surfaced to max out the compression rule for the IMCA Stock Car.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

This head is engraved and serial numbered by Engine Quest for IMCAs Sport Mods, Stock Cars, and Hobby Stocks. Now approved for WISSOTA Midwest Mods and Street Stocks.

Assembled heads will include the following:

3/8" screw in studs # 915-99156
76 cc combustion chamber
176-178 cc intake runners
Straight plug
1.94/1.50 intake/exhaust valves #910-14140-1 & 910-14145-1
Available bare or assembled and blue printed
Heavy duty valves
(COMP) version includes Retainers and locks # 915-39741 & 577-555
(COMP) version includes 1.25" high-performance valve springs # 180-671515
(SM-Sport Mod) version includes Isky Springs # 450-235D, 7 deg locks and Ferrea tool steel retainers
(SC-Stock Car) version includes Isky Springs # 450-235D, 7 deg locks and Ferrea tool steel retainers, Max Flat Milled w/ intake surface corrected
Three angle valve job

Item Details

Straight Plug
1.94/1.50 Intake Valves

IMCA Approved.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Specifications

KEY SPECS
MFG. Part #	Select Model to see
Brand	Speedway Motors
Cylinder Head Style	Select Model to see
Material Type	Cast Iron
Finish	Natural
Combustion Chamber Volume	76cc
Intake Runner Volume	176/178cc

GENERAL
Combustion Chamber Volume Range	70cc - 79cc
Intake Runner Volume Range	170cc - 179cc
Spark Plug Style	Straight
Intake Port Shape	Rectangle
Exhaust Port Shape	Square
Intake Valve Diameter	1.94"
Intake Valves Included	Yes
Exhaust Valve Diameter	1.5"
Exhaust Valves Included	Yes
Valve Spring Included	Yes
Valve Seat Machine Style	3-angle
Valve Seats Machined	Yes
Locks Included	Yes
Lock Style	7 Degree
Retainers Included	Yes
Retainer Material	Steel
Stud Diameter	0.38"
Notes	-Manufactures recommends using R5673-8 NGK or equivalent spark plugs. (373-133 or 373-134 Autolite). -Item expected to be on back order until March 2020
Sold in Quantity	Each

Ratings & Reviews

4.4

9 Reviews

Overall Assessment

Customers have praised the product for its affordability, practicality, and overall quality. The engine heads have been commended for their relatively easy installation, even in more complex vehicle models. Despite a minor adjustment for spark plug locations, customers found the issue minor and manageable. The product is regarded as ideal for IMCA racing cars, with repeat purchases noted. A drawback pointed out is that the complete head no longer comes with guide plates, leading one customer to prefer customized assembly by a local machine shop. However, most reviews recommend the product for its usability and quality performance.

Write A Review

4.4

9 reviews

Filter by Ratings

Sort Reviews

Yes

5.0

a year ago

53K

Wichita, Ks

Verified

These head are replacing the heads on my modified

Would Recommend

Don't waste money on complete assembly

1.0

3 years ago

Perry

Bought a pair of these complete for our hobby stock engine, bolted on an existing running engine as an upgrade to what we had. Made it 3 laps in the heat and stuck 2 valves. Very disappointed. Better of buying the bare head and let you local machine shop assemble them to make sure they are right.

Would Not Recommend

I would buy this again, and I have....

5.0

4 years ago

Omaha

Verified

Imca Sportmod Engine

Would Recommend

I would purchase this product again

5.0

5 years ago

Chuck

Avoca Ia

Verified

Best head for Imca Stock car

Would Recommend

I would buy again

5.0

7 years ago

butch

mankato mn

Verified

nicely done, ready to bolt on

Would Recommend

good heads

5.0

7 years ago

s10

ohio

Verified

install was easy even in the 95 s10. However, the number 3 &4 sparkplug hole is centered between the head bolts which is slightly different from the previous heads we had. Holes were further aft. Only reason I bring this up is that we are using the Sanderson shorty headers which now get close to the #3 spark plug and prevents me from using a socket to tighten the spark plug. The boot on that plug is almost touching the header, but so far it's okay.

Would Recommend

Very nice heads. Cost is very reasonable.

5.0

8 years ago

Pete

North dakota

Verified

Very nice heads.

Would Recommend

I would buy this product again

4.0

9 years ago

jim

kalispell mt.

Verified

The complete head does no longer come with guide plates

Would Recommend

Quality work

5.0

10 years ago

Diana Tx.

Verified

lap valves in , add racing springs , ready for my IMCA Southern Sport Mod .

Would Recommend

Showing 9 of 9 reviews
