#91064006

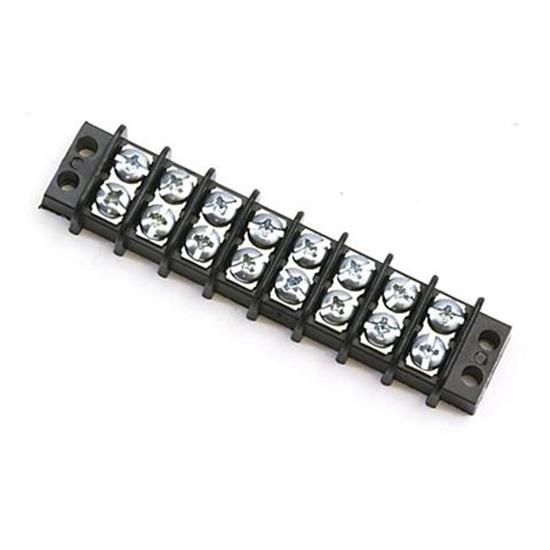

Electrical 8 Terminal Block Bus Strip
- Connect all the wires in your panel or enclosure in one convenient place
- UL recognized and CSA certified
- Tin-plated brass terminals
$19.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, .87" Overall Width, 3.66" Overall Length
- Connect all the wires in your panel or enclosure in one convenient place
- UL recognized and CSA certified
- Tin-plated brass terminals
- Ni-plated steel screws
- Amps Per Circuit: 20A
Key Specs
| MFG. Part # | 91064006 |
| Overall Width | .87" |
| Overall Thickness | .47" |
| Overall Length | 3.66" |
| Hole Diameter | .16" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91064006 Details
Speedway Motors 91064006 Details
Connect all the wires in your panel or enclosure in one convenient place. Also known as barrier terminal strips, these blocks have screw terminals—just loosen a screw and wrap a stripped wire end around it (or use a spade terminal) and tighten the screw. All have four mounting holes. Color is black. UL recognized and CSA certified.
- Phenolic block
- Tin-plated brass terminals
- Ni-plated steel screws
- Amps Per Circuit: 20A
- For Wire Size, AWG: 22-12
- Screw Terminal Size: #6-32
- Center-to-Center: 0.38"
- Mount Hole Diameter: 0.17"
Note: These are terminal strips and are NOT intended for use as ground strips. To be used as a ground strip, all terminals on one side would need to be pigtailed together.
Item Details
3.66" L x 0.87" W x .047" HSpeedway Motors 91064006 Specifications
Speedway Motors 91064006 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91064006 |
| Brand | Speedway Motors |
| Overall Width | .87" |
| Overall Thickness | .47" |
| Overall Length | 3.66" |
| Hole Diameter | .16" |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
4.5
10 Reviews
Customers have praised the product for its high quality and practicality. Its ideal size makes it perfect for various applications and its ability to make secure connections is well-regarded. It was used successfully in wiring micro sprint cars and in building power and ground junctions in tighter areas. Some customers wished for a larger size and availability of a weather cover. Comparisons to similar products from other competitors pointed out how difficult finding a product of this caliber can be, hence validating the product's exceptional features. Despite minor improvements suggested, customers expressed satisfaction, indicated with repeated purchase intents.
Ratings & Reviews
4.5
10 Reviews
Customers have praised the product for its high quality and practicality. Its ideal size makes it perfect for various applications and its ability to make secure connections is well-regarded. It was used successfully in wiring micro sprint cars and in building power and ground junctions in tighter areas. Some customers wished for a larger size and availability of a weather cover. Comparisons to similar products from other competitors pointed out how difficult finding a product of this caliber can be, hence validating the product's exceptional features. Despite minor improvements suggested, customers expressed satisfaction, indicated with repeated purchase intents.
4.5
10 reviews
5
8
4
1
3
0
2
0
1
1
Most Liked Positive Review
5.0
Just the right part. Fast & easy.
I used the terminal block to inter-connect an ADS-B transmitter and GPS, and connect to power source in my Experimental aircraft. Perfect for the application. Now that Radio Shack is gone these are difficult to source locally. speedway was quick and easy. Made my day!
Most Liked Negative Review
1.0
Too small
Had to narrow all connectors to fit on strip
Filter by Ratings
Yes, I would buy it again!
5.0
3 years ago
john
Washington
Verified
The best way to make connections, especially when connecting more than 2 wires.
Yes I would buy again.
5.0
4 years ago
WIllie
Meade, KS
Verified
Used this terminal block to lay in wiring on a micro sprint car. Easy to mount and worked perfectly.
Would Recommend
Just the right part. Fast & easy.
5.0
5 years ago
Capt. Kirk
Elmore, AL.
Verified
I used the terminal block to inter-connect an ADS-B transmitter and GPS, and connect to power source in my Experimental aircraft. Perfect for the application. Now that Radio Shack is gone these are difficult to source locally. speedway was quick and easy. Made my day!
Would Recommend
Fixed my bad connection.
5.0
6 years ago
tim
Independence, Ks
Verified
I had to cut out bulkhead connector on my 64 Bel air firewall and make tight connection.
Would Recommend
Absolutely
5.0
6 years ago
NJ Slick
Clifton NJ
Verified
It's exactly what I needed for my application
Would Recommend
Great quality
5.0
7 years ago
Scoobykbh
Dubuque, iowa
Verified
Good quality and works great. Can't go wrong.
Too small
1.0
8 years ago
Parts
Appleton, WI
Verified
Had to narrow all connectors to fit on strip
Would Not Recommend
Works
5.0
9 years ago
Jerrdogg
Tenn
Verified
Works great
Would Recommend
A Great product and well made. I will purchase more!!!!
5.0
11 years ago
StreetRodz Unlimited
Kennewick, Washington
Verified
Well made and compact for those close and tight area's. Great for building power and ground junctions for street rods and race cars.
Would Recommend
works good
4.0
11 years ago
smilebigtt
topeka, ks
Verified
Does what I bought it for. I wish it was a little larger in size however. Just tight on space when you get all wired. Also wished there was a weather cover offered for it.
Would Recommend
Showing 10 of 10 reviews
