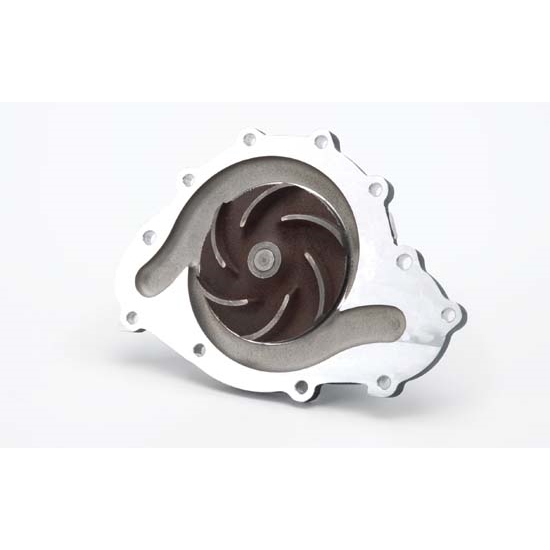

Edelbrock 88563 Victor Series Water Pump, 1969-79 Pontiac, 389-455
Edelbrock 88563 Victor Series Water Pump, 1969-79 Pontiac, 389-455
Edelbrock

|

#32588563

Edelbrock 88563 Victor Series Water Pump, 1969-79 Pontiac, 389-455

Finish:

Black

Satin

$429.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Mechanical Water Pump Type, Clockwise/Standard Rotation

    See more details

    Key Specs

    Water Pump TypeMechanical
    RotationClockwise/Standard
    Pump FlowHigh-Volume
    Housing MaterialAluminum
    Housing FinishPowder Coated
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Edelbrock 88563 Details

    Edelbrock Victor Series water pumps provide maximum cooling for the street and the race track. They're ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes.

    • Maximum Cooling for Street and Racing Engines
    • Internal Passages Are Balanced for Maximum Flow
    • Impeller is Larger than Others For Max Pressure
    • Impeller Vanes Dramatically Increase Flow Rates
    • Equal Distribution to Both Sides of Block
    • Only Flows in One-Direction for Optimum Efficiency

    Application

    Fits all 1969-79 389-455 c.i.d Pontiac engines with 11 bolt front timing cover with back plate.

    Charts

    Edelbrock 88563 Specifications

    KEY SPECS
    MFG. Part #88563
    BrandEdelbrock
    Water Pump TypeMechanical
    RotationClockwise/Standard
    Pump FlowHigh-Volume
    Housing MaterialAluminum
    Housing FinishPowder Coated
    GENERAL
    Housing ColorBlack
    Inlet Size1.78"
    Sold in QuantityEach
    NotesFits engines with 11 bolt front timing cover with back plate Has 3/4 in ball/ball bearing Dimension from block surface to hub 4 1/2 in
    GTIN Code085347885633

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • 400 Pontiac V8

    • 428 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • 428 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • 428 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • 428 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 428 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V

    • 400 Pontiac V8

    • 400 Pontiac V8

    • 428 Pontiac V8

    • 400 Pontiac V8

    • Pontiac V8 Large-Journal 455

    • Pontiac V8 Small-Journal 455 Ram Air V
