Product Summary

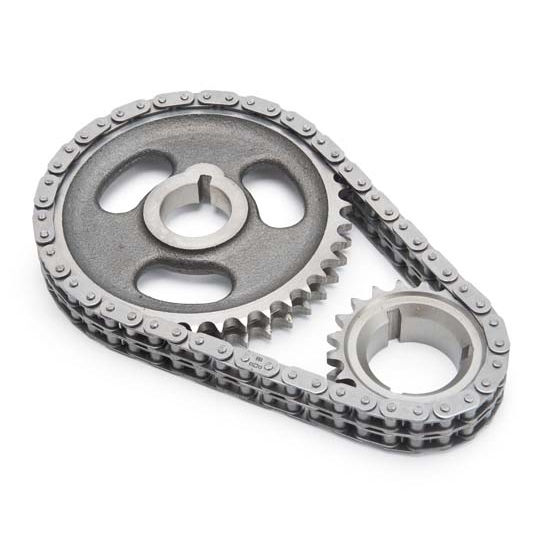

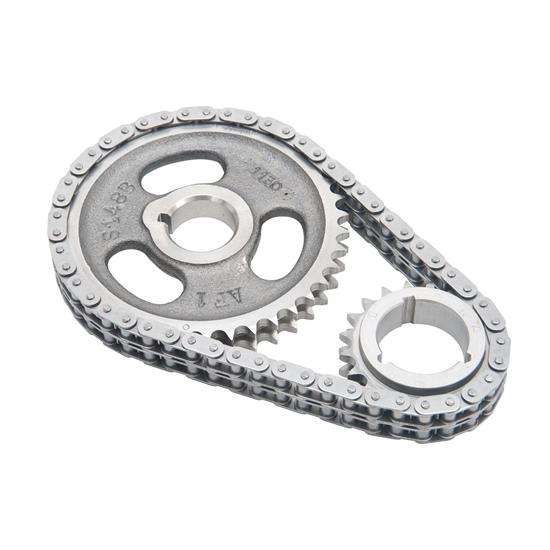

231, 252, Double Roller Timing Chain Style

    Key Specs

    BrandEdelbrock
    Gasket(s) IncludedNo
    Bolts/Studs IncludedNo
    Timing Chain StyleDouble Roller
    Retard at Camshaft2 degree

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

    Performer-Link timing chain sets are for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch.
    • Solid Bushing Chain Resists Stretching
    • For Use with Stock or Edelbrock Camshafts
    • Stressproof Steel Crank Gears
    • 3 Keyway Setting Points To Ensure Accurate Timing
    • True Bearing Surface Rolls with the Sprockets

    Application

    V6 198, 225, 231 w/o integral distributor drive  1962-77

    Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    BrandEdelbrock
    Gasket(s) IncludedNo
    Bolts/Studs IncludedNo
    Timing Chain StyleDouble Roller
    Retard at Camshaft2 degree
    GENERAL
    GTIN Code085347078288
    Sold in QuantitySet
    Retard at Crankshaft4 degree
    Thrust Bearing IncludedNo
    Offset Bushings IncludedNo
    Cam Sprocket MaterialIron
    Crank Sprocket MaterialBillet steel
