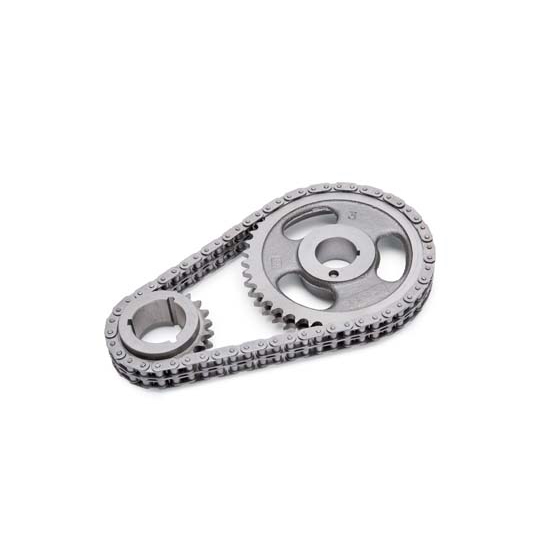

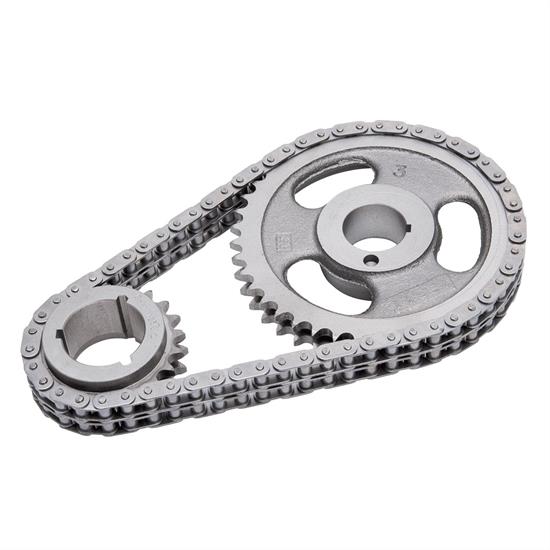

Edelbrock 7812 Performer-Link True Roller Timing Set Chain, Pontiac V8

#3257812

Edelbrock 7812 Performer-Link True Roller Timing Set Chain, Pontiac V8

Name: Edelbrock 7812 Performer-Link True Roller Timing Set Chain, Pontiac V8
Brand: Edelbrock
SKU: 3257812
Price: 88.95 USD
Availability: InStock

Write a Review

Ask a Question

$88.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Double Roller Timing Chain Style

See more details

Key Specs

MFG. Part #	7812
Brand	Edelbrock

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 7812 Details

Performer-Link timing chain sets are for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch.

Solid Bushing Chain Resists Stretching
For Use with Stock or Edelbrock Camshafts
Stressproof Steel Crank Gears
3 Keyway Setting Points To Ensure Accurate Timing
True Bearing Surface Rolls with the Sprockets

Application

Pontiac V8 287, 316, 326, 347, 350P, 370, 389, 400, 421, 428, 455 1955-82

Charts

Installation Instructions (PDF)

Guides & Documents

Timing Chain Kits Installation Instructions (3257812)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Edelbrock 7812 Specifications

KEY SPECS
MFG. Part #	7812
Brand	Edelbrock

GENERAL
GTIN Code	085347078127
Gasket(s) Included	No
Sold in Quantity	Set
Bolts/Studs Included	No
Timing Chain Style	Double Roller
Cam Sprocket Material	Iron
Crank Sprocket Material	Billet steel
Retard at Camshaft	2 degree
Retard at Crankshaft	4 degree
Thrust Bearing Included	No
Offset Bushings Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1963-1966 Pontiac Bonneville

421 Pontiac V8

1967-1969 Pontiac Bonneville

400 Pontiac V8

1970-1974 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Bonneville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Bonneville

400 Pontiac V8

1961-1966 Pontiac Catalina

421 Pontiac V8

1967-1969 Pontiac Catalina

400 Pontiac V8

1970-1974 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Catalina

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Catalina

400 Pontiac V8

1967 Pontiac Executive

400 Pontiac V8

1968 Pontiac Executive

350 Pontiac V8
400 Pontiac V8

1969 Pontiac Executive

400 Pontiac V8

1970 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1967 Pontiac Firebird

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1970-1976 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1978-1979 Pontiac Firebird

400 Pontiac V8

1973-1975 Pontiac Grand Am

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8

1963-1966 Pontiac Grand Prix

421 Pontiac V8

1967-1969 Pontiac Grand Prix

400 Pontiac V8

1970 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1971 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1974 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8

1971-1974 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand Safari

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Grand Safari

400 Pontiac V8

1971 Pontiac Grandville

Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1975 Pontiac Grandville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1964-1965 Pontiac GTO

326 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac GTO

400 Pontiac V8

1970-1971 Pontiac GTO

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1973 Pontiac GTO

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1963-1966 Pontiac LeMans

326 Pontiac V8

1967 Pontiac LeMans

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1970-1974 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1976 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1977 Pontiac Phoenix

350 Pontiac V8

1963-1966 Pontiac Star Chief

421 Pontiac V8

1963-1966 Pontiac Tempest

326 Pontiac V8

1967 Pontiac Tempest

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8

1970 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1961 Pontiac Ventura

421 Pontiac V8

1971-1977 Pontiac Ventura

350 Pontiac V8
