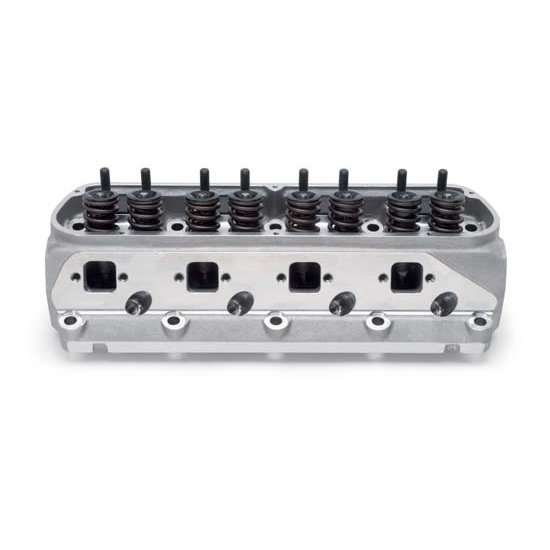

Edelbrock 77189 Victor Jr Cylinder Head,Assembled, Ford 289, 302, 351W

#32577189

Edelbrock 77189 Victor Jr Cylinder Head,Assembled, Ford 289, 302, 351W

Name: Edelbrock 77189 Victor Jr Cylinder Head,Assembled, Ford 289, 302, 351W
Brand: Edelbrock
SKU: 32577189
Price: 1250.95 USD
Availability: InStock

Write a Review

2 Questions

$1,250.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Assembled Cylinder Head Style, Aluminum, Natural

See more details

Key Specs

Cylinder Head Style	Assembled
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	60cc
Intake Runner Volume	210cc

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 77189 Details

Ready to bolt-on out of the box. Affordable, top quality. 500+ HP potential. High-flow 210cc intake ports. CNC gasket-matched part entries and exits.

Ready To Bolt On; Out-Of-The-Box
Affordable; Top Quality
500+ hp Potential
High-Flow 210cc Intake Ports
CNC Gasket-Matched Part Entries/Exits
Spark Plugs/Valves In The Stock Location

Charts

Installation Instructions (PDF)

Guides & Documents

Cylinder Heads Installation Instructions (32577189)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Edelbrock 77189 Specifications

KEY SPECS
MFG. Part #	77189
Brand	Edelbrock
Cylinder Head Style	Assembled
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	60cc
Intake Runner Volume	210cc

GENERAL
Exhaust Runner Volume	75cc
Combustion Chamber Volume Range	60cc - 69cc
Intake Runner Volume Range	210cc - 219cc
Exhaust Runner Volume Range	70cc - 79cc
CNC-Machined Runners	No
CNC-Machined Combustion Chamber	No
Intake Port Shape	Rectangle
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Raised
Intake Valve Diameter	2.05"
Intake Valves Included	Yes
Intake Valve Angle	20 °
Exhaust Valve Diameter	1.6"
Exhaust Valves Included	Yes
Valve Spring Included	Yes
Spring Diameter	1.55"
Damper Spring Included	Yes
Number of Springs Per Valve	Dual
Maximum Lift	0.650"
Machined for O-Ring	No
Valve Seat Machine Style	3-angle
Valve Seats Machined	Yes
Valve Seat Material	Ductile Iron
Valve Stem Seals Included	Yes
Valve Stem Seal Type	Positive Stop
Valve Guides Included	Yes
Valve Guide Material	Manganese Bronze
Locks Included	Yes
Retainers Included	Yes
Retainer Material	Steel
Guideplates Included	Yes
Guideplate Pushrod Size	0.312"
Rocker Arms Included	No
Rocker Arm Studs Included	Yes
Rocker Arm Nuts Included	No
Oiling Style	Through Pushrod
Heat Crossover	No
Steam Holes Drilled	No
Accessory Bolt Holes Drilled	Yes
Valve Cover Mounting Style	Perimeter Bolt
Notes	Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity	Each
GTIN Code	085347771899

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

Are these heads compatible with hydraulic flat tappet camshaft? Heads 77189 victor jr!

by Thomas

• 4 months ago

1 answer

View Answer

what intake maifold gsket should i use

by larry

• 2 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1964 AC Shelby Cobra

Ford 289

1968-1973 AC Shelby Cobra

Ford 289

1967 DeTomaso Mangusta

Ford 289

1968-1972 DeTomaso Mangusta

Ford 302

1988-1989 DeTomaso Pantera

Ford 351W

1963 Ford 300

Ford 289

1966-1967 Ford Bronco

Ford 289

1968 Ford Bronco

Ford 289
Ford 302

1969-1977 Ford Bronco

Ford 302

1978-1979 Ford Bronco

Ford 351W

1980-1984 Ford Bronco

Ford 302
Ford 351W

1985-1996 Ford Bronco

Ford 351W

1963-1967 Ford Club Wagon

Ford 289

1963-1967 Ford Country Sedan

Ford 289

1968 Ford Country Sedan

Ford 289
Ford 302

1969-1974 Ford Country Sedan

Ford 302
Ford 351W

1963-1967 Ford Country Squire

Ford 289

1968 Ford Country Squire

Ford 289
Ford 302

1969-1974 Ford Country Squire

Ford 302
Ford 351W

1964-1967 Ford Custom

Ford 289

1968 Ford Custom

Ford 289
Ford 302

1969-1972 Ford Custom

Ford 302
Ford 351W

1964-1967 Ford Custom 500

Ford 289

1968 Ford Custom 500

Ford 289
Ford 302

1969-1974 Ford Custom 500

Ford 302
Ford 351W

1975-1977 Ford Custom 500

Ford 351W

1968-1974 Ford E-100 Econoline

Ford 302

1975 Ford E-100 Econoline

Ford 302
Ford 351W

1976-1978 Ford E-100 Econoline

Ford 351W

1979-1983 Ford E-100 Econoline

Ford 302
Ford 351W

1975-1978 Ford E-100 Econoline Club Wagon

Ford 351W

1979-1983 Ford E-100 Econoline Club Wagon

Ford 302
Ford 351W

1975 Ford E-150 Econoline

Ford 302
Ford 351W

1976-1978 Ford E-150 Econoline

Ford 351W

1979-1984 Ford E-150 Econoline

Ford 302
Ford 351W

1985-1996 Ford E-150 Econoline

Ford 351W

1975-1978 Ford E-150 Econoline Club Wagon

Ford 351W

1979-1984 Ford E-150 Econoline Club Wagon

Ford 302
Ford 351W

1985-1996 Ford E-150 Econoline Club Wagon

Ford 351W

1968-1974 Ford E-200 Econoline

Ford 302

1975 Ford E-250 Econoline

Ford 302
Ford 351W

1976-1978 Ford E-250 Econoline

Ford 351W

1979-1984 Ford E-250 Econoline

Ford 302
Ford 351W

1985-1996 Ford E-250 Econoline

Ford 351W

1975-1978 Ford E-250 Econoline Club Wagon

Ford 351W

1979-1980 Ford E-250 Econoline Club Wagon

Ford 302
Ford 351W

1981-1991 Ford E-250 Econoline Club Wagon

Ford 351W

1968-1974 Ford E-300 Econoline

Ford 302

1975 Ford E-350 Econoline

Ford 302
Ford 351W

1976-1978 Ford E-350 Econoline

Ford 351W

1979-1982 Ford E-350 Econoline

Ford 302
Ford 351W

1983-1996 Ford E-350 Econoline

Ford 351W

1977-1978 Ford E-350 Econoline Club Wagon

Ford 351W

1979-1980 Ford E-350 Econoline Club Wagon

Ford 302
Ford 351W

1981-1996 Ford E-350 Econoline Club Wagon

Ford 351W

1996 Ford Econoline Super Duty

Ford 351W

1975-1976 Ford Elite

Ford 351W

1969-1977 Ford F-100

Ford 302

1978-1979 Ford F-100

Ford 302
Ford 351W

1980 Ford F-100

Ford 302

1981 Ford F-100

Ford 302
Ford 351W

1982-1983 Ford F-100

Ford 302

1975-1977 Ford F-150

Ford 302

1978-1984 Ford F-150

Ford 302
Ford 351W

1985-1996 Ford F-150

Ford 351W

1969-1977 Ford F-250

Ford 302

1978-1984 Ford F-250

Ford 302
Ford 351W

1985-1997 Ford F-250

Ford 351W

1972-1977 Ford F-350

Ford 302

1978-1980 Ford F-350

Ford 302
Ford 351W

1981-1997 Ford F-350

Ford 351W

1963-1967 Ford Fairlane

Ford 289

1968 Ford Fairlane

Ford 289
Ford 302

1969-1970 Ford Fairlane

Ford 302
Ford 351W

1978-1979 Ford Fairmont

Ford 302

1964-1967 Ford Falcon

Ford 289

1968 Ford Falcon

Ford 289
Ford 302

1969-1970 Ford Falcon

Ford 302
Ford 351W

1964-1965 Ford Falcon Sedan Delivery

Ford 289

1963 Ford Ford 300

Ford 289

1963-1967 Ford Galaxie

Ford 289

1963-1967 Ford Galaxie 500

Ford 289

1968 Ford Galaxie 500

Ford 302

1969-1974 Ford Galaxie 500

Ford 302
Ford 351W

1972-1974 Ford Gran Torino

Ford 302
Ford 351W

1975-1976 Ford Gran Torino

Ford 351W

1975-1977 Ford Granada

Ford 302
Ford 351W

1978-1980 Ford Granada

Ford 302

1964-1969 Ford GT40

Ford 289

1965-1967 Ford LTD

Ford 289

1968 Ford LTD

Ford 289
Ford 302

1969-1974 Ford LTD

Ford 302
Ford 351W

1975-1976 Ford LTD

Ford 351W

1977-1984 Ford LTD

Ford 302
Ford 351W

1985-1986 Ford LTD

Ford 351W

1987-1991 Ford LTD Crown Victoria

Ford 351W

1977-1979 Ford LTD II

Ford 302
Ford 351W

1971-1977 Ford Maverick

Ford 302

1964-1967 Ford Mustang

Ford 289

1968 Ford Mustang

Ford 289
Ford 302

1969-1973 Ford Mustang

Ford 302
Ford 351W

1979 Ford Mustang

Ford 302

1982-1984 Ford Mustang

Ford 302

1995 Ford Mustang

Ford 351W

1975-1978 Ford Mustang II

Ford 302

1963-1967 Ford Ranch Wagon

Ford 289

1968 Ford Ranch Wagon

Ford 289
Ford 302

1969-1974 Ford Ranch Wagon

Ford 302
Ford 351W

1960-1961 Ford Ranchero

Ford 289

1965-1967 Ford Ranchero

Ford 289

1968 Ford Ranchero

Ford 289
Ford 302

1969-1974 Ford Ranchero

Ford 302
Ford 351W

1975-1976 Ford Ranchero

Ford 351W

1977-1979 Ford Ranchero

Ford 302
Ford 351W

1964 Ford Sprint

Ford 289

1977-1979 Ford Thunderbird

Ford 302
Ford 351W

1980-1981 Ford Thunderbird

Ford 302

1983-1984 Ford Thunderbird

Ford 302

1968 Ford Torino

Ford 289
Ford 302

1969-1974 Ford Torino

Ford 302
Ford 351W

1975-1976 Ford Torino

Ford 351W

1980 Lincoln Continental

Ford 302

1982-1984 Lincoln Continental

Ford 302

1980-1983 Lincoln Mark VI

Ford 302

1984 Lincoln Mark VII

Ford 302

1981-1984 Lincoln Town Car

Ford 302

1977-1980 Lincoln Versailles

Ford 302

1964-1967 Mercury Caliente

Ford 289

1966-1967 Mercury Capri

Ford 289

1979 Mercury Capri

Ford 302

1982-1984 Mercury Capri

Ford 302

1964-1967 Mercury Comet

Ford 289

1968 Mercury Comet

Ford 289
Ford 302

1969 Mercury Comet

Ford 302

1971-1977 Mercury Comet

Ford 302

1967 Mercury Commuter

Ford 289

1967 Mercury Cougar

Ford 289

1968 Mercury Cougar

Ford 289
Ford 302

1969-1971 Mercury Cougar

Ford 302

1977-1981 Mercury Cougar

Ford 302

1983-1984 Mercury Cougar

Ford 302

1963 Mercury Country Cruiser

Ford 289

1964-1967 Mercury Cyclone

Ford 289

1968 Mercury Cyclone

Ford 289
Ford 302

1969-1971 Mercury Cyclone

Ford 302

1979-1984 Mercury Grand Marquis

Ford 302

1979-1982 Mercury Marquis

Ford 302

1963 Mercury Meteor

Ford 289

1975-1980 Mercury Monarch

Ford 302

1968 Mercury Montego

Ford 289
Ford 302

1969-1974 Mercury Montego

Ford 302

1964-1967 Mercury Villager

Ford 289

1966-1967 Mercury Voyager

Ford 289

1978-1979 Mercury Zephyr

Ford 302

1963-1968 Shelby Cobra

Ford 289
