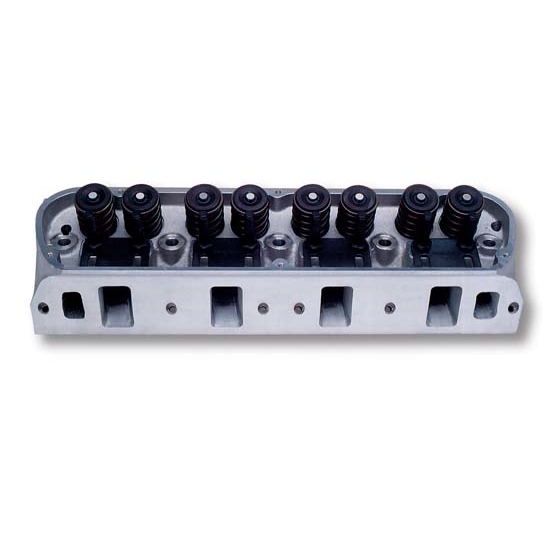

Edelbrock 77169 Victor Jr Cylinder Head, Bare, Ford 289, 302, 351W
Edelbrock 77169 Victor Jr Cylinder Head, Bare, Ford 289, 302, 351W
Edelbrock

|

#32577169

Edelbrock 77169 Victor Jr Cylinder Head, Bare, Ford 289, 302, 351W

$858.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Bare Cylinder Head Style, Aluminum, Natural

    See more details

    Key Specs

    Cylinder Head StyleBare
    Material TypeAluminum
    FinishNatural
    Combustion Chamber Volume60cc
    Intake Runner Volume210cc
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Edelbrock 77169 Details

    Affordable, top quality. 500+ HP potential. High-flow 210cc intake ports. CNC gasket-matched part entries and exits.

    • Bare cylinder head style
    • Affordable; Top Quality
    • 500+ hp Potential
    • High-Flow 210cc Intake Ports
    • CNC Gasket-Matched Part Entries/Exits
    • Spark Plugs/Valves In The Stock Location

    Charts

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CARB warning

    Edelbrock 77169 Specifications

    KEY SPECS
    MFG. Part #77169
    BrandEdelbrock
    Cylinder Head StyleBare
    Material TypeAluminum
    FinishNatural
    Combustion Chamber Volume60cc
    Intake Runner Volume210cc
    GENERAL
    Exhaust Runner Volume75cc
    Combustion Chamber Volume Range60cc - 69cc
    Intake Runner Volume Range210cc - 219cc
    Exhaust Runner Volume Range70cc - 79cc
    CNC-Machined RunnersNo
    CNC-Machined Combustion ChamberNo
    Intake Port ShapeRectangle
    Intake Port LocationStandard
    Exhaust Port ShapeSquare
    Exhaust Port LocationRaised
    Intake Valve Diameter2.05"
    Intake Valves IncludedNo
    Intake Valve Angle20 °
    Exhaust Valve Diameter1.6"
    Exhaust Valves IncludedNo
    Valve Spring IncludedNo
    Damper Spring IncludedNo
    Machined for O-RingNo
    Valve Seats MachinedNo
    Valve Seat MaterialDuctile Iron
    Valve Stem Seals IncludedNo
    Valve Guides IncludedYes
    Valve Guide MaterialManganese Bronze
    Locks IncludedNo
    Retainers IncludedNo
    Guideplates IncludedNo
    Rocker Arms IncludedNo
    Rocker Arm Studs IncludedNo
    Rocker Arm Nuts IncludedNo
    Oiling StyleThrough Pushrod
    Heat CrossoverNo
    Steam Holes DrilledNo
    Accessory Bolt Holes DrilledYes
    Valve Cover Mounting StylePerimeter Bolt
    NotesUses 14mm spark plugs with 3/4" reach, and flat gasket seals
    Sold in QuantityEach
    GTIN Code085347771691

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 289

    • Ford 289

    • Ford 351W

    • Ford 351W

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 351W

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289
