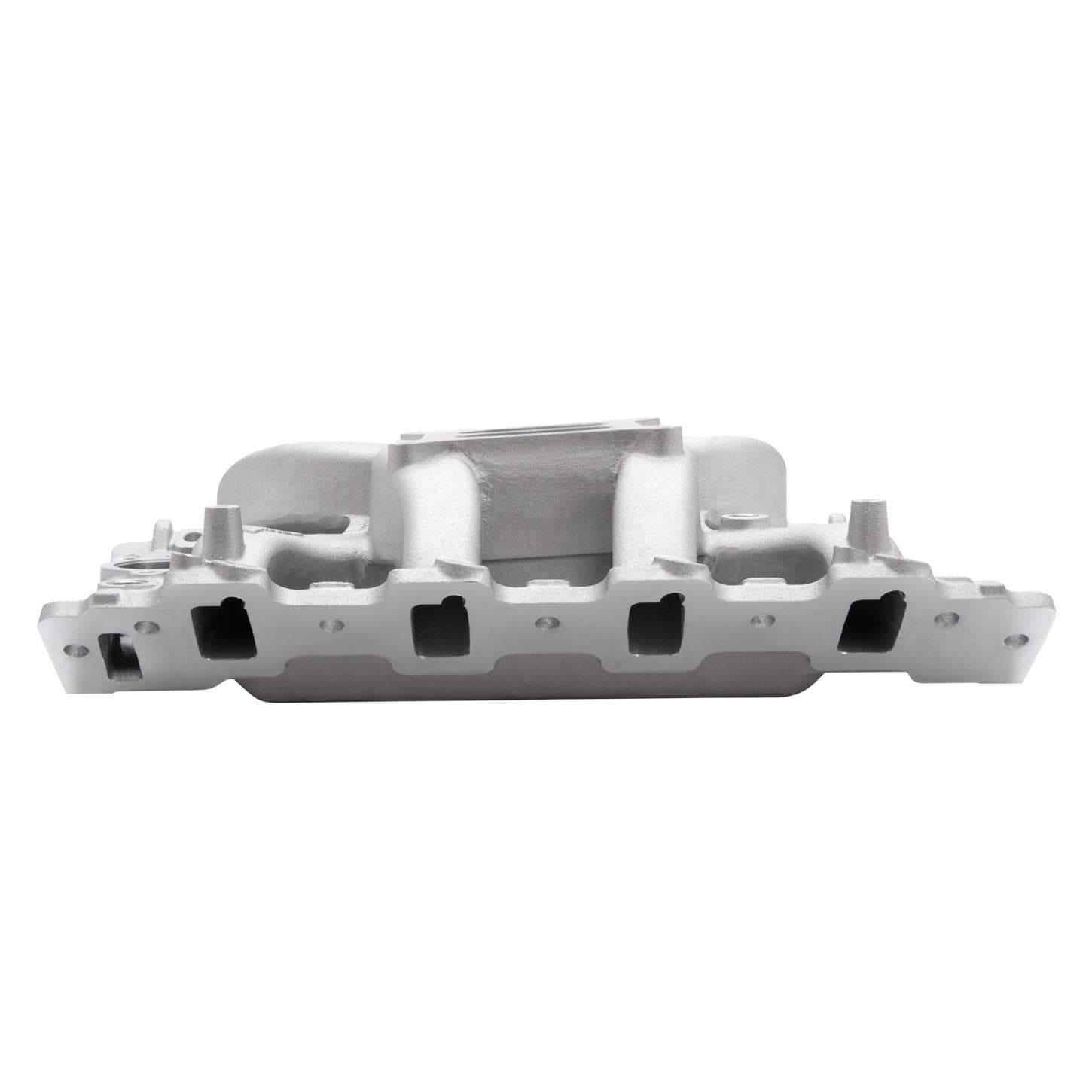

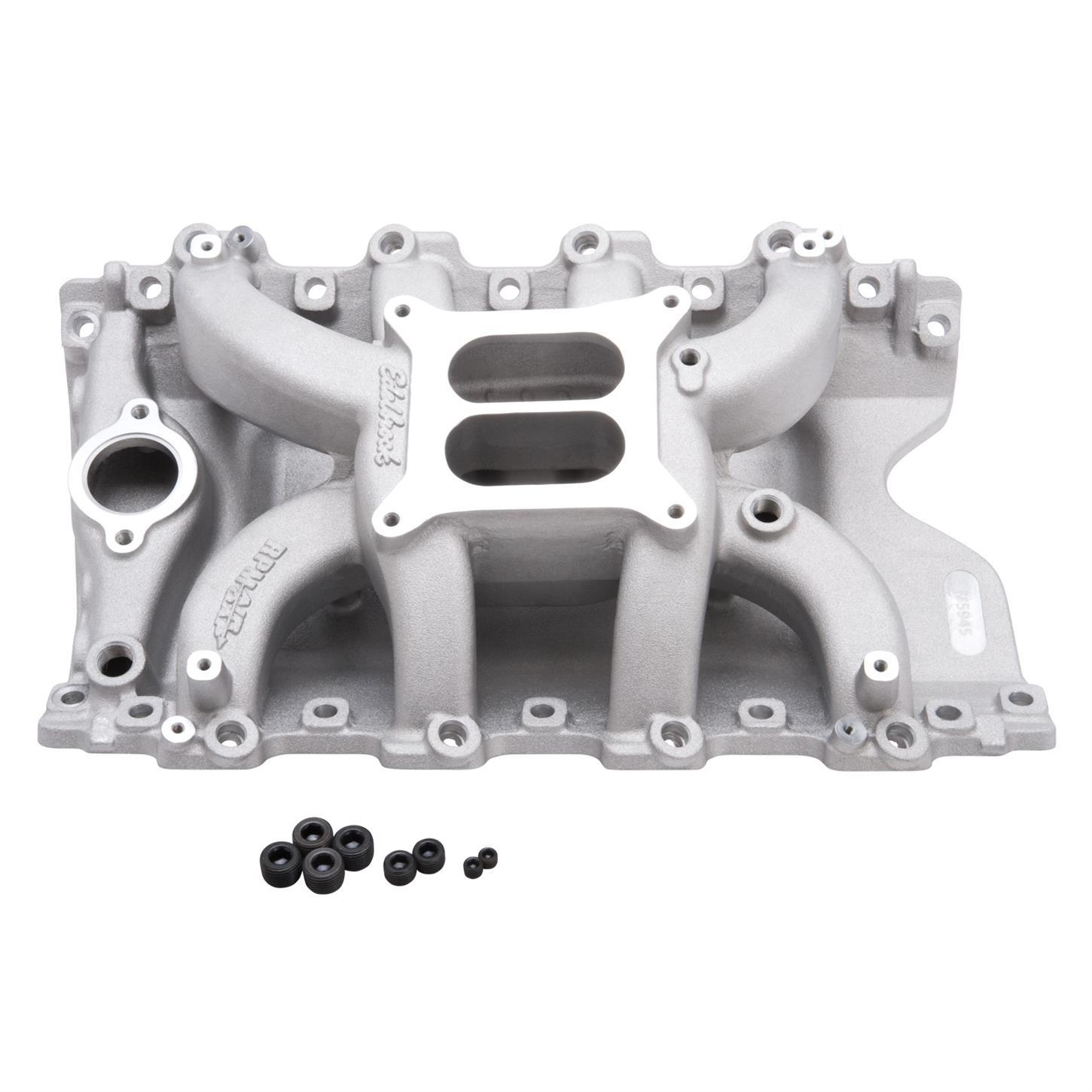

Edelbrock 75945 Performer RPM Air Gap EFI Intake Manifold, Holden
- This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm.
- This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
$860.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Product Summary
Carbureted Fuel System Type, One Carburetor Quantity
- This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm.
- This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
Key Specs
| MFG. Part # | 75945 |
| Intake Manifold Type | Single Plane |
| Carburetor Flange Type | 4-Barrel Dominator |
| RPM Range | 1,500-6,500 |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 75945 Details
Edelbrock 75945 Details
Edelbrock part #75945 RPM Air-Gap EFI intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads.
- This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm.
- This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
Guides & Documents
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
Edelbrock 75945 Specifications
Edelbrock 75945 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 75945 |
| Brand | Edelbrock |
| Intake Manifold Type | Single Plane |
| Carburetor Flange Type | 4-Barrel Dominator |
| RPM Range | 1,500-6,500 |
| Material Type | Aluminum |
| GENERAL | |
| Fuel System Type | Carbureted |
| Injection Style | Direct injection |
| Carburetor Quantity | One |
| EGR | No |
| Intake Section Included | Complete |
| Plenum Material | Aluminum |
| Plenum Finish | Natural |
| Base Finish | Natural |
| Base Material | Aluminum |
| Throttle Body Included | No |
| Injectors Included | No |
| Aftermarket Fuel Rail Required | Yes |
| Fuel Rails Included | No |
| Gaskets Included | No |
| Overall Height | 5.82" |
| Bolt Hole Pattern | 5.375" x 5.375" |
| Runners Included | Yes |
| Runners Removable | No |
| Supplemental Bosses Cast-In | Yes |
| Supplemental Bosses Machined | Yes |
| Supplemental Boss Quantity | 8 |
| Sold in Quantity | Each |
| Notes | This manifold has been designed to fit both stock 1988-1998 Holden EFI style heads and the Edelbrock Holden VN RPM cylinder heads.Do not use high performance or competition type intake gaskets for street application Recommended intake gasket: Stock gasket set or equivalent. |
| GTIN Code | 085347759453 |
