Edelbrock 7585 351W Ford Dual Quad Intake Manifold

#3257585

Edelbrock 7585 351W Ford Dual Quad Intake Manifold

Name: Edelbrock 7585 351W Ford Dual Quad Intake Manifold
Brand: Edelbrock
SKU: 3257585
Price: 595.95 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

1 Question

Specifically designed for 351W small-block Ford V8s
Improves performance in the 1500-6500 rpm range
Unique Air-Gap design that separates the runners from the hot engine providing a cooler, denser charge

$595.95

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Carbureted Fuel System Type, Two Carburetor Quantity

Specifically designed for 351W small-block Ford V8s
Improves performance in the 1500-6500 rpm range
Unique Air-Gap design that separates the runners from the hot engine providing a cooler, denser charge
Carb center spacing is 6-7/16"
Best used with Edelbrock Performer Series, 500 cfm

See more details

Key Specs

MFG. Part #	7585
Intake Manifold Type	Dual Quad
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	1,500-6,500
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 7585 Details

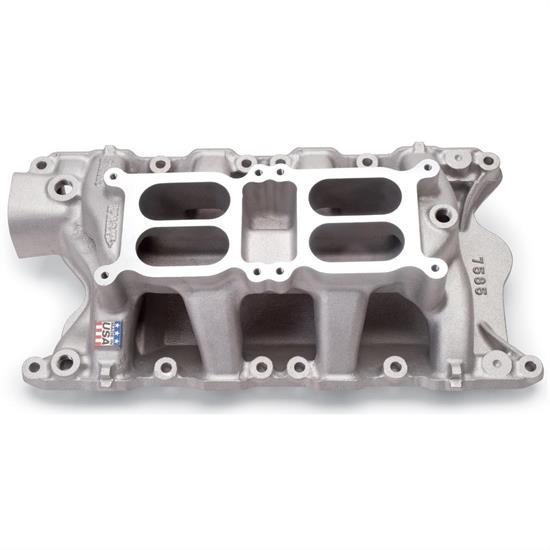

In the '60s, if you wanted the baddest car in town you needed dual quads under the hood, and not much has changed since. This Edelbrock Performer RPM Air-Gap 2x4 manifold is designed for 351W small-block Ford V8s. These intakes are taller, offering performance improvements in the 1500-6500 rpm range. The large volume runners feature the unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower.

Carb center spacing is 6-7/16".

#BBD0E0 »

Charts

325-7585 Instructions (PDF)

Specs

Carburetor Recommendations: Edelbrock Performer Series, 500 cfm
Carb center spacing is 6-7/16"
Manifold height @ front: 4.93"
Manifold height @ rear: 5.56"
Carb pad height: 4.32"
Port exit dimensions: 1.05" x 1.89"

Guides & Documents

Intake Manifolds Installation Instructions (3257585)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 7585 Specifications

KEY SPECS
MFG. Part #	7585
Brand	Edelbrock
Intake Manifold Type	Dual Quad
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	1,500-6,500
Material Type	Aluminum

GENERAL
Fuel System Type	Carbureted
Carburetor Quantity	Two
Finish	Natural
EGR	No
Intake Section Included	Complete
Gaskets Included	No
Overall Height	5.56"
Port Height	1.89"
Port Width	1.05"
Bolt Hole Pattern	5.160" x 5.625"
Sold in Quantity	Each
GTIN Code	085347075850
