Product Summary

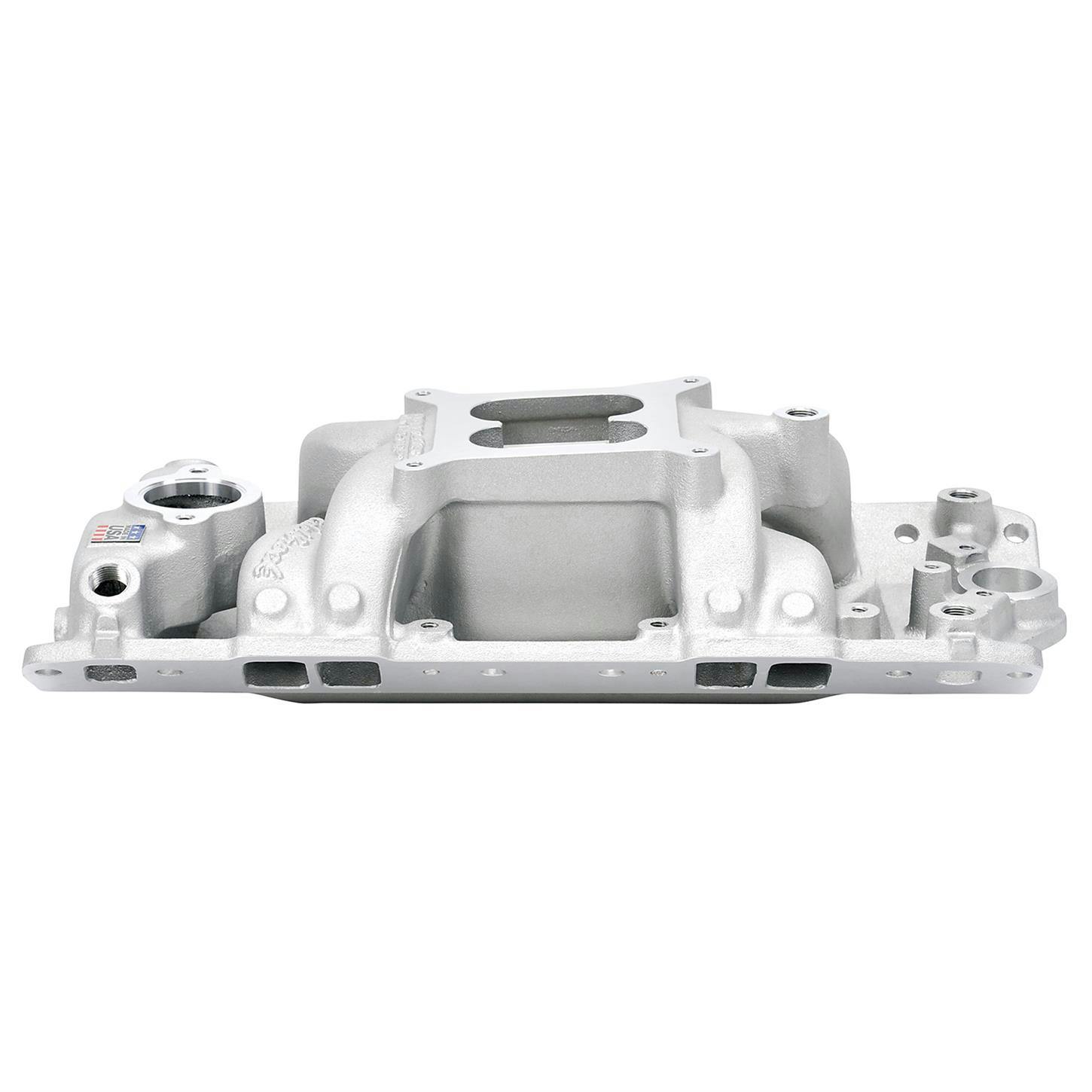

Chevy Small Block V8, Carbureted Fuel System Type

  • Specifically designed for 1955-86 262-400 c.i.d. Chevrolet V8s
  • Heater outlet boss is angled for proper fit over the valve cover
  • Accepts all 1976 and later alternator and A/C brackets for the street
  • Features rear water outlets, two distributor clamp locations and nitrous bosses
  • The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power

Key Specs

MFG. Part #7501
BrandEdelbrock
Material TypeAluminum

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Designed for 1955-86 262-400 c.i.d. Chevrolet V8s, the award-winning RPM Air-Gap incorporates the same race-winning technology that's used on the Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.

Manifold features rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all 1976 and later alternator and A/C brackets for the street. The heater outlet boss is angled for proper fit over the valve cover. The temp sensor boss clears all waternecks.

  • For square-bore carburetors only
  • No provision for exhaust-heated chokes and no exhaust crossover
  • Not for 1987 and later cast iron heads
  • Will not fit under stock Corvette hood

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #7501
BrandEdelbrock
Material TypeAluminum
GENERAL
Fuel System TypeCarbureted
Intake Manifold TypeDual Plane
Carburetor QuantityOne
Carburetor Flange Type4-Barrel Square Bore
RPM Range1,500-6,500
FinishNatural
EGRNo
Intake Section IncludedComplete
Gaskets IncludedNo
Overall Height5.25"
Port Height1.95"
Port Width1.14"
Bolt Hole Pattern5.160" x 5.625"
Sold in QuantityEach
GTIN Code085347075010
