Product Summary

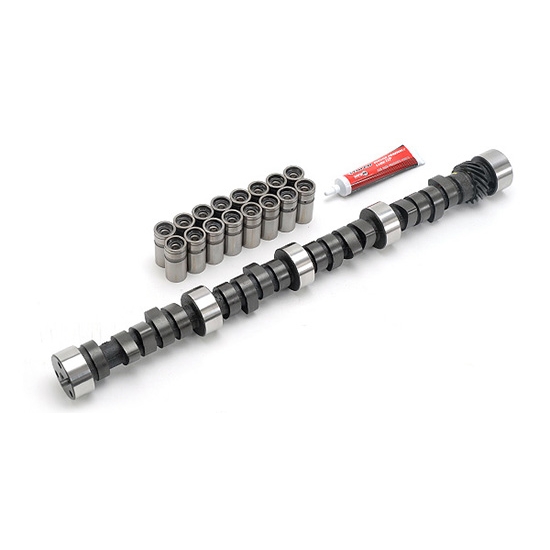

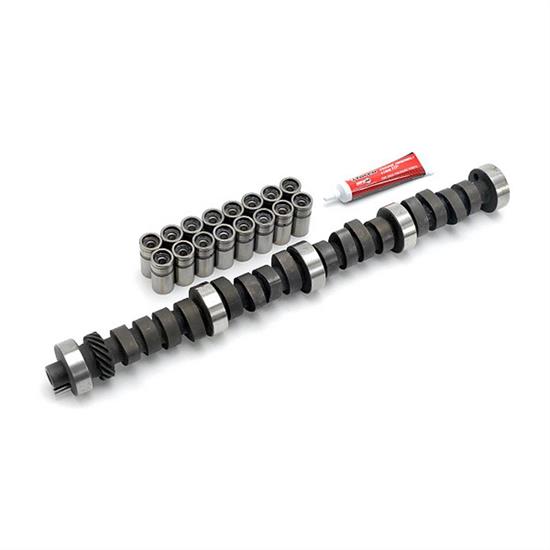

Hydraulic Flat Tappet Camshaft Type, Lifters Included

    See more details

    Key Specs

    Camshaft TypeHydraulic Flat Tappet
    Intake Duration (.050" Lift)234
    Exhaust Duration (.050" Lift)244
    RPM Range1,500-6,500
    Lifter TypeHydraulic Flat Tappet
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

    Edelbrock 7168 Details

    Designed for street high-performance applications, Performer RPM cams provide power from 1500 to 6500 rpm.
    • Designed for 1500 to 6500 Performance
    • Maximum Power in High-RPM with Good Low-End Torque
    • Matched to Edelbrock Performer RPM Intakes
    • 10 to 12 in. of Manifold Vacuum at Idle
    • More Lift and Duration than Most Street Camshafts
    • Includes Hydraulic Lifters and Assembly Lube
    • Dyno Matched/Street Proven Performance
    • Take The Guesswork Out Of Camshaft Selection

    Charts

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

    Edelbrock 7168 Specifications

    KEY SPECS
    MFG. Part #7168
    BrandEdelbrock
    Camshaft TypeHydraulic Flat Tappet
    Intake Duration (.050" Lift)234
    Exhaust Duration (.050" Lift)244
    RPM Range1,500-6,500
    Lifter TypeHydraulic Flat Tappet
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.562"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.588"
    Sold in QuantityKit
    Intake Duration312
    Exhaust Duration322
    GTIN Code085347071685
    External Ignition Box RequiredNo
    Valve Spring RequiredYes
    Valve Spring IncludedNo
    Lifters IncludedYes
    Retainers IncludedNo
    Locks IncludedNo
    Timing Chain and Gears IncludedNo
    Assembly Lubricant IncludedYes
    Pushrods IncludedNo
    Rocker Arms IncludedNo
    NotesAlthough the advertised RPM range for these camshafts is 1,500 to 6,500 rpm, for best performance we recommend a minimum 3,000 rpm stall torque converter be used in applications with automatic transmissions.

    Questions & Answers

    1 Question1 Answer

    What are the specifications for the valve springs required for this cam?

    by Al

    3 years ago

    1 answer

    1 of 1 questions shown

    Fitment

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8

    • 351C Ford 335 Series Cleveland V8
