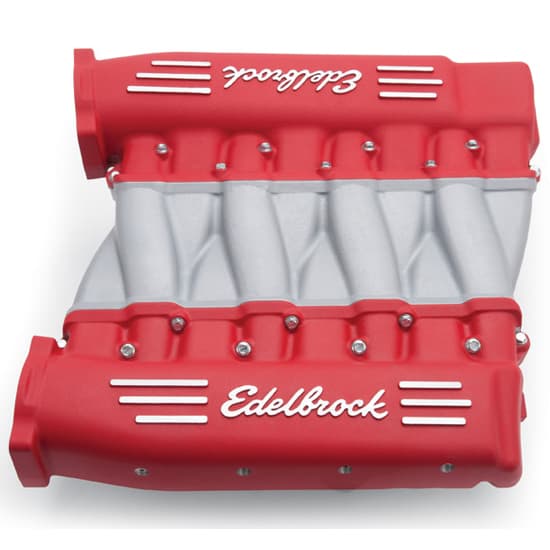

Edelbrock 7141 Cross-Ram LS3 Manifold, Red
Black
$1,795.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| MFG. Part # | 7141 |
| Brand | Edelbrock |
| Intake Manifold Type | Single Plane |
| RPM Range | 1,500-7,000 |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 7141 Details
Edelbrock 7141 Details
Designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The unique cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. Dyno testing resulted with gains of 27 horsepower and 28 ft-lbs. of torque over a popular aftermarket manifold.
- Red in color
- Sold each
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Edelbrock 7141 Specifications
Edelbrock 7141 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 7141 |
| Brand | Edelbrock |
| Intake Manifold Type | Single Plane |
| RPM Range | 1,500-7,000 |
| Material Type | Aluminum |
| GENERAL | |
| Fuel System Type | EFI |
| Injection Style | Multi-port |
| Finish | Natural |
| EGR | No |
| Cylinder Head Configuration | Rectangular Port |
| Throttle Body Bore Size | 90mm |
| Intake Section Included | Complete |
| Plenum Material | Aluminum |
| Plenum Finish | Powdercoated |
| Throttle Body Included | No |
| Injectors Included | No |
| Aftermarket Fuel Rail Required | No |
| Fuel Rails Included | No |
| Gaskets Included | No |
| Overall Height | 9.35" |
| Runners Included | Yes |
| Runners Removable | Yes |
| Supplemental Bosses Cast-In | No |
| Supplemental Bosses Machined | No |
| Sold in Quantity | Each |
| GTIN Code | 085347071418 |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
2014 Cadillac Escalade
GM L94
2014 Cadillac Escalade ESV
GM L94
2007-2011 Chevy Avalanche
GM L76
2010-2014 Chevy Camaro
GM LS3
2008-2013 Chevy Corvette
GM LS3
2014-2017 Chevy SS
GM LS3
2005-2006 Chevy SSR
GM L77
2007-2011 Chevy Suburban 2500
GM L96
2006-2014 GMC Savana 1500
GM L94
2006-2013 GMC Savana 2500
GM L94
2006-2013 GMC Savana 3500
GM L94
2015-2019 GMC Sierra 2500 HD
GM L96
2007 GMC Sierra 3500
GM L96
2007-2011 GMC Sierra 3500 HD
GM L96
2015-2019 GMC Sierra 3500 HD
GM L96
2008-2013 GMC Yukon
GM L94
2012-2014 GMC Yukon XL 1500
GM L96
2012-2013 GMC Yukon XL 2500
GM L96
2009 Pontiac G8
GM LS3
