Product Summary

LQ4, LQ9, LS2, LY6, EFI Fuel System Type, Aluminum

    Key Specs

    MFG. Part #7140
    BrandEdelbrock
    Material TypeAluminum

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

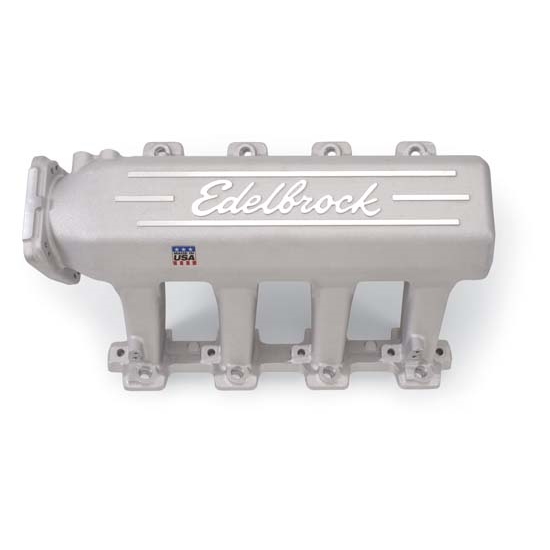

    These Edelbrock Pro-Flo XT EFI intake manifolds feature aluminum construction with a natural finish. They come with equal-length tapered runners and a large plenum designed to increase horsepower and a broad torque curve over the 1,500 to 6,500 rpm range.
    • Designed for 1500 to 7000 Performance
    • Designed To Use LS Throttle Bodies w/O-Ring Groove
    • Large Plenum
    • Long Tapered Runners
    • 90mm. Throttle Body Opening
    • As Cast Finish

    Charts

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #7140
    BrandEdelbrock
    Material TypeAluminum
    GENERAL
    Fuel System TypeEFI
    Injection StyleMulti-port
    Intake Manifold TypeSingle Plane
    RPM Range1,500-7,000
    EGRNo
    Throttle Body Bore Size90mm
    Intake Section IncludedComplete
    Plenum MaterialAluminum
    Plenum FinishNatural
    Throttle Body IncludedNo
    Injectors IncludedNo
    Gaskets IncludedNo
    Overall Height10.2"
    Runners IncludedYes
    Runners RemovableNo
    Supplemental Bosses MachinedYes
    Supplemental Boss Quantity8
    Sold in QuantityEach
    GTIN Code085347071401
