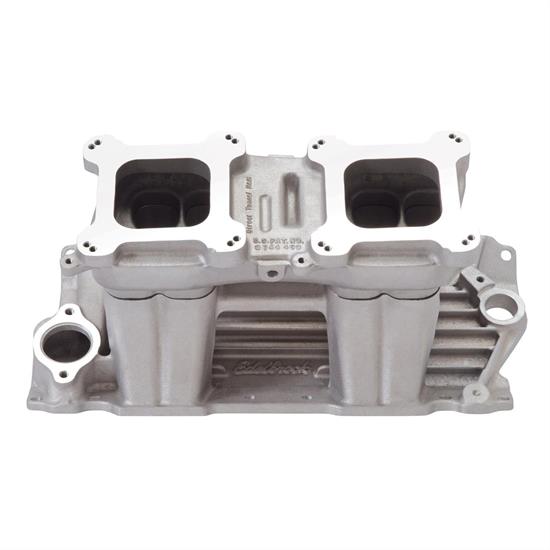

Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold

Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold

Chevy Small Block V8, Chevy Big Block V8, Carbureted Fuel System Type, Two Carburetor Quantity

1 Review | 2 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
X
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Edelbrock 7110 S/B Chevy Street Tunnel Ram Intake Manifold
Zoomed In Image
Part # 3257110
$516.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Designed for 302-327-350-400 c.i.d. small-block Chevy V8s that operate under 7500 RPM
  • Ideal for engines with slightly modified or aftermarket cylinder heads
  • Top has vacuum outlet for power brakes
  • Manifold will accept forward and sideways mounted carbs.
  • Made from aluminum and features a natural finish

Details

Fuel System Type:
Carbureted
Intake Manifold Type:
Tunnel Ram
Carburetor Quantity:
Two
Carburetor Flange Type:
4-Barrel Square Bore
RPM Range:
3,500-7,500
Material Type:
Aluminum
Finish:
Natural
EGR:
No
Intake Section Included:
Complete
Gaskets Included:
No
Overall Height:
9.3"
Port Height:
2.12"
Port Width:
1.12"
Bolt Hole Pattern:
5.160" x 5.625"
MFG. Part #:
7110
Sold in Quantity:
Each
GTIN Code:
085347071104

Info

Edelbrock's Street Tunnel Ram is designed for 302-327-350-400 c.i.d. small-block Chevy V8s operating below 7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified or aftermarket cylinder heads. Applicable to street machines, street rods, pro street and marine. Optimum power range of 3500-7500 rpm.

Will NOT work with 1987-up cast iron heads or HEI distributors. See Notes tab for important install notes.

Notes

  1. Top has vacuum outlet for power brakes.
  2. Manifold will accept forward and sideways mounted carbs.
  3. H.E.I. ignition will not clear manifold.
  4. Not for use with 1987-Later heads due to bolt pattern issues.
  5. Original alternator bracket may not fit; use aftermarket universal brackets as required.
  6. Intake manifold will not accept stock EGR (Exhaust Gas Recirculation) equipment.

CARB RECOMMENDATIONS: Edelbrock Performer Series carb #1404, 500 cfm, Edelbrock Thunder Series AVS Series #1802 (500 cfm) Carburetor, for forward mount only. Holley #0-9776 (450 cfm) - for sideways mount only.

INSTALLATION NOTE: Top has vacuum outlet for power brakes. Manifold will accept forward and sideways mounted carbs. Distance from carb center to carb center: 8.875". H.E.I. ignition will not clear manifold. Recommended intake gasket: Edelbrock #7201. Manifold height (top with bottom): A-9.00", B-9.60"; Carb pad height: 9.30". Port exit dimensions: 1.12" x 2.12".

Specs

  • Port exit dimensions:  1.12" x 2.12"
  • Carb Center-to-Center:  8.875"
  • Overall Height at Front:  9.00"
  • Overall Height at Rear:  9.60"
  • Carb Pad Height:  9.30"
  • Suggested Intake Gasket:  Tru-Seal 910-10206



Charts

325-7110 Instructions (PDF)
