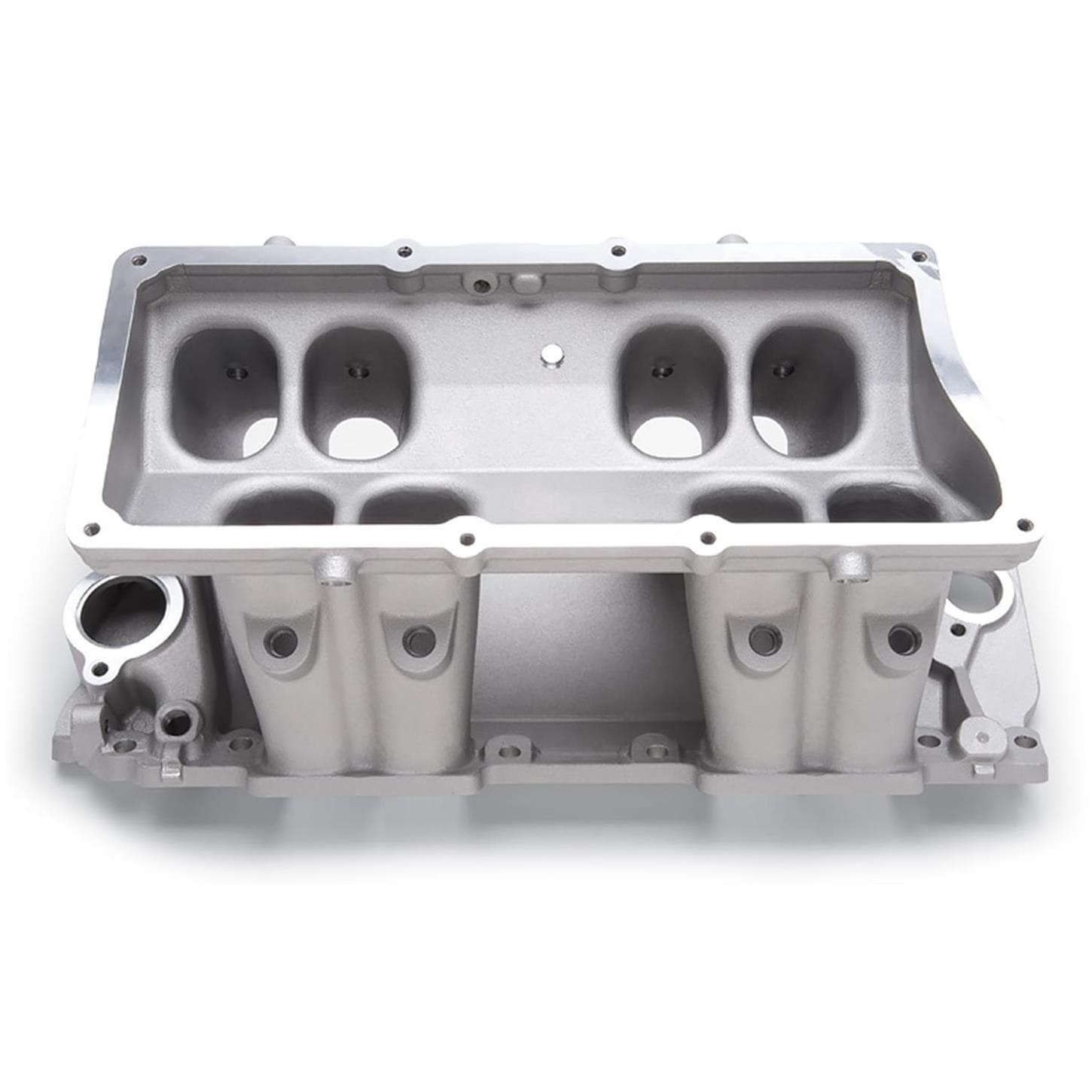

Edelbrock 70855 Victor Tunnel Ram Intake Manifold Base, B/B Chevy

#32570855

Edelbrock 70855 Victor Tunnel Ram Intake Manifold Base, B/B Chevy

It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads.
This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base!
This is the ideal intake manifold for any modern high horsepower demanding application.

Discontinued

This item is currently not available

Shop all Edelbrock Victor Tunnel Ram Intake Manifold Bases

Product Summary

396, 402, 427, 454, EFI Fuel System Type, Aluminum

It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads.
This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base!
This is the ideal intake manifold for any modern high horsepower demanding application.
Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609.

See more details

Key Specs

MFG. Part #	70855
Intake Manifold Type	Hi-Ram
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	4,500-8,500
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 70855 Details

Edelbrock part #70855 Victor EFI Tunnel Ram base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago.

It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads.
This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base!
This is the ideal intake manifold for any modern high horsepower demanding application.
Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609.

Guides & Documents

Intake Manifolds Installation Instructions (32570855)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Edelbrock 70855 Specifications

KEY SPECS
MFG. Part #	70855
Brand	Edelbrock
Intake Manifold Type	Hi-Ram
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	4,500-8,500
Material Type	Aluminum

GENERAL
Fuel System Type	EFI
Injection Style	Multi-port
Finish	Natural
EGR	No
Intake Section Included	Base Only
Plenum Material	Aluminum
Plenum Finish	Natural
Base Finish	Natural
Base Material	Aluminum
Throttle Body Included	No
Injectors Included	No
Aftermarket Fuel Rail Required	Yes
Fuel Rails Included	No
Gaskets Included	No
Bolt Hole Pattern	5.160" x 5.625"
Runners Included	Yes
Runners Removable	No
Supplemental Bosses Cast-In	Yes
Supplemental Bosses Machined	Yes
Supplemental Boss Quantity	8
Sold in Quantity	Each
Notes	Requires the use of an upper manifold.
GTIN Code	085347708550

Ratings & Reviews

Be the first to write a review.

Fitment

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1969-1972 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1969-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1968-1973 Chevy Caprice

Gen 1 L14 Small Block Chevy

1968-1973 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1968-1973 Chevy El Camino

Gen 1 L14 Small Block Chevy

1969-1970 Chevy Estate

Gen 1 L14 Small Block Chevy

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1968-1973 Chevy Impala

Gen 1 L14 Small Block Chevy

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1969-1972 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

Gen 1 L14 Small Block Chevy

1973 Chevy Malibu

Gen 1 L14 Small Block Chevy

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1969-1972 Chevy Townsman

Gen 1 L14 Small Block Chevy

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1967 GMC Suburban

Gen 1 L14 Small Block Chevy
