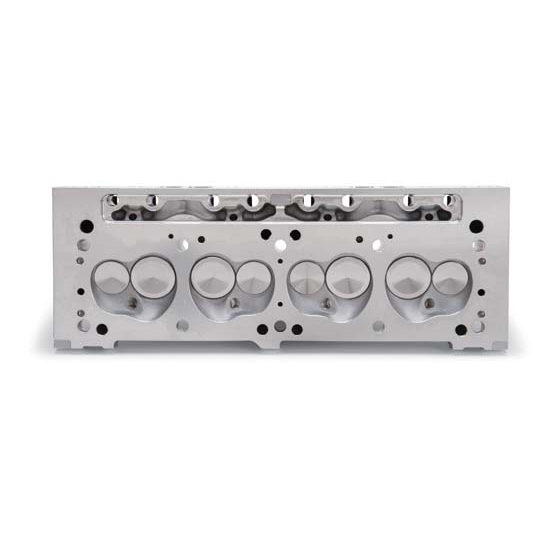

Edelbrock 61775 Performer RPM Cylinder Head, Dodge/Jeep 5.2/5.9L

#32561775

Edelbrock 61775 Performer RPM Cylinder Head, Dodge/Jeep 5.2/5.9L

Name: Edelbrock 61775 Performer RPM Cylinder Head, Dodge/Jeep 5.2/5.9L
Brand: Edelbrock
SKU: 32561775
Price: 1367.95 USD
Availability: InStock

Write a Review

1 Question

$1,367.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Assembled Cylinder Head Style, Aluminum, Natural

See more details

Key Specs

Cylinder Head Style	Assembled
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	58cc
Intake Runner Volume	176cc

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 61775 Details

Direct bolt-on heads for Dodge/Jeep 5.2 and 5.9L Stock and Super Stock racers. No port profiling or bowl blending of ports.

Produces Out-of-the-Box Bolt-On Performance
Stock Magnum Intake/Exhaust Flange/Port Locations
Must Use Adjustable Aftermarket Rocker Arms

Charts

Installation Instructions (PDF)

Guides & Documents

Cylinder Heads Installation Instructions (32561775)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

Edelbrock 61775 Specifications

KEY SPECS
MFG. Part #	61775
Brand	Edelbrock
Cylinder Head Style	Assembled
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	58cc
Intake Runner Volume	176cc

GENERAL
Exhaust Runner Volume	75cc
Combustion Chamber Volume Range	50cc - 59cc
Intake Runner Volume Range	170cc - 179cc
Exhaust Runner Volume Range	70cc - 79cc
CNC-Machined Runners	No
CNC-Machined Combustion Chamber	No
Intake Port Location	Standard
Exhaust Port Location	Standard
Intake Valve Diameter	2.02"
Intake Valves Included	Yes
Intake Valve Angle	18 °
Exhaust Valve Diameter	1.6"
Exhaust Valves Included	Yes
Valve Spring Included	Yes
Spring Diameter	1.46"
Damper Spring Included	Yes
Number of Springs Per Valve	Dual
Maximum Lift	0.600"
Machined for O-Ring	No
Valve Seat Machine Style	3-angle
Valve Seats Machined	Yes
Valve Seat Material	Ductile Iron
Valve Stem Seals Included	Yes
Valve Stem Seal Type	Positive Stop
Valve Guides Included	Yes
Valve Guide Material	Manganese Bronze
Locks Included	Yes
Lock Style	7 Degree
Retainers Included	Yes
Retainer Material	Steel
Guideplates Included	Yes
Guideplate Pushrod Size	0.312"
Rocker Arms Included	No
Rocker Arm Studs Included	Yes
Rocker Arm Nuts Included	No
Oiling Style	Through Head
Heat Crossover	No
Steam Holes Drilled	No
Accessory Bolt Holes Drilled	Yes
Valve Cover Mounting Style	Perimeter Bolt
Notes	Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity	Each
GTIN Code	085347617753

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

It says it is equipped with hydrolic roller springs .my question is what is max valve lift and seat and open pressures?

by wally

• 10 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1975-1980 Chrysler Cordoba

318 LA Engine Mopar
360 Mopar

1981-1983 Chrysler Cordoba

318 LA Engine Mopar

1983-1989 Chrysler Fifth Avenue

318 LA Engine Mopar

1981-1983 Chrysler Imperial

318 LA Engine Mopar

1977 Chrysler LeBaron

318 LA Engine Mopar

1978-1979 Chrysler LeBaron

318 LA Engine Mopar
360 Mopar

1980-1981 Chrysler LeBaron

318 LA Engine Mopar

1977-1978 Chrysler New Yorker

360 Mopar

1979-1980 Chrysler New Yorker

318 LA Engine Mopar
360 Mopar

1981-1982 Chrysler New Yorker

318 LA Engine Mopar

1971-1978 Chrysler Newport

360 Mopar

1979-1980 Chrysler Newport

318 LA Engine Mopar
360 Mopar

1981 Chrysler Newport

318 LA Engine Mopar

1978-1979 Chrysler Town & Country

318 LA Engine Mopar
360 Mopar

1981 Chrysler Town & Country

318 LA Engine Mopar

1970 Dodge A100

318 LA Engine Mopar

1967-1970 Dodge A100 Pickup

318 LA Engine Mopar

1968-1970 Dodge A100 Truck

318 LA Engine Mopar

1976-1980 Dodge Aspen

318 LA Engine Mopar
360 Mopar

1975 Dodge B100

318 LA Engine Mopar

1976-1978 Dodge B100

318 LA Engine Mopar
360 Mopar

1979-1980 Dodge B100

318 LA Engine Mopar

1971-1974 Dodge B100 Van

318 LA Engine Mopar
360 Mopar

1981-1991 Dodge B150

318 LA Engine Mopar

1975-1980 Dodge B200

318 LA Engine Mopar
360 Mopar

1971-1974 Dodge B200 Van

318 LA Engine Mopar
360 Mopar

1981 Dodge B250

318 LA Engine Mopar
360 Mopar

1982-1983 Dodge B250

318 LA Engine Mopar

1984-1991 Dodge B250

318 LA Engine Mopar
360 Mopar

1992-1994 Dodge B250

360 Mopar

1975-1980 Dodge B300

318 LA Engine Mopar
360 Mopar

1971-1974 Dodge B300 Van

318 LA Engine Mopar
360 Mopar

1981-1991 Dodge B350

318 LA Engine Mopar
360 Mopar

1992-1994 Dodge B350

360 Mopar

1973-1980 Dodge CB300

318 LA Engine Mopar
360 Mopar

1970 Dodge Challenger

318 LA Engine Mopar

1971-1974 Dodge Challenger

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge Charger

318 LA Engine Mopar

1971-1978 Dodge Charger

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge Coronet

318 LA Engine Mopar

1971-1976 Dodge Coronet

318 LA Engine Mopar
360 Mopar

1975-1979 Dodge D100

318 LA Engine Mopar
360 Mopar

1986-1988 Dodge D100

318 LA Engine Mopar
360 Mopar

1989 Dodge D100

318 LA Engine Mopar

1968-1970 Dodge D100 Pickup

318 LA Engine Mopar

1971-1974 Dodge D100 Pickup

318 LA Engine Mopar
360 Mopar

1977-1982 Dodge D150

318 LA Engine Mopar
360 Mopar

1983 Dodge D150

318 LA Engine Mopar

1984-1991 Dodge D150

318 LA Engine Mopar
360 Mopar

1993 Dodge D150

360 Mopar

1975-1980 Dodge D200

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge D200 Pickup

318 LA Engine Mopar

1971-1974 Dodge D200 Pickup

318 LA Engine Mopar
360 Mopar

1981-1982 Dodge D250

318 LA Engine Mopar
360 Mopar

1983 Dodge D250

318 LA Engine Mopar

1984-1991 Dodge D250

318 LA Engine Mopar
360 Mopar

1992-1993 Dodge D250

360 Mopar

1975-1980 Dodge D300

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge D300 Pickup

318 LA Engine Mopar

1971-1974 Dodge D300 Pickup

318 LA Engine Mopar
360 Mopar

1981-1983 Dodge D350

318 LA Engine Mopar
360 Mopar

1984-1993 Dodge D350

360 Mopar

1989-1991 Dodge Dakota

318 LA Engine Mopar

1968-1970 Dodge Dart

318 LA Engine Mopar

1971-1976 Dodge Dart

318 LA Engine Mopar
360 Mopar

1977 Dodge Diplomat

318 LA Engine Mopar

1978-1979 Dodge Diplomat

318 LA Engine Mopar
360 Mopar

1980-1989 Dodge Diplomat

318 LA Engine Mopar

1968-1974 Dodge M300

318 LA Engine Mopar

1978-1979 Dodge Magnum

318 LA Engine Mopar
360 Mopar

1970-1974 Dodge MB300

318 LA Engine Mopar

1980 Dodge Mirada

318 LA Engine Mopar
360 Mopar

1981-1983 Dodge Mirada

318 LA Engine Mopar

1968-1970 Dodge Monaco

318 LA Engine Mopar

1971-1978 Dodge Monaco

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge Polara

318 LA Engine Mopar

1971-1973 Dodge Polara

318 LA Engine Mopar
360 Mopar

1974-1981 Dodge Ramcharger

318 LA Engine Mopar
360 Mopar

1982-1983 Dodge Ramcharger

318 LA Engine Mopar

1984-1991 Dodge Ramcharger

318 LA Engine Mopar
360 Mopar

1992-1993 Dodge Ramcharger

360 Mopar

1978-1980 Dodge RD200

318 LA Engine Mopar
360 Mopar

1975 Dodge Royal Monaco

318 LA Engine Mopar
360 Mopar

1976 Dodge Royal Monaco

360 Mopar

1977 Dodge Royal Monaco

318 LA Engine Mopar
360 Mopar

1979-1980 Dodge St. Regis

318 LA Engine Mopar
360 Mopar

1981 Dodge St. Regis

318 LA Engine Mopar

1975-1977 Dodge W100

318 LA Engine Mopar
360 Mopar

1984-1988 Dodge W100

318 LA Engine Mopar
360 Mopar

1989 Dodge W100

318 LA Engine Mopar

1968-1971 Dodge W100 Pickup

318 LA Engine Mopar

1972-1974 Dodge W100 Pickup

318 LA Engine Mopar
360 Mopar

1967 Dodge W100 Series

318 LA Engine Mopar

1977-1981 Dodge W150

318 LA Engine Mopar
360 Mopar

1982-1983 Dodge W150

318 LA Engine Mopar

1984-1991 Dodge W150

318 LA Engine Mopar
360 Mopar

1993 Dodge W150

360 Mopar

1975-1980 Dodge W200

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge W200 Pickup

318 LA Engine Mopar

1971-1974 Dodge W200 Pickup

318 LA Engine Mopar
360 Mopar

1967 Dodge W200 Series

318 LA Engine Mopar

1981-1982 Dodge W250

318 LA Engine Mopar
360 Mopar

1983 Dodge W250

318 LA Engine Mopar

1984-1991 Dodge W250

318 LA Engine Mopar
360 Mopar

1992-1993 Dodge W250

360 Mopar

1975-1978 Dodge W300

318 LA Engine Mopar
360 Mopar

1979 Dodge W300

360 Mopar

1980 Dodge W300

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge W300 Pickup

318 LA Engine Mopar

1971-1974 Dodge W300 Pickup

318 LA Engine Mopar
360 Mopar

1967 Dodge W300 Series

318 LA Engine Mopar

1981 Dodge W350

360 Mopar

1982-1983 Dodge W350

318 LA Engine Mopar
360 Mopar

1984-1993 Dodge W350

360 Mopar

1968-1970 Plymouth Barracuda

318 LA Engine Mopar

1971-1974 Plymouth Barracuda

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Belvedere

318 LA Engine Mopar

1970 Plymouth Cuda

318 LA Engine Mopar

1971-1974 Plymouth Cuda

318 LA Engine Mopar
360 Mopar

1970-1973 Plymouth Duster

318 LA Engine Mopar

1974-1976 Plymouth Duster

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Fury

318 LA Engine Mopar

1971-1978 Plymouth Fury

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Fury I

318 LA Engine Mopar

1971-1974 Plymouth Fury I

318 LA Engine Mopar
360 Mopar

1967-1970 Plymouth Fury II

318 LA Engine Mopar

1971-1974 Plymouth Fury II

318 LA Engine Mopar
360 Mopar

1967-1970 Plymouth Fury III

318 LA Engine Mopar

1971-1974 Plymouth Fury III

318 LA Engine Mopar
360 Mopar

1972-1977 Plymouth Gran Fury

318 LA Engine Mopar
360 Mopar

1980 Plymouth Gran Fury

318 LA Engine Mopar
360 Mopar

1981-1989 Plymouth Gran Fury

318 LA Engine Mopar

1968-1969 Plymouth GTX

318 LA Engine Mopar

1972-1973 Plymouth Roadrunner

318 LA Engine Mopar

1974-1975 Plymouth Roadrunner

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Satellite

318 LA Engine Mopar

1971-1974 Plymouth Satellite

318 LA Engine Mopar
360 Mopar

1971-1976 Plymouth Scamp

318 LA Engine Mopar

1974-1981 Plymouth Trailduster

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Valiant

318 LA Engine Mopar

1971-1974 Plymouth Valiant

318 LA Engine Mopar
360 Mopar

1975 Plymouth Valiant

318 LA Engine Mopar

1976 Plymouth Valiant

318 LA Engine Mopar
360 Mopar

1967 Plymouth VIP

318 LA Engine Mopar

1976-1980 Plymouth Volare

318 LA Engine Mopar
360 Mopar
