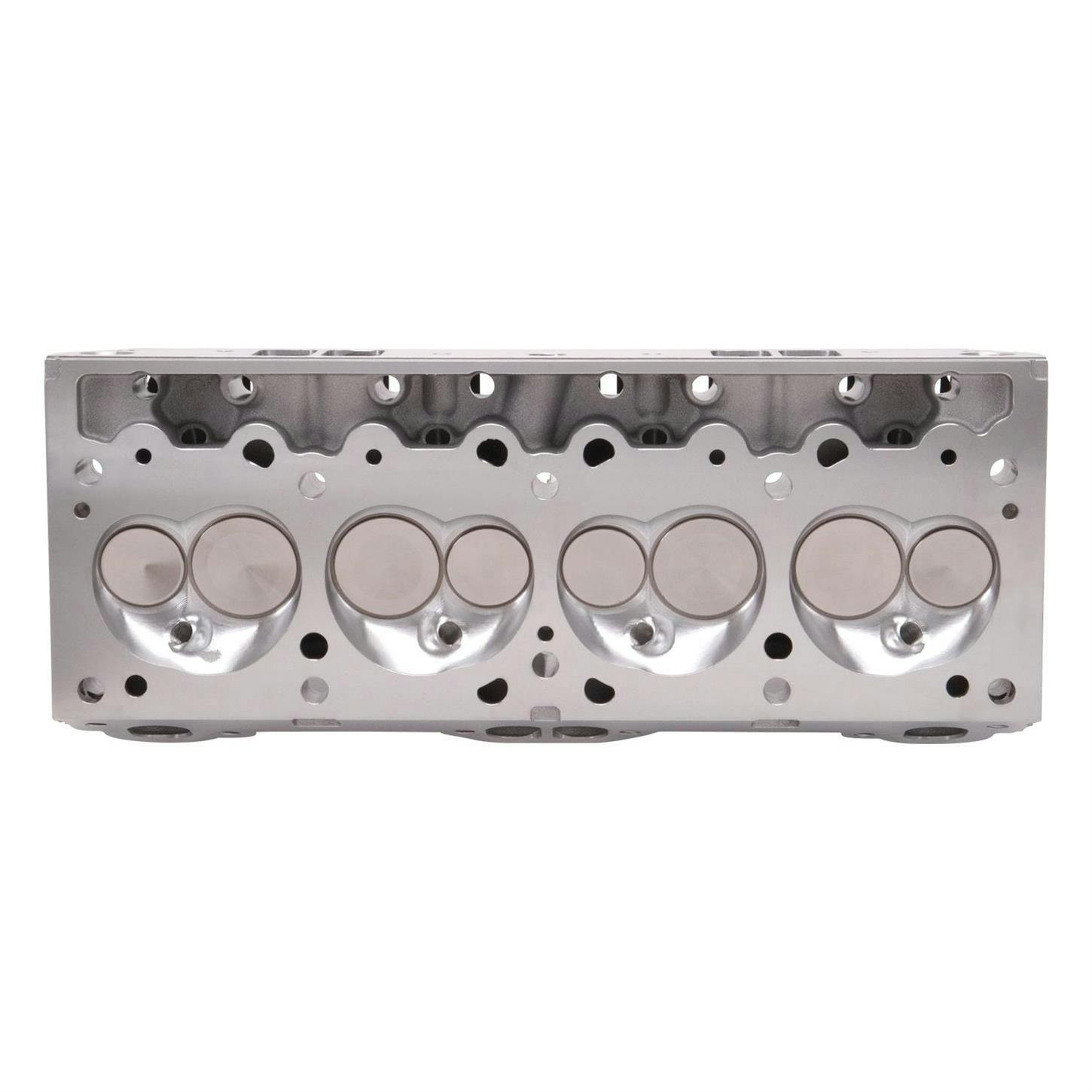

Edelbrock 61579 Performer Cylinder Head, D-Port, 87CC, Pontiac V8
- They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore.
- They feature optimized oil return passages for increased oil flow.
- The spark plug has been relocated closer to the exhaust valve for improved performance.
$1,587.50
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Assembled Cylinder Head Style, Aluminum, Natural
- They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore.
- They feature optimized oil return passages for increased oil flow.
- The spark plug has been relocated closer to the exhaust valve for improved performance.
- This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting.
- Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application.
Key Specs
| Cylinder Head Style | Assembled |
| Material Type | Aluminum |
| Finish | Natural |
| Combustion Chamber Volume | 87cc |
| Intake Runner Volume | 204cc |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 61579 Details
Edelbrock 61579 Details
The Edelbrock #61579 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems.
- They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore.
- They feature optimized oil return passages for increased oil flow.
- The spark plug has been relocated closer to the exhaust valve for improved performance.
- This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting.
- Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application.
- Heat crossover is machined for 50-state emissions legal performance.
Guides & Documents
Edelbrock 61579 Specifications
Edelbrock 61579 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 61579 |
| Brand | Edelbrock |
| Cylinder Head Style | Assembled |
| Material Type | Aluminum |
| Finish | Natural |
| Combustion Chamber Volume | 87cc |
| Intake Runner Volume | 204cc |
| CARB EO# | |
| GENERAL | |
| Exhaust Runner Volume | 145cc |
| Combustion Chamber Volume Range | 80cc - 89cc |
| Intake Runner Volume Range | 200cc - 209cc |
| Exhaust Runner Volume Range | 140cc - 149cc |
| Combustion Chamber Style | Heart |
| CNC-Machined Runners | No |
| CNC-Machined Combustion Chamber | Yes |
| Spark Plug Style | Angle |
| Intake Port Shape | Rectangle |
| Intake Port Location | Standard |
| Exhaust Port Shape | D-port |
| Exhaust Port Location | Standard |
| Intake Valve Diameter | 2.11" |
| Intake Valves Included | Yes |
| Intake Valve Angle | 14 ° |
| Exhaust Valve Diameter | 1.66" |
| Exhaust Valves Included | Yes |
| Valve Spring Included | Yes |
| Spring Diameter | 1.46" |
| Damper Spring Included | Yes |
| Number of Springs Per Valve | Single |
| Maximum Lift | 0.55" |
| Machined for O-Ring | No |
| Valve Seat Machine Style | 3-angle |
| Valve Seats Machined | Yes |
| Valve Seat Material | Ductile Iron |
| Valve Stem Seals Included | Yes |
| Valve Stem Seal Type | Umbrella |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese Bronze |
| Locks Included | Yes |
| Lock Style | 7 Degree |
| Retainers Included | Yes |
| Retainer Material | Steel |
| Guideplates Included | Yes |
| Guideplate Pushrod Size | 0.312" |
| Rocker Arms Included | No |
| Rocker Arm Studs Included | Yes |
| Rocker Arm Nuts Included | No |
| Oiling Style | Through Pushrod |
| Heat Crossover | Yes |
| Steam Holes Drilled | No |
| Accessory Bolt Holes Drilled | Yes |
| Valve Cover Mounting Style | Perimeter Bolt |
| Notes | Designed for 4.060 in and larger bore diameters. Requires Edelbrock head bolt kit EDL-8561 for installation. With springs for hydraulic flat tappet cams. 350 c.i.d. engines may require notching the block for valve clearance. |
| Sold in Quantity | Each |
| GTIN Code | 085347615797 |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1963-1966 Pontiac Bonneville
421 Pontiac V8
1967-1969 Pontiac Bonneville
400 Pontiac V8
428 Pontiac V8
1970-1976 Pontiac Bonneville
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977-1978 Pontiac Bonneville
400 Pontiac V8
1961-1966 Pontiac Catalina
421 Pontiac V8
1967-1969 Pontiac Catalina
400 Pontiac V8
428 Pontiac V8
1970-1976 Pontiac Catalina
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977-1978 Pontiac Catalina
400 Pontiac V8
1967-1969 Pontiac Executive
400 Pontiac V8
428 Pontiac V8
1970 Pontiac Executive
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1967-1969 Pontiac Firebird
400 Pontiac V8
1970-1976 Pontiac Firebird
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977-1979 Pontiac Firebird
400 Pontiac V8
1973-1975 Pontiac Grand Am
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1975-1976 Pontiac Grand LeMans
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977 Pontiac Grand LeMans
400 Pontiac V8
1963-1966 Pontiac Grand Prix
421 Pontiac V8
1967-1969 Pontiac Grand Prix
400 Pontiac V8
428 Pontiac V8
1970-1976 Pontiac Grand Prix
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977 Pontiac Grand Prix
400 Pontiac V8
1971-1976 Pontiac Grand Safari
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977-1978 Pontiac Grand Safari
400 Pontiac V8
1971 Pontiac Grandville
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1972-1975 Pontiac Grandville
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1964-1965 Pontiac GTO
421 Pontiac V8
1967-1969 Pontiac GTO
400 Pontiac V8
1970-1973 Pontiac GTO
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1967-1969 Pontiac LeMans
400 Pontiac V8
428 Pontiac V8
1970-1974 Pontiac LeMans
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1975 Pontiac LeMans
400 Pontiac V8
1976 Pontiac LeMans
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1977 Pontiac LeMans
400 Pontiac V8
1963-1966 Pontiac Star Chief
421 Pontiac V8
1967-1969 Pontiac Tempest
400 Pontiac V8
428 Pontiac V8
1970 Pontiac Tempest
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V
1961 Pontiac Ventura
421 Pontiac V8
