#32560679

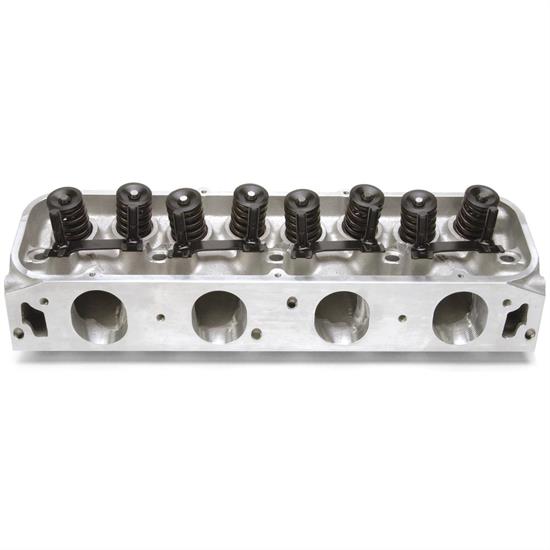

Edelbrock 60679 Performer RPM Cylinder Head, 75 cc, Ford, 429, 460
$1,338.50
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 22nd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
429, 460, Assembled Cylinder Head Style, Aluminum
See more details
Key Specs
Cylinder Head Style | Assembled |
Material Type | Aluminum |
Finish | Natural |
Combustion Chamber Volume | 75cc |
Intake Runner Volume | 292cc |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Direct bolt-on assembled cylinder heads for Big Block Ford 429 and 460 engines and Super Stock racers. No port profiling or bowl blending of ports. They offer improved power for greater throttle response and top-end power throughout the rpm range.
- Out-of-the-Box Bolt-On Performance
- Ideal For High Performance Street
- Ideal For Drag Racing
- Ideal For Marine Applications
- Over 500+ At 6500 RPM
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Specifications
Specifications
KEY SPECS | |
---|---|
Brand | Edelbrock |
Cylinder Head Style | Assembled |
Material Type | Aluminum |
Finish | Natural |
Combustion Chamber Volume | 75cc |
Intake Runner Volume | 292cc |
GENERAL | |
Speedway Motors Catalog Part # | 325-60679 |
Exhaust Runner Volume | 100cc |
Combustion Chamber Volume Range | 70cc - 79cc |
Intake Runner Volume Range | 290cc - 299cc |
Exhaust Runner Volume Range | 100cc - 109cc |
CNC-Machined Runners | No |
CNC-Machined Combustion Chamber | No |
Intake Port Location | Standard |
Exhaust Port Location | Standard |
Intake Valve Diameter | 2.19" |
Intake Valves Included | Yes |
Intake Valve Angle | 18.7 |
Exhaust Valve Diameter | 1.76" |
Exhaust Valves Included | Yes |
Exhaust Valve Angle | 16.7 |
Valve Spring Included | Yes |
Spring Diameter | 1.54" |
Damper Spring Included | No |
Number of Springs Per Valve | Dual |
Maximum Lift | 0.700" |
Machined for O-Ring | No |
Valve Seat Machine Style | 3-angle |
Valve Seats Machined | Yes |
Valve Seat Material | Ductile Iron |
Valve Stem Seals Included | Yes |
Valve Stem Seal Type | Positive Stop |
Valve Guides Included | Yes |
Valve Guide Material | Manganese Bronze |
Locks Included | Yes |
Lock Style | 7 Degree |
Retainers Included | Yes |
Retainer Material | Steel |
Guideplates Included | Yes |
Guideplate Pushrod Size | 0.375" |
Rocker Arms Included | No |
Rocker Arm Studs Included | Yes |
Rocker Arm Nuts Included | No |
Oiling Style | Through Pushrod |
Heat Crossover | No |
Steam Holes Drilled | No |
Accessory Bolt Holes Drilled | Yes |
Valve Cover Mounting Style | Perimeter Bolt |
Notes | Uses 14mm spark plugs with 3/4" reach, and flat gasket seals |
Sold in Quantity | Each |
GTIN Code | 085347606795 |
