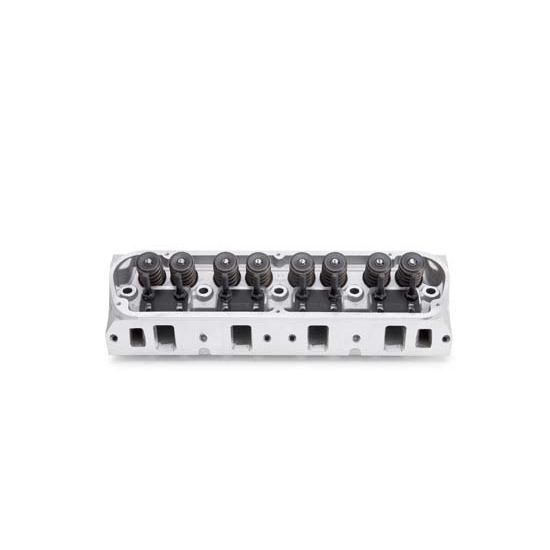

Edelbrock 60229 Performer RPM Cylinder Head, Ford 289, 302, 351W
$1,022.50
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| Cylinder Head Style | Assembled |
| Material Type | Aluminum |
| Finish | Natural |
| Combustion Chamber Volume | 60cc |
| Intake Runner Volume | 170cc |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 60229 Details
Edelbrock 60229 Details
- Out-of-the-Box Bolt-On Performance
- Maximum Performance From Idle through Mid-Range
- Intake valves are for use with stock pistons
- Designed For Non-Emissions
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Edelbrock 60229 Specifications
Edelbrock 60229 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 60229 |
| Brand | Edelbrock |
| Cylinder Head Style | Assembled |
| Material Type | Aluminum |
| Finish | Natural |
| Combustion Chamber Volume | 60cc |
| Intake Runner Volume | 170cc |
| GENERAL | |
| Exhaust Runner Volume | 60cc |
| Combustion Chamber Volume Range | 60cc - 69cc |
| Intake Runner Volume Range | 170cc - 179cc |
| Exhaust Runner Volume Range | 60cc - 69cc |
| CNC-Machined Runners | No |
| CNC-Machined Combustion Chamber | No |
| Intake Port Location | Standard |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Standard |
| Intake Valve Diameter | 1.9" |
| Intake Valves Included | Yes |
| Intake Valve Angle | 20 ° |
| Exhaust Valve Diameter | 1.6" |
| Exhaust Valves Included | Yes |
| Valve Spring Included | Yes |
| Spring Diameter | 1.46" |
| Damper Spring Included | Yes |
| Number of Springs Per Valve | Single |
| Maximum Lift | 0.575" |
| Machined for O-Ring | No |
| Valve Seat Machine Style | 3-angle |
| Valve Seats Machined | Yes |
| Valve Seat Material | Powdered Metal |
| Valve Stem Seals Included | Yes |
| Valve Stem Seal Type | Positive Stop |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese Bronze |
| Locks Included | Yes |
| Lock Style | 7 Degree |
| Retainers Included | Yes |
| Retainer Material | Steel |
| Guideplates Included | Yes |
| Guideplate Pushrod Size | 0.312" |
| Rocker Arms Included | No |
| Rocker Arm Studs Included | Yes |
| Rocker Arm Nuts Included | No |
| Oiling Style | Through Pushrod |
| Heat Crossover | No |
| Steam Holes Drilled | No |
| Accessory Bolt Holes Drilled | Yes |
| Valve Cover Mounting Style | Perimeter Bolt |
| Notes | Uses 14mm spark plugs with 3/4" reach, and flat gasket seals |
| Sold in Quantity | Each |
| GTIN Code | 085347602292 |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1964 AC Shelby Cobra
Ford 289
1968-1973 AC Shelby Cobra
Ford 289
1967 DeTomaso Mangusta
Ford 289
1963 Ford 300
Ford 289
1966-1968 Ford Bronco
Ford 289
1963-1967 Ford Club Wagon
Ford 289
1963-1968 Ford Country Sedan
Ford 289
1963-1968 Ford Country Squire
Ford 289
1964-1968 Ford Custom
Ford 289
1964-1968 Ford Custom 500
Ford 289
1963-1968 Ford Fairlane
Ford 289
1964-1968 Ford Falcon
Ford 289
1964-1965 Ford Falcon Sedan Delivery
Ford 289
1963 Ford Ford 300
Ford 289
1963-1967 Ford Galaxie
Ford 289
1963-1967 Ford Galaxie 500
Ford 289
1964-1969 Ford GT40
Ford 289
1965-1968 Ford LTD
Ford 289
1964-1968 Ford Mustang
Ford 289
1963-1968 Ford Ranch Wagon
Ford 289
1960-1961 Ford Ranchero
Ford 289
1965-1968 Ford Ranchero
Ford 289
1964 Ford Sprint
Ford 289
1968 Ford Torino
Ford 289
1964-1967 Mercury Caliente
Ford 289
1966-1967 Mercury Capri
Ford 289
1964-1968 Mercury Comet
Ford 289
1967 Mercury Commuter
Ford 289
1967-1968 Mercury Cougar
Ford 289
1963 Mercury Country Cruiser
Ford 289
1964-1968 Mercury Cyclone
Ford 289
1963 Mercury Meteor
Ford 289
1968 Mercury Montego
Ford 289
1964-1967 Mercury Villager
Ford 289
1966-1967 Mercury Voyager
Ford 289
1963-1968 Shelby Cobra
Ford 289
