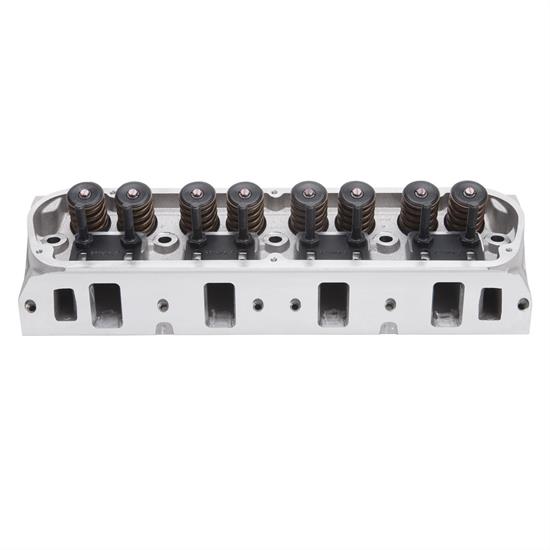

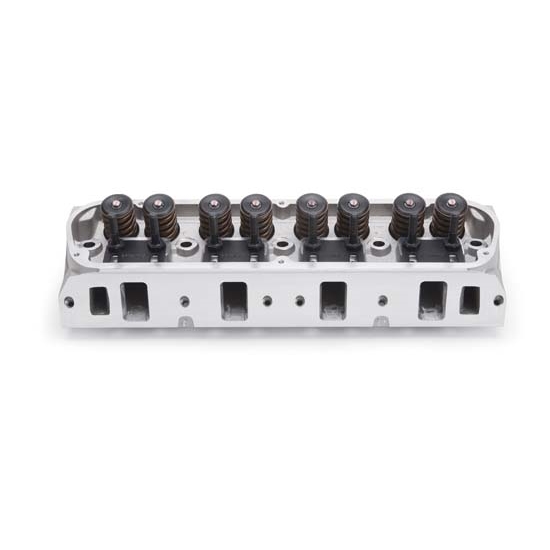

Edelbrock 60225 Performer RPM Cylinder Head, Ford 289, 302, 351W
Edelbrock 60225 Performer RPM Cylinder Head, Ford 289, 302, 351W
Edelbrock

|

#32560225

Edelbrock 60225 Performer RPM Cylinder Head, Ford 289, 302, 351W

$1,157.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Assembled Cylinder Head Style, Aluminum, Natural

    See more details

    Key Specs

    Cylinder Head StyleAssembled
    Material TypeAluminum
    FinishNatural
    Combustion Chamber Volume60cc
    Intake Runner Volume170cc
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Edelbrock 60225 Details

    Direct bolt-on heads for Ford 289, 302, and 351W Stock and Super Stock racers. No port profiling or bowl blending of ports.
    • Out-of-the-Box Bolt-On Performance
    • Valves Promote Excellent Flow For Streetable Power

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    Edelbrock 60225 Specifications

    KEY SPECS
    MFG. Part #60225
    BrandEdelbrock
    Cylinder Head StyleAssembled
    Material TypeAluminum
    FinishNatural
    Combustion Chamber Volume60cc
    Intake Runner Volume170cc
    GENERAL
    Exhaust Runner Volume60cc
    Combustion Chamber Volume Range60cc - 69cc
    Intake Runner Volume Range170cc - 179cc
    Exhaust Runner Volume Range60cc - 69cc
    CNC-Machined RunnersNo
    CNC-Machined Combustion ChamberNo
    Intake Port LocationStandard
    Exhaust Port ShapeSquare
    Exhaust Port LocationStandard
    Intake Valve Diameter1.9"
    Intake Valves IncludedYes
    Intake Valve Angle20 °
    Exhaust Valve Diameter1.6"
    Exhaust Valves IncludedYes
    Valve Spring IncludedYes
    Spring Diameter1.46"
    Damper Spring IncludedYes
    Number of Springs Per ValveDual
    Maximum Lift0.600"
    Machined for O-RingNo
    Valve Seat Machine Style3-angle
    Valve Seats MachinedYes
    Valve Seat MaterialPowdered Metal
    Valve Stem Seals IncludedYes
    Valve Stem Seal TypePositive Stop
    Valve Guides IncludedYes
    Valve Guide MaterialManganese Bronze
    Locks IncludedYes
    Lock Style7 Degree
    Retainers IncludedYes
    Retainer MaterialSteel
    Guideplates IncludedYes
    Guideplate Pushrod Size0.312"
    Rocker Arms IncludedNo
    Rocker Arm Studs IncludedYes
    Rocker Arm Nuts IncludedNo
    Oiling StyleThrough Pushrod
    Heat CrossoverNo
    Steam Holes DrilledNo
    Accessory Bolt Holes DrilledYes
    Valve Cover Mounting StylePerimeter Bolt
    NotesUses 14mm spark plugs with 3/4" reach, and flat gasket seals
    Sold in QuantityEach
    GTIN Code085347602254

    Ratings & Reviews

    5

    1 Review

    Write A Review

    5

    1 reviews

    5

    1

    4

    0

    3

    0

    2

    0

    1

    0

    Filter by Ratings

    This is my last build. I want to drive em not build em

    5.0

    4 years ago

    I have no nick name

    in the woods

    Verified

    The use of the product is out there away. When the other projects are complete then this engine 289. will be built.

    Would Recommend

    Showing 1 of 1 reviews

    Questions & Answers

    2 Questions • 2 Answers

    Will these head's work on a 1969 351w with stock 2v pistons and a cam with less than 550 lift

    by RC

    • 2 years ago

    1 answer

    View Answer

    Mild hydraulic roller cam compatibility?

    by GERALDO

    • 7 years ago

    1 answer

    View Answer

    2 of 2 questions shown
