Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

    See more details

    Key Specs

    Camshaft TypeHydraulic Flat Tappet
    Intake Duration (.050" Lift)204
    Exhaust Duration (.050" Lift)214
    RPM RangeIdle-5,500
    Lifter TypeHydraulic Flat Tappet
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

    Edelbrock 5487 Details

    Designed for optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
    • Designed for Optimum Torque and Acceleration
    • Maximum Performance From Idle through Mid-Range
    • Matched To Performer Intake PN[5486]

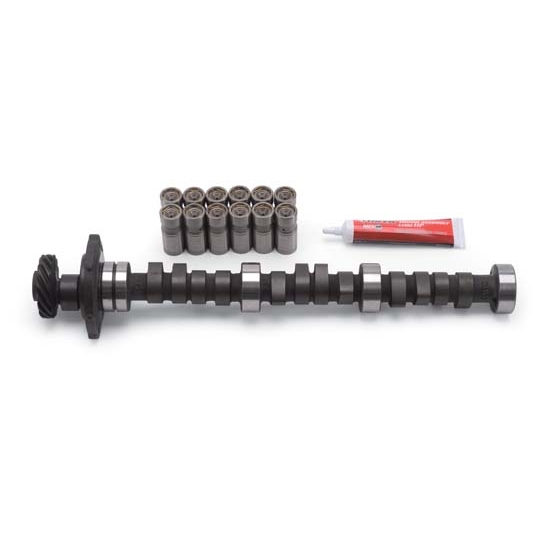

    • Includes Hydraulic Lifters and Assembly Lube
    • Major Improvement in Throttle Response and Torque
    • Use For Daily Drivers/Trucks/Vans/RVs/4x4s
    • Take The Guesswork Out Of Camshaft Selection

    Charts

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

    Edelbrock 5487 Specifications

    KEY SPECS
    MFG. Part #5487
    BrandEdelbrock
    Camshaft TypeHydraulic Flat Tappet
    Intake Duration (.050" Lift)204
    Exhaust Duration (.050" Lift)214
    RPM RangeIdle-5,500
    Lifter TypeHydraulic Flat Tappet
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.448"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.472 in.
    Sold in QuantityKit
    Intake Duration280
    Exhaust Duration290
    GTIN Code085347054879
    External Ignition Box RequiredNo
    Valve Spring RequiredYes
    Valve Spring IncludedNo
    Lifters IncludedYes
    Retainers IncludedNo
    Locks IncludedNo
    Timing Chain and Gears IncludedNo
    Assembly Lubricant IncludedYes
    Rocker Arms IncludedNo

    Questions & Answers

    Fitment

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 4.1 Buick Even Fire V6

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 4.1 Buick Even Fire V6

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 4.1 Buick Even Fire V6

    • Buick 231

    • Buick 231

    • Buick 231

    • 4.1 Buick Even Fire V6

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 4.1 Buick Even Fire V6

    • 4.1 Buick Even Fire V6

    • 231 Buick Odd Fire V6
